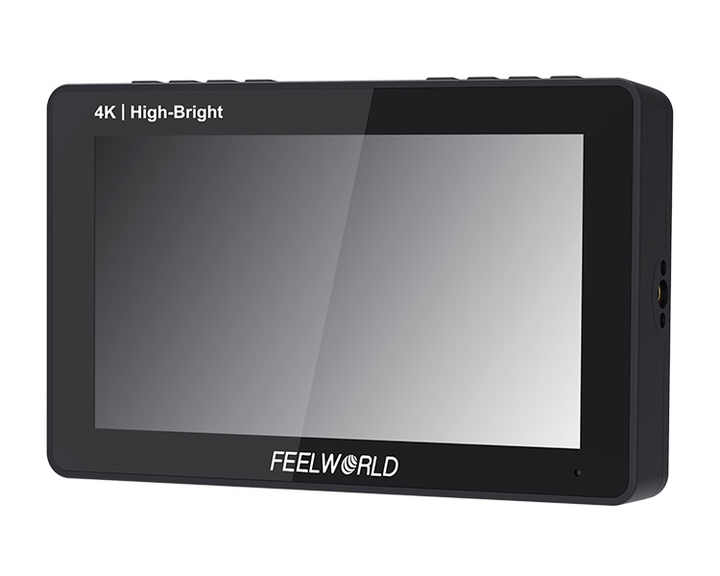

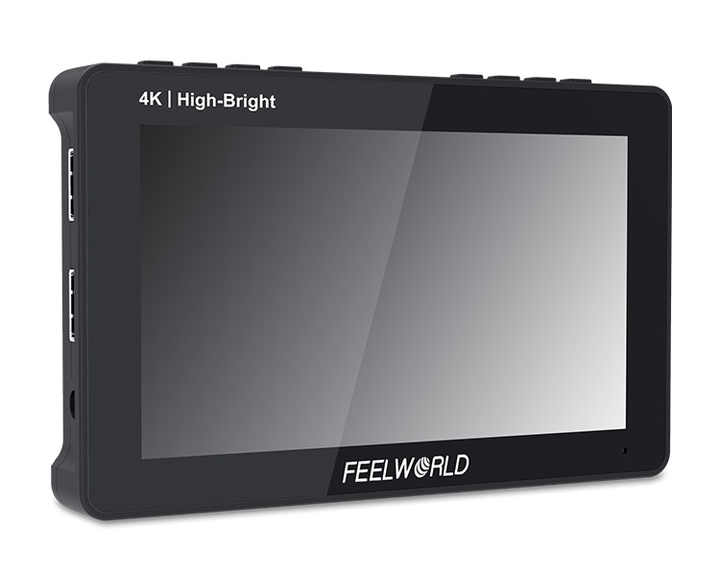

productFEELWORLD 6 inch 4K high brightness on camera field monitor with HDMI input and output
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
Basic Info.Product Description

Basic Info.

Place of OriginChina
Featurehigh brightness
Brand NameFEELWORLD
Model NumberF5PROX
Private MoldYes
ColorBlack
Screen Size6
Resolution1920*1080
Aspect Ratio16:9
Brightness1600nit
Contrast Ratio1000:1
Backlit typeLED
Panel TypeTFT
Horizontal Viewing Angle80°/80°(L/R) 80°/80°(U/D)
Pixel Pitch0.069 (H) x 0.069 (V) mm
Screen TypeIPS
Vertical Viewing Angle80°/80°(L/R) 80°/80°(U/D)

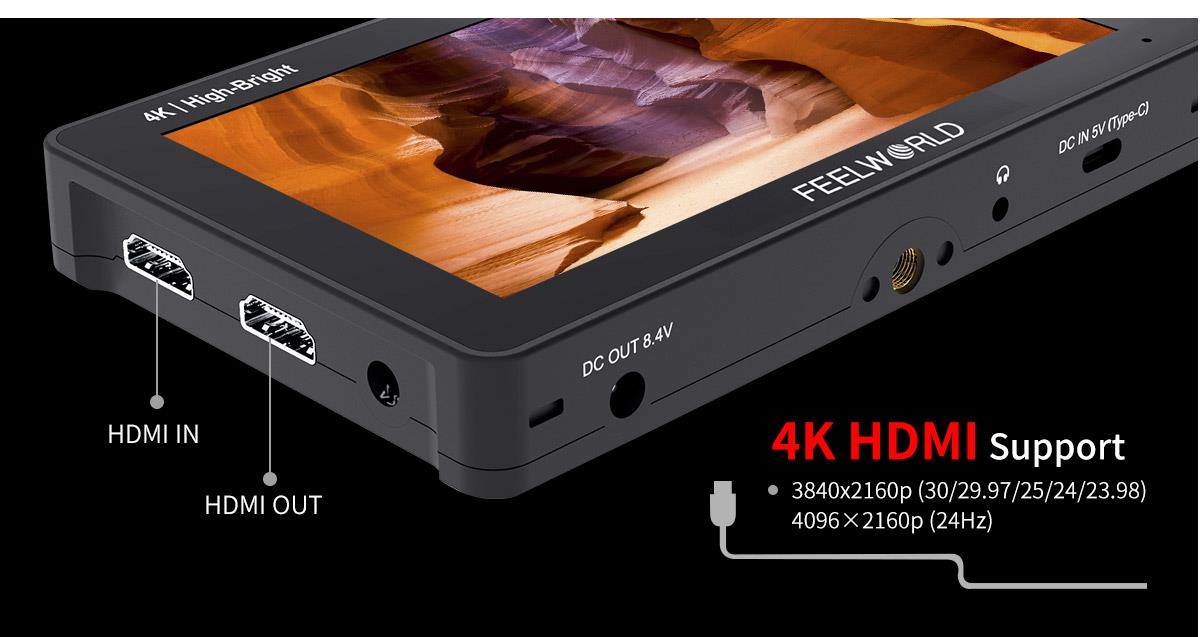

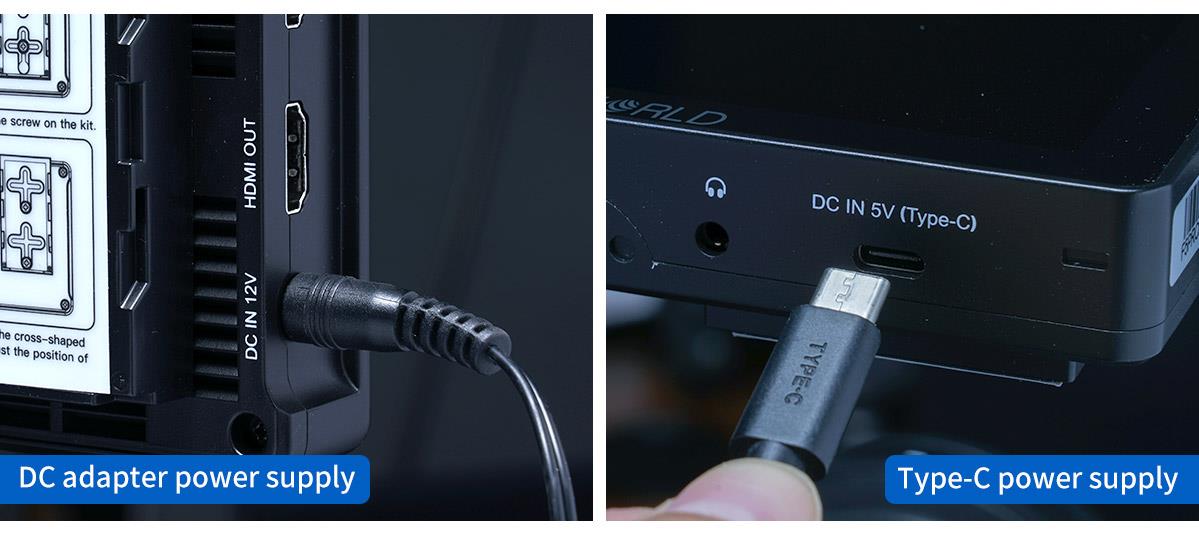

InputHDMI, Type-C 5V In
OutputHDMI, DC OUT 8.4V, Barrel
AudioStereo Headphone,
Screen Size5.5" IPS Touch Screen
Resolution1920x1080 pixels
Pixel Pitch0.069 (H) x 0.069 (V) mm
Aspect Ratio16:9
Brightness1600cd/m²
Contrast Ratio1000:1
BacklightLED
Viewing Angle80°/80°(L/R) 80°/80°(U/D)
Keywordshigh brightness on camera monitor
InputHDMI,5V Type-C
Selling Units:Single item
Single package size:50.3X30.5X23 cm
Single gross weight:1.200 kg

Product Description

Product Description
detail
Preview
detail
Preview
detail
Preview

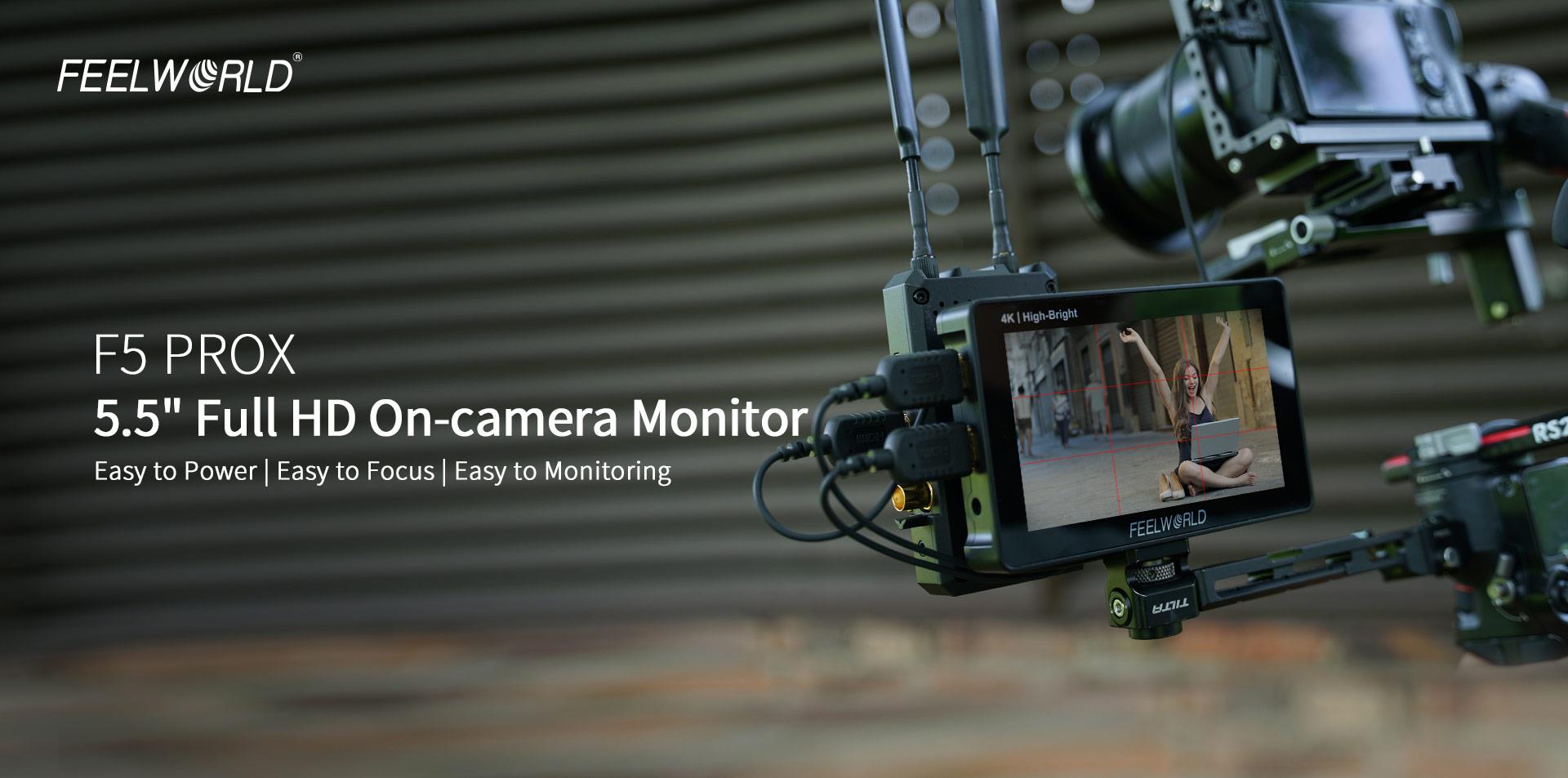

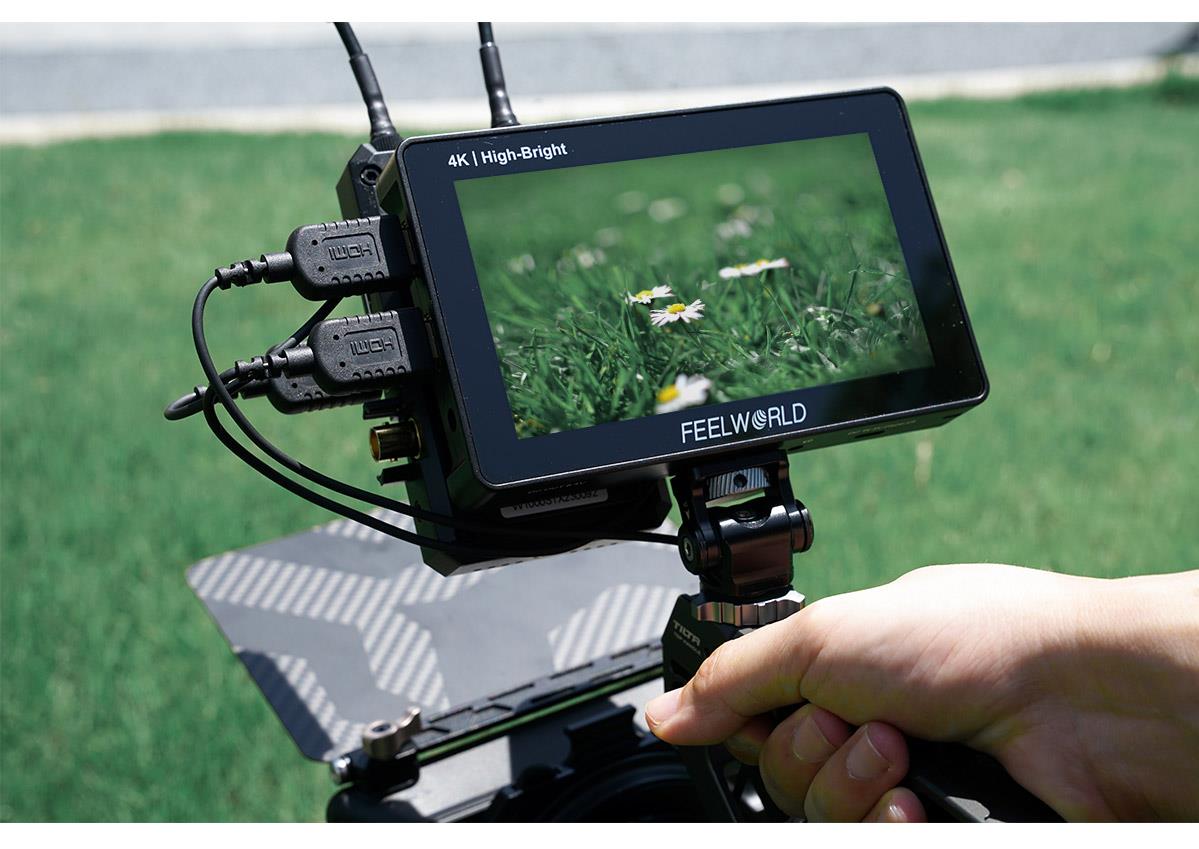

5.5" 4K HDMI Field MonitorCompact, portable,high brightness, 4K HDMI, easy to focus, accurate expose,flexible power are the advantages of F5 PROX.Level upcreation for photographer, 1st AC and content creator.

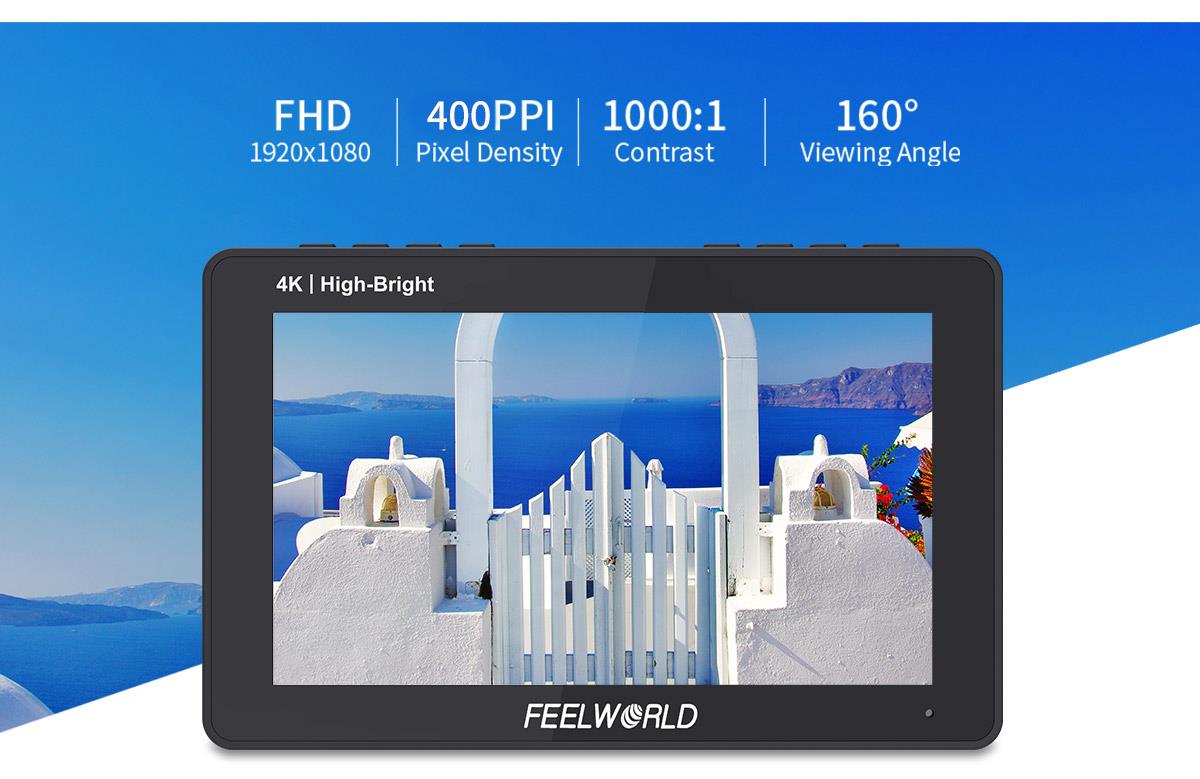

Full HD IPS PanelViewing clearly and capture every detail with confidenceWith extremely high resolution IPS panel, 16.7M(8bit) color gamut, provides excellent details,accurately reflect the original colors.
detail
Preview

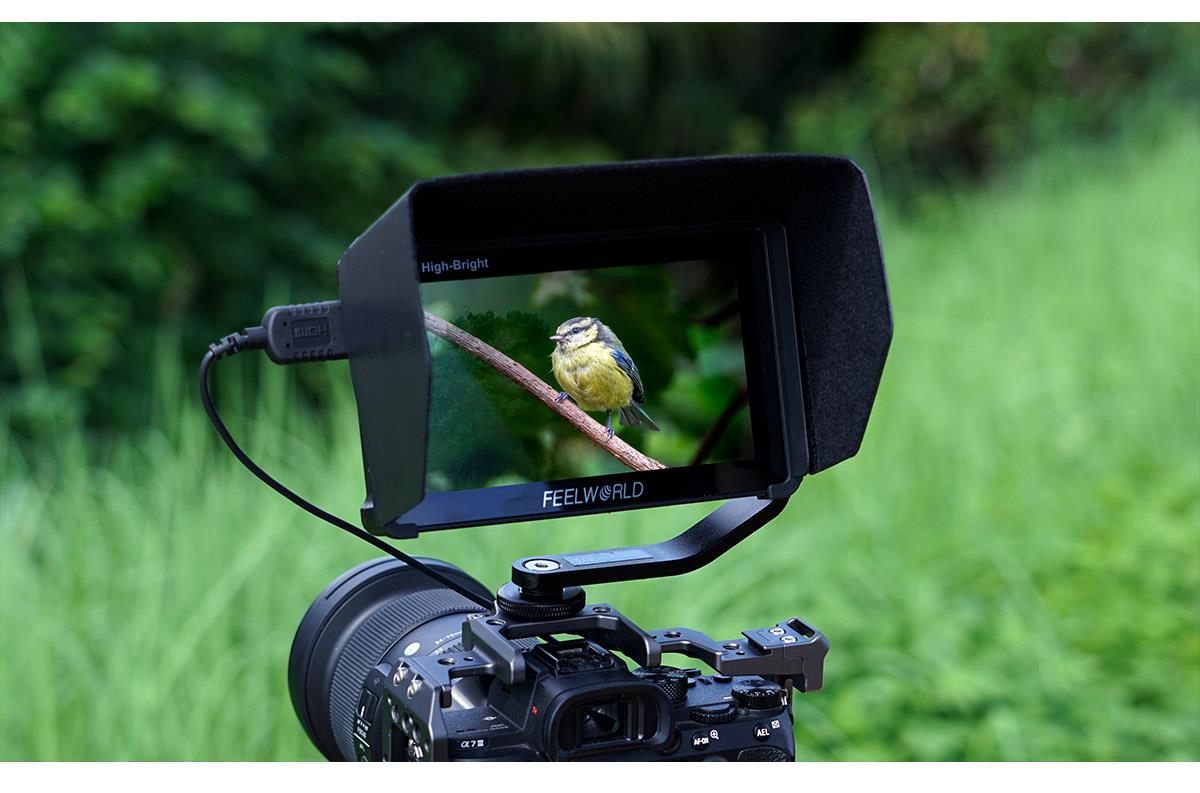

1600nits, Daylight ViewableBacked by 1600nits of brightness, F5 PROX isn't afraid to get a little sun. The screen visible clearly even outdoor shooting, no need to use sun-hood.
detail
Preview

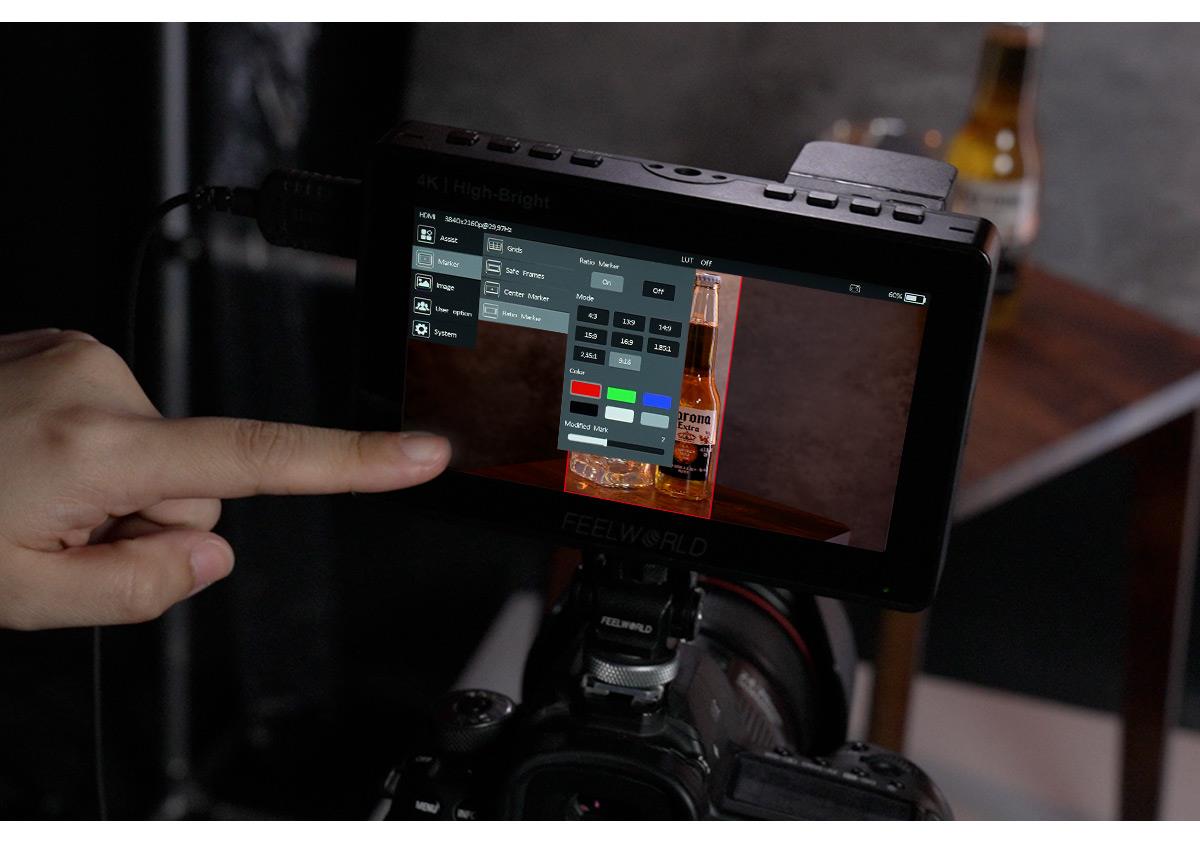

Sensitive Touch Screen ControlThe innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons.
detail
Preview

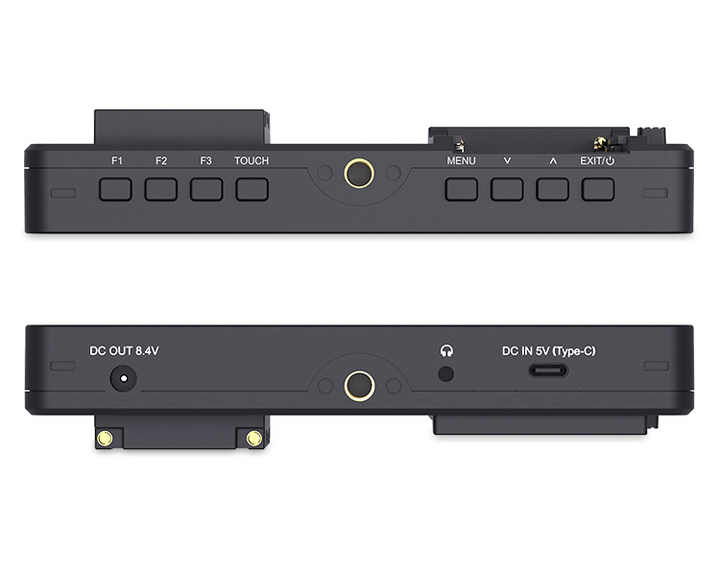

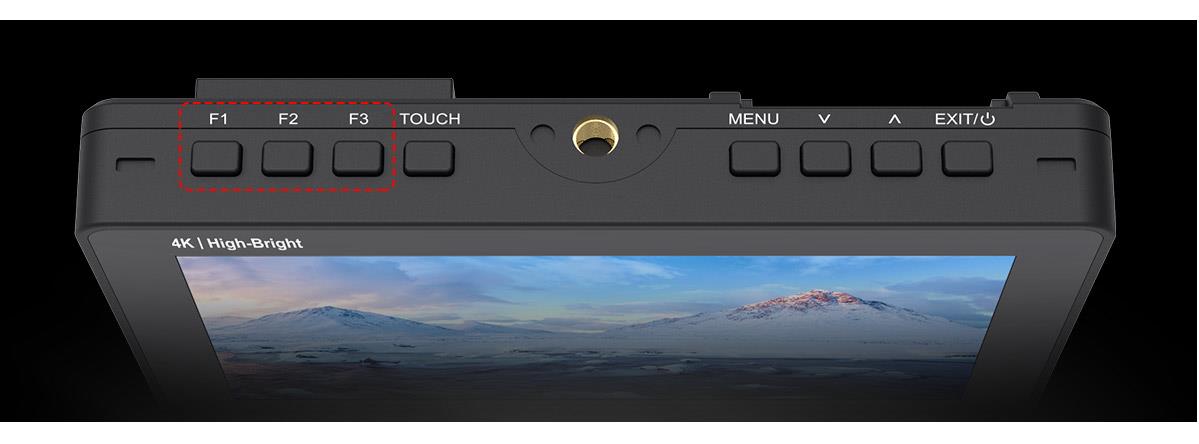

Buttons Setup, More OptionExcept touch control, you can also choose to use physical buttons for operation. In addition, there are three custom shortcut function keys (F1-F3) , you can be set as commonly used function keys, and the desired functions can be achieved with just press, improving shooting efficiency.
detail
Preview

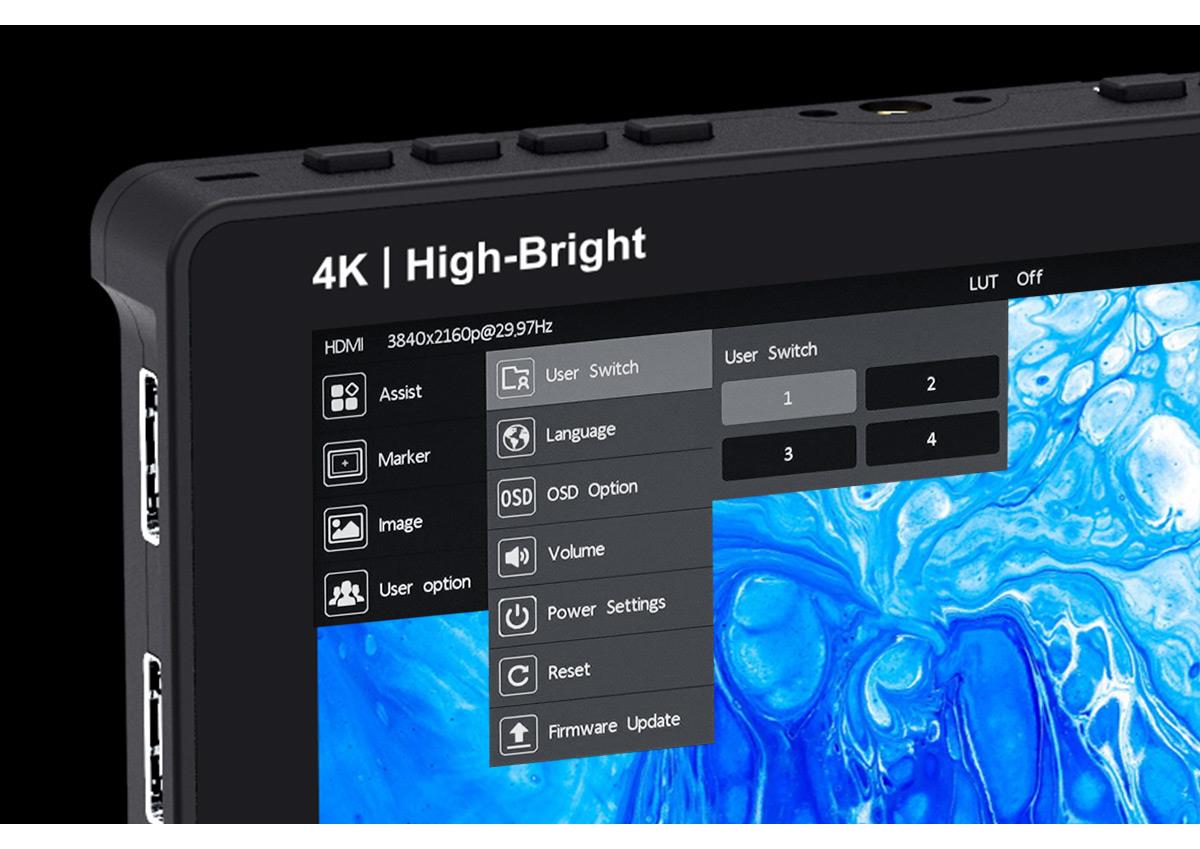

Menu User SwitchF5 PROX provides 4 groups menu setting saving. You can select 1~4 group after set the menu, it will save automatically, and can be called directly next time.
detail
Preview

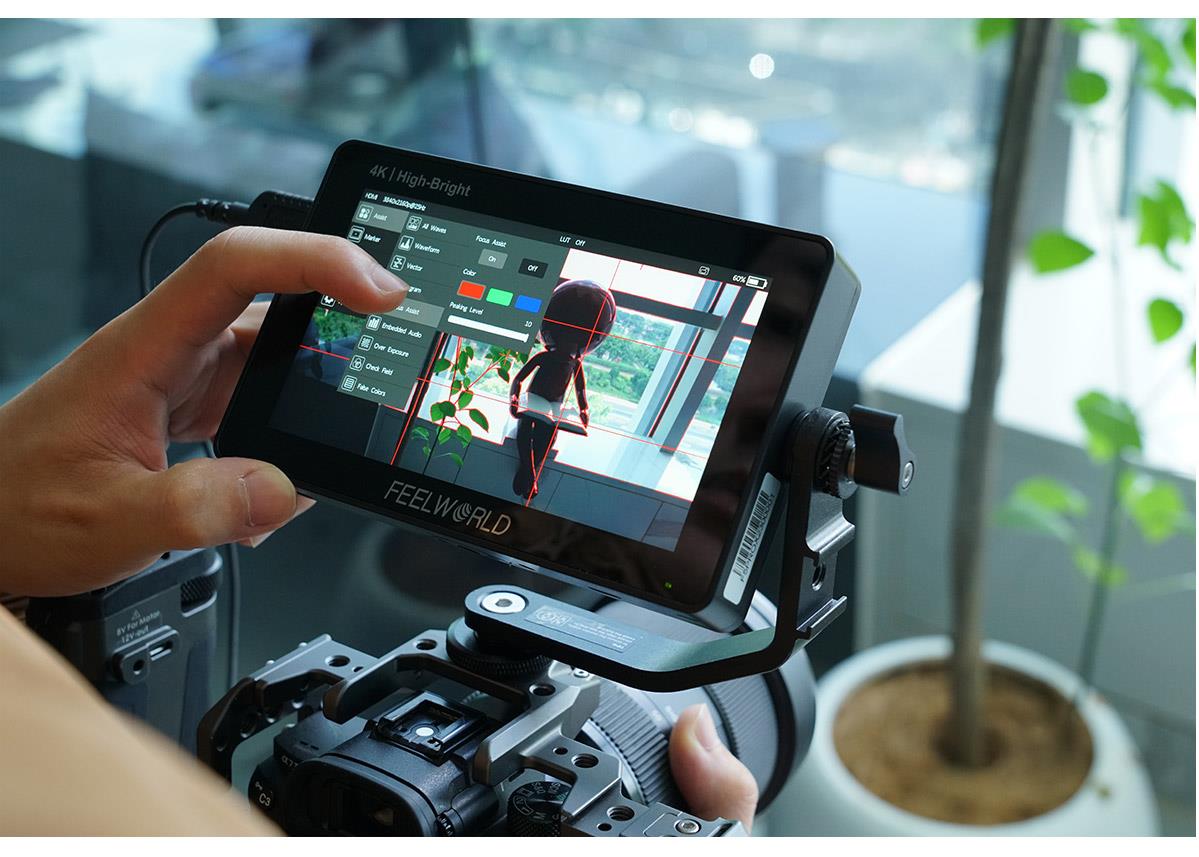

9:16 Vertical Screen MarkerF5 PROX added 9:16 safe frame and ratio marker. Perfect for vertical screen platform such as Tik tok, instragram.
detail
Preview

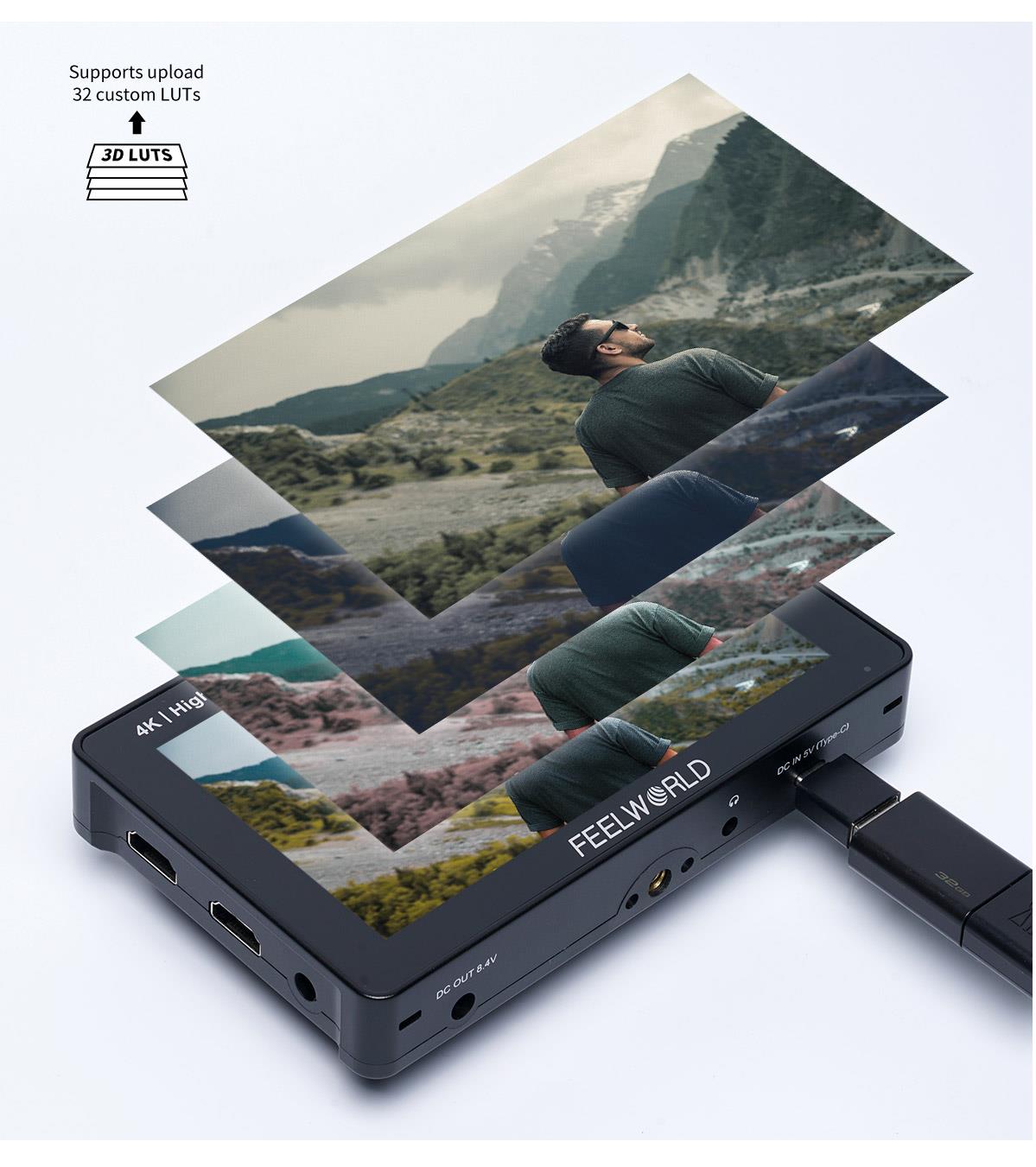

Load Custom 3D LUTs,Preview Filming Look in Field ShootingSupports upload 32 custom LUTs3D-LUT is a table for quickly looking up and output specific color data. By loading different 3D-LUT tables, it can quickly recombine color tone to form different color styles. Built-in 4 DE-log LUT , you also can load the custom .cube file via USB flash driver (up to load 32). Insert the USB flash driver to the standard accessory Type-C to USB adpater, then connect with Type-C interface of F5 PROX.
detail
Preview

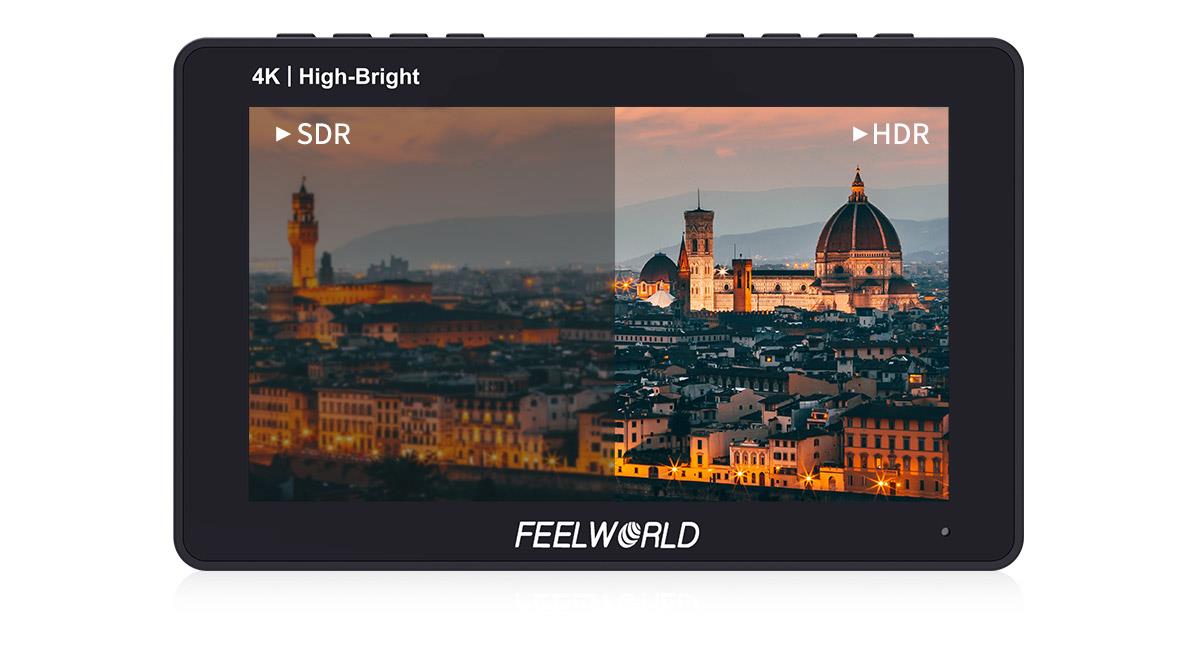

HDR in the fieldWhat you see is what you getCompare the normal image, HDR provides stunning dynamic range and image details. Built-in HLG mode.
detail
Preview

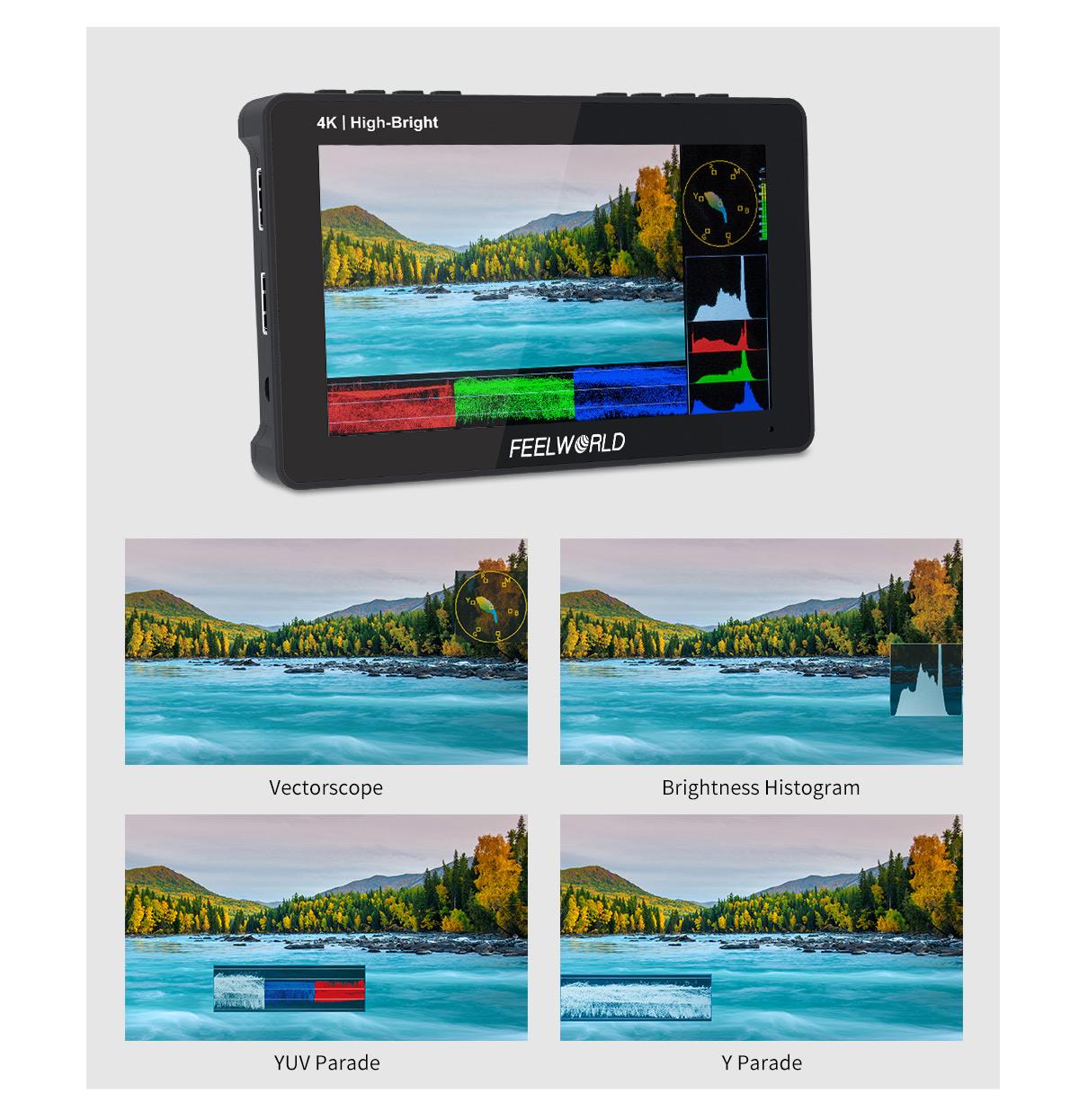

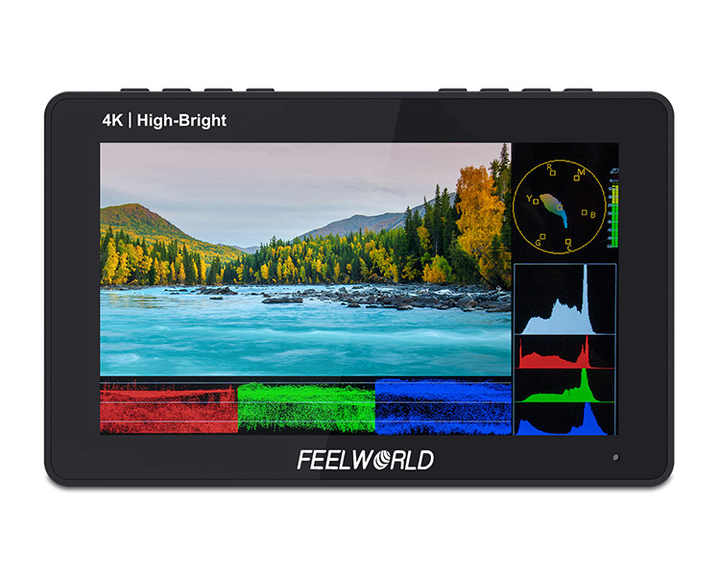

Accurate waveform monitoringSave your budgetBuilt-in waveform monitoring, you can choose from waveform (RGB Parade, YUV Parade, Y Parade), vector scope, histogram, audio phase and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and also support one key to open all scope mode. When turned on separately, the horizontal or vertical position of its function can be set in the menu. F5 PROX becomes the ideal choice for live production monitoring, so you no longer need to use a separate expensive scopes!
detail
Preview
detail
Preview
detail
Preview
detail
Preview

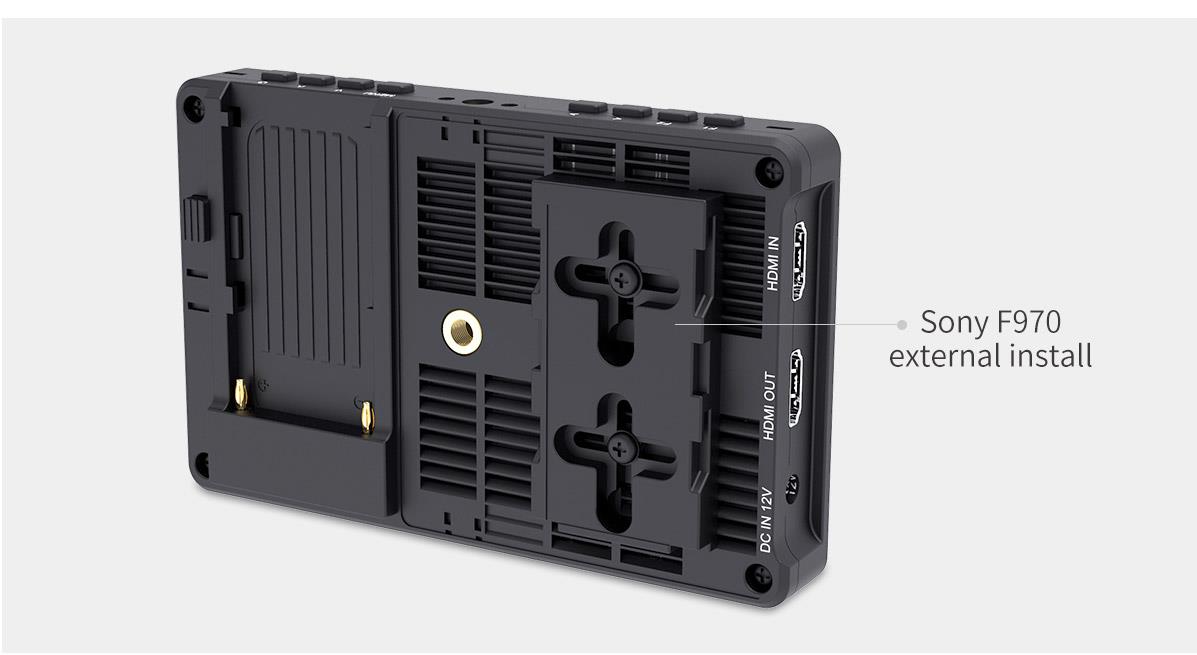

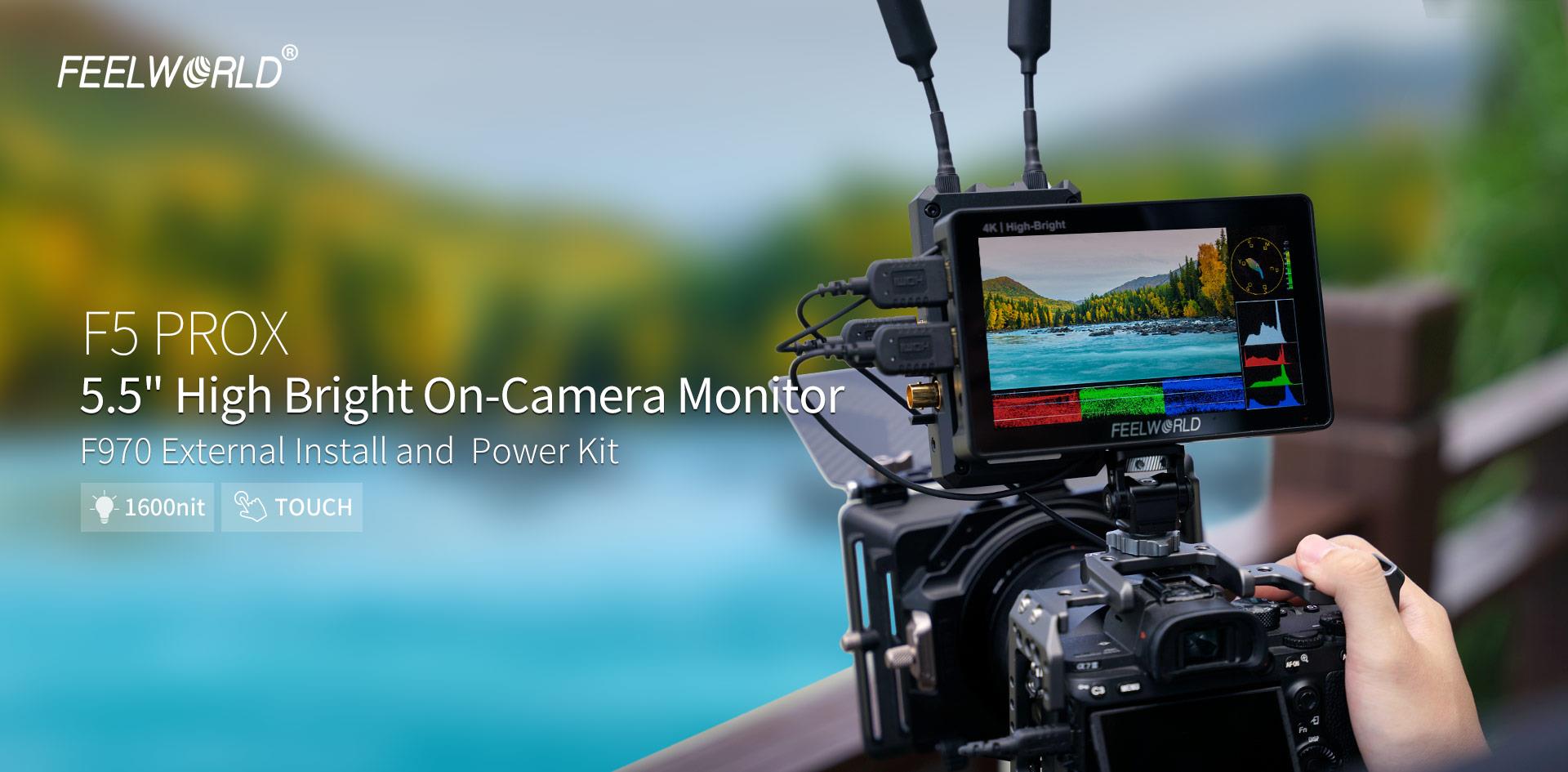

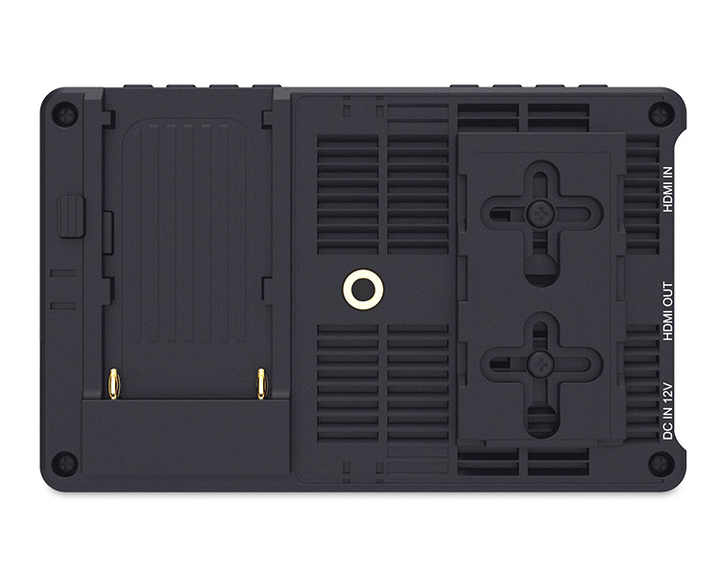

F970 External Install and Power Kit

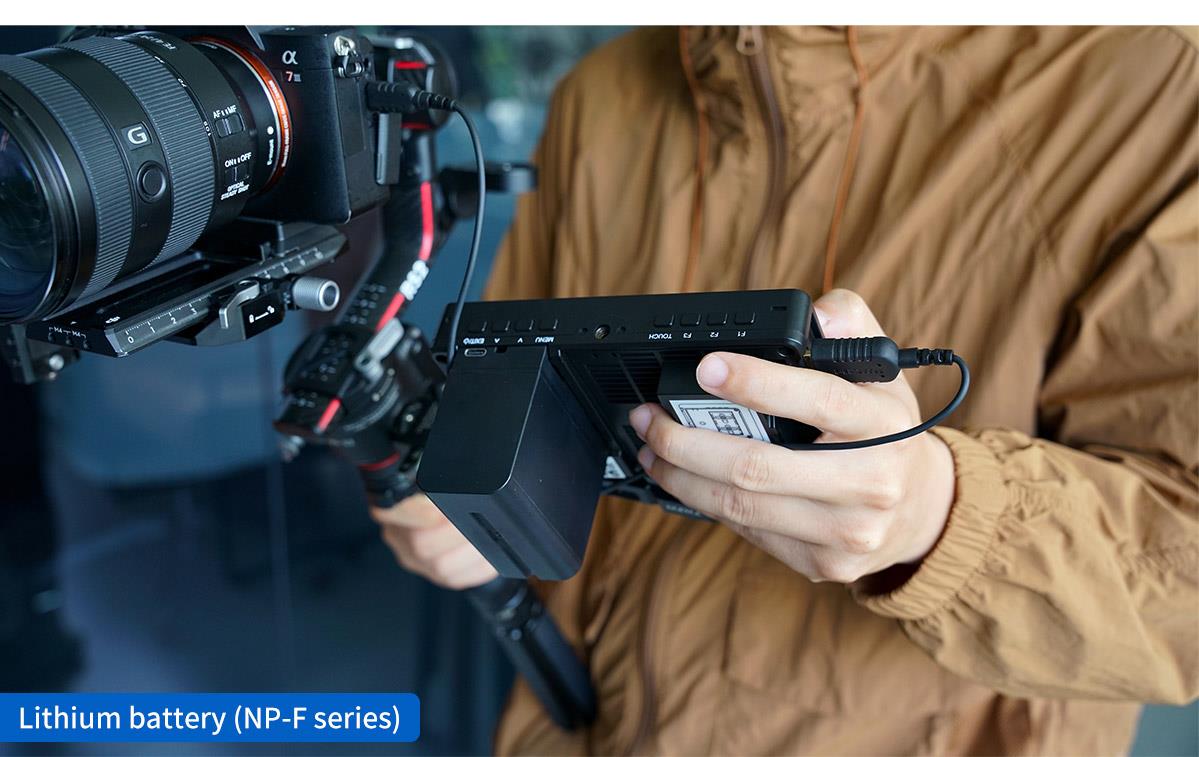

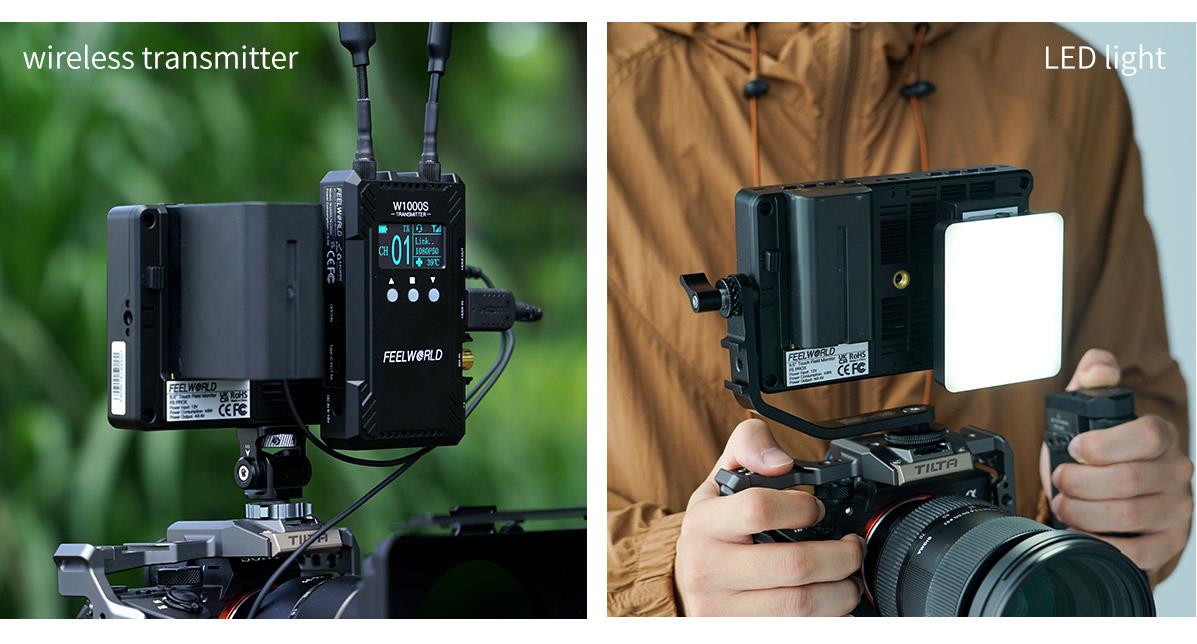

Simplify your Filming EquipmentA Sony F970 external install and power kit design is added to the back of the monitor. The external kit can be used to install and install the external equipment, like wireless transmission, LED light, video converter and others that can be powered by a Sony F970 battery. This innovative external power supply design meets the need to power for external wireless transmission, LED light and other equipment, greatly saving the space occupied by the equipment and reducing the weight of filming equipment.
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
Specification
Recommend For You
Factory video
Company Profile
Shenzhen Feelworld Technology Co,Ltd

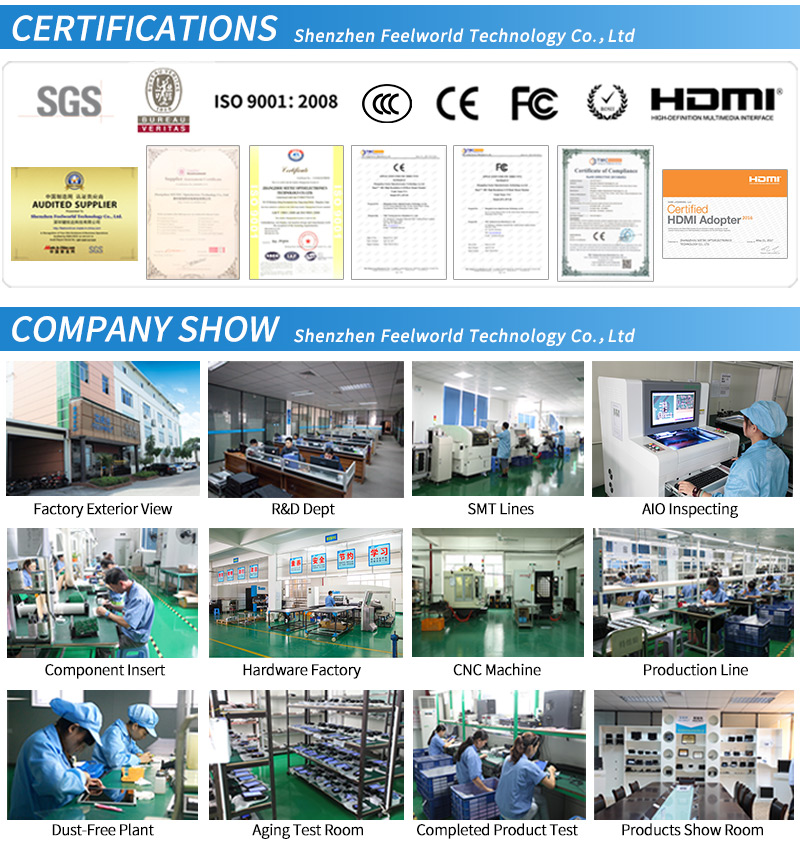

Shenzhen Feelworld Technology Co,Ltd, Ltd. was established in 2011. It is a national high-tech enterprise thatintegrating research & development, manufacture and sales for broadcast and film, touchscreen LCD monitor, live streamingdevice,and also a provider of various live streaming solutions. The company owns three major brands SEETEC, FEELWORLD andLAIZESKE, and has formed domestic and overseas two markets. Its products and live broadcast business cover more than 100 countriesand regions around the world,and the markets occupy a leading position. Since the creation of the live broadcast business, FEELWORLDhas successively provided service solutions such as customized live broadcast room, high-definition video live broadcast, and livebroadcast interaction for users such as famous enterprises and educational institutions. It is the ideal choice of manyenterprises and has been recognized by partners unanimously approved.
