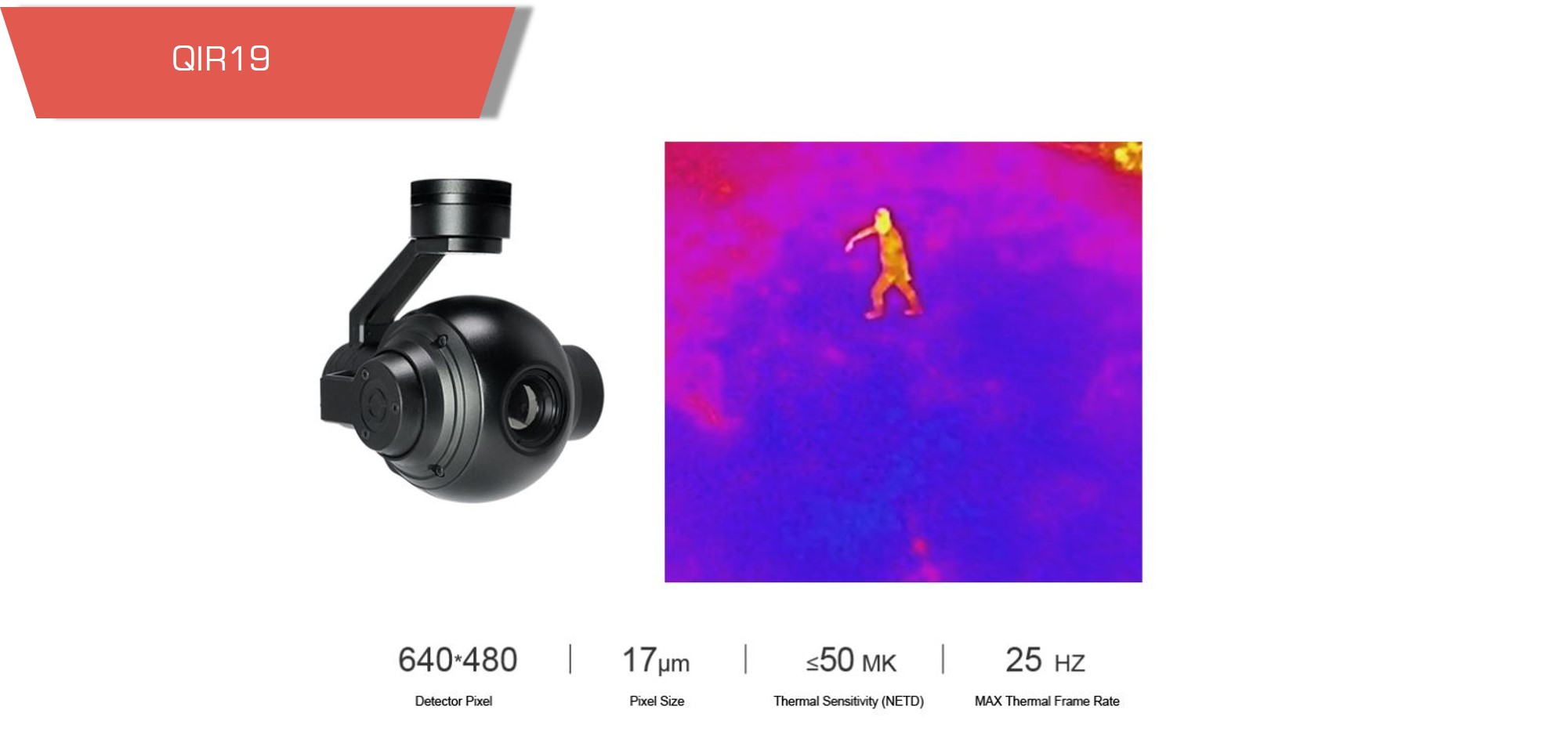

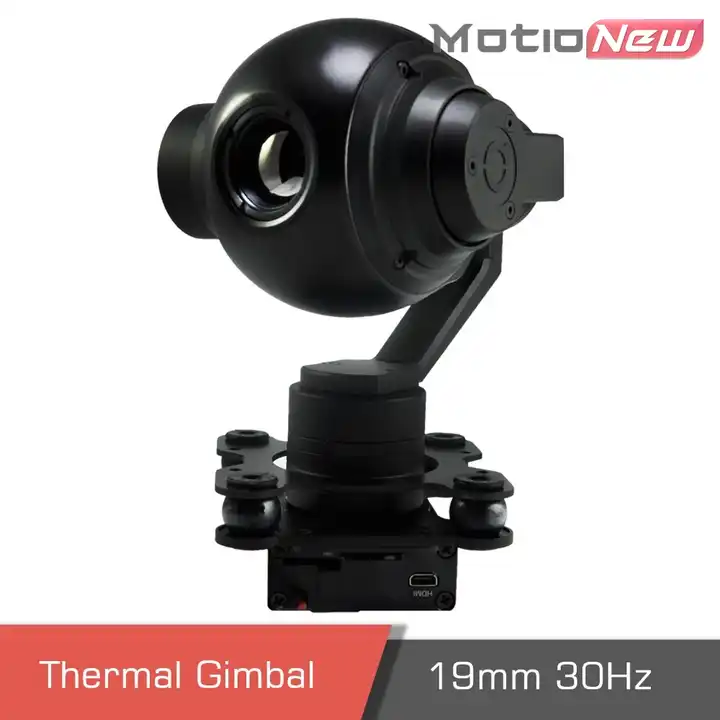

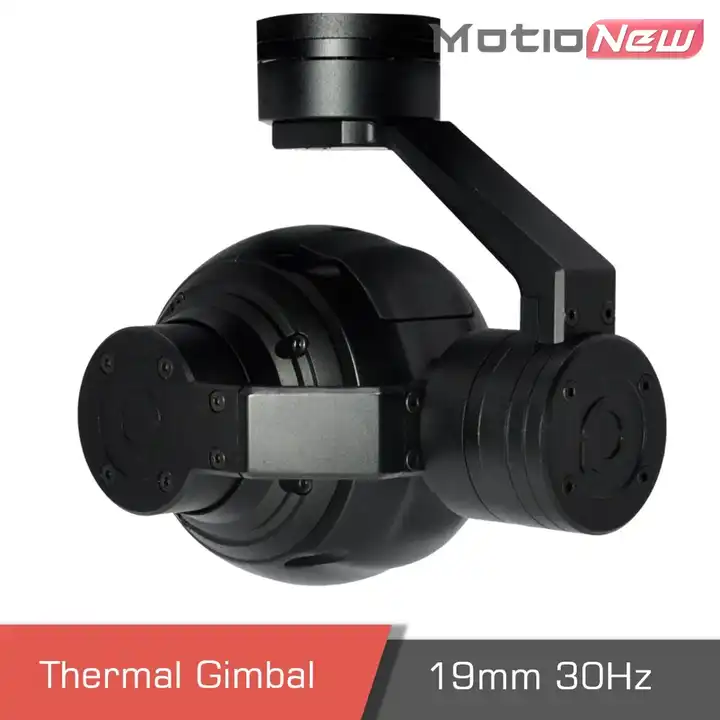

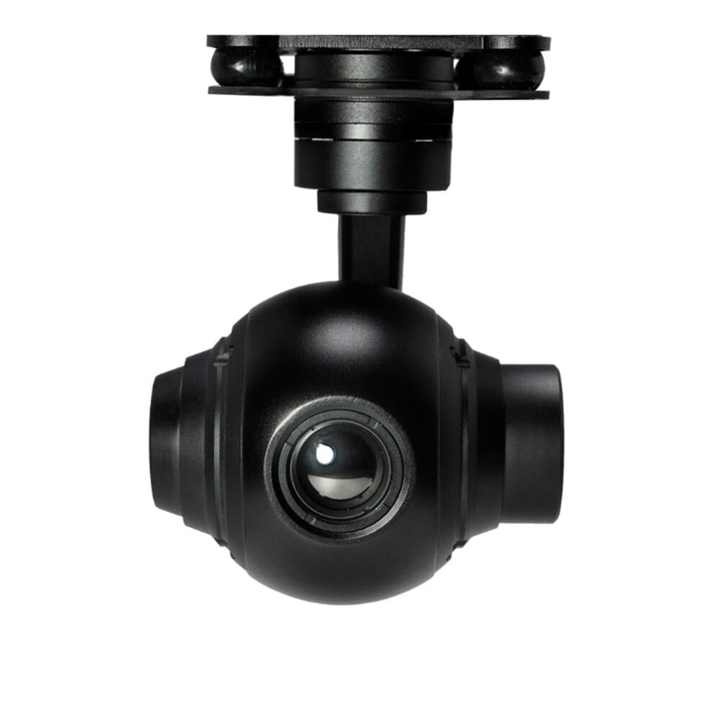

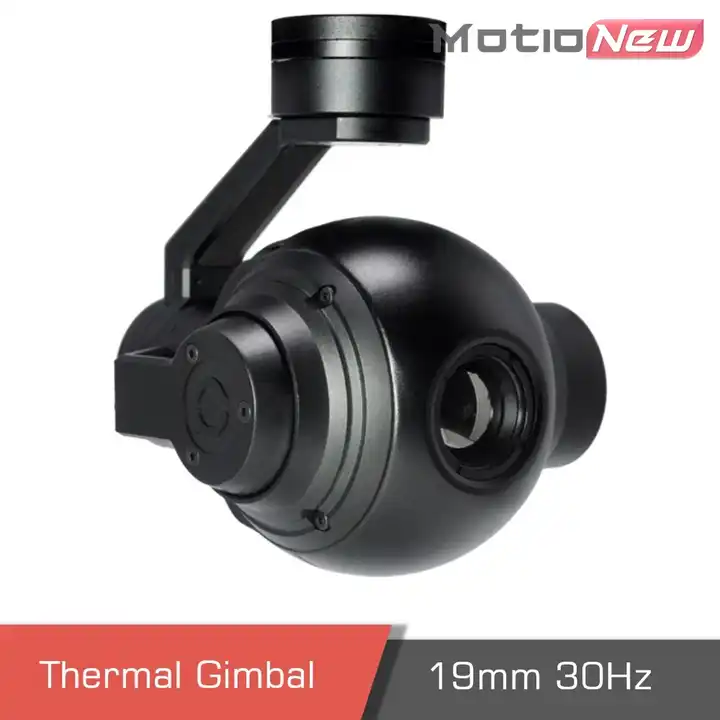

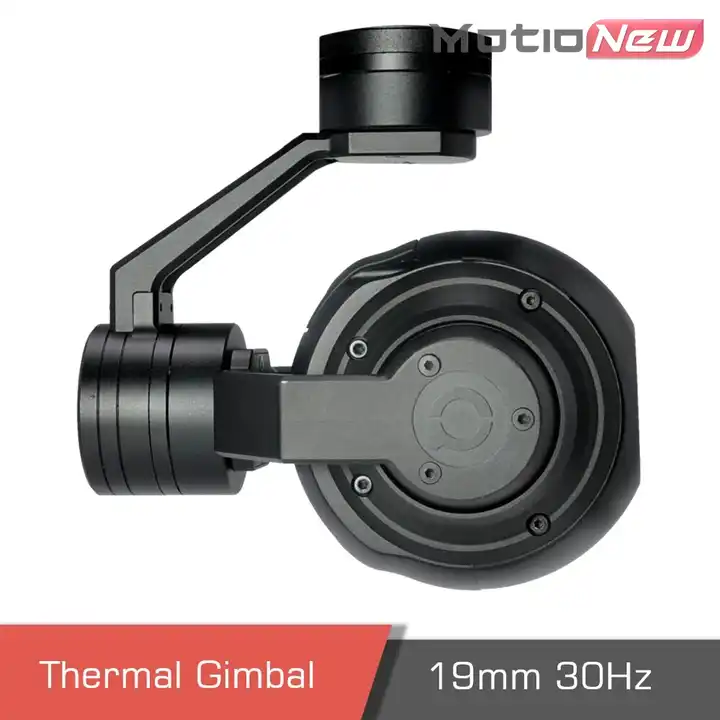

Professional 3-axis High-precise FOC ProgramThe QIR19 features a thermal imager with 19mm lens, supports 640*480 detector pixels, 1x ~ 4x digital zoom. The gimbal can be controlled in three directions: YAW, ROLL and PITCH , we use FOC solution can greatly compensate the vibration of UAV. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.Powerful 19mm Thermal Imager Integrated French ULIX high-precision uncooled long wave (8μm ~14μm ) with 19mm lens thermal image sensor, QIR19 can record and transmit thermal image and visible images at the same time. See the unseen. ULIX thermal sensors reveal details invisible to the naked eye by making subtle differences in temperature visible. This new view on the world can reveal when equipment or buildings are damaged, the location of lost people and much more.

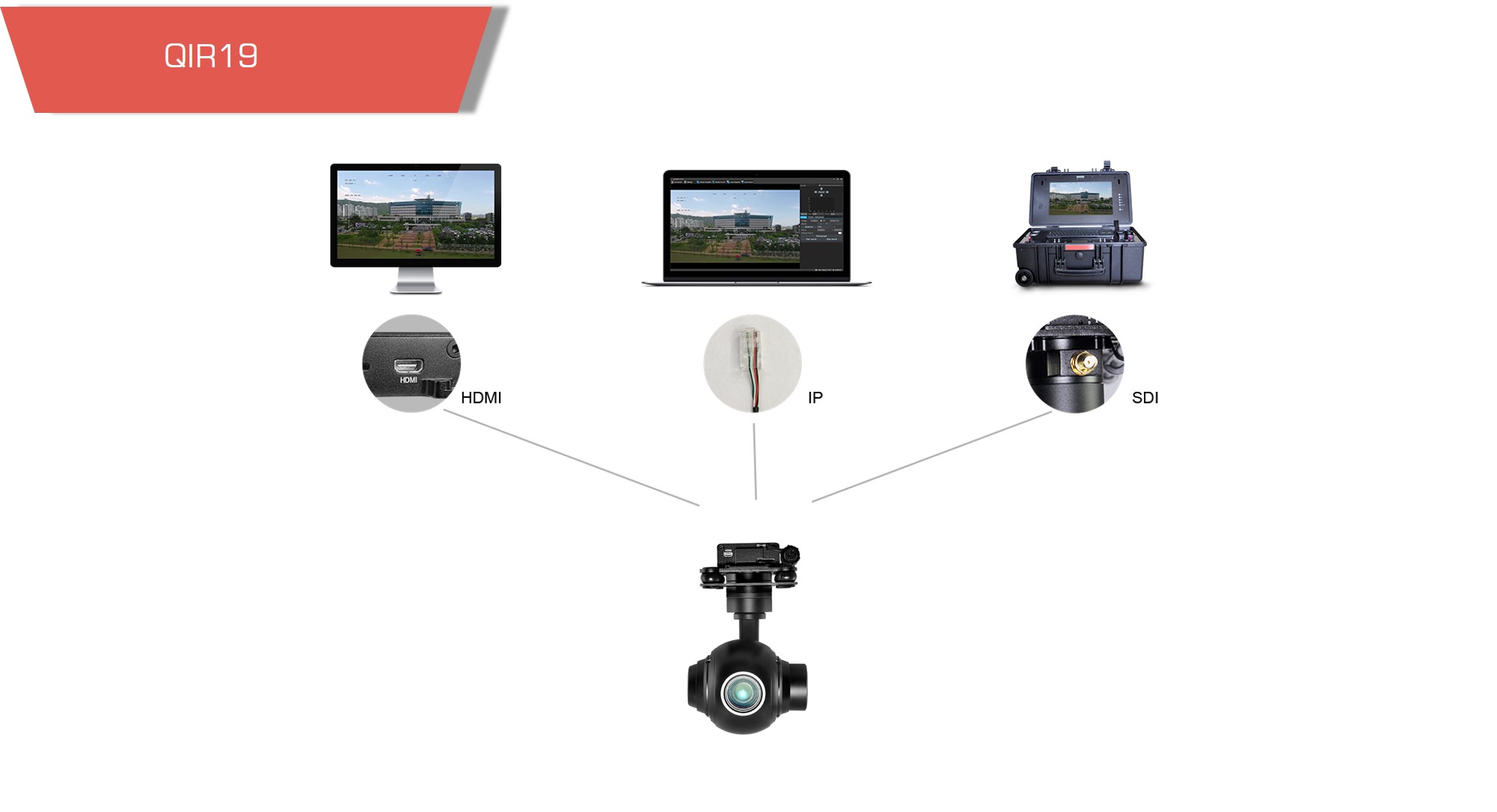

Multi Output Methods OptionalQIR19 supports both HDMI output, Ethernet/IP output and SDI output. HDMI and output are 1080p, Ethernet output default as 720p and record is 1080p. IP output and SDI output versions will support 360degree enless pan.

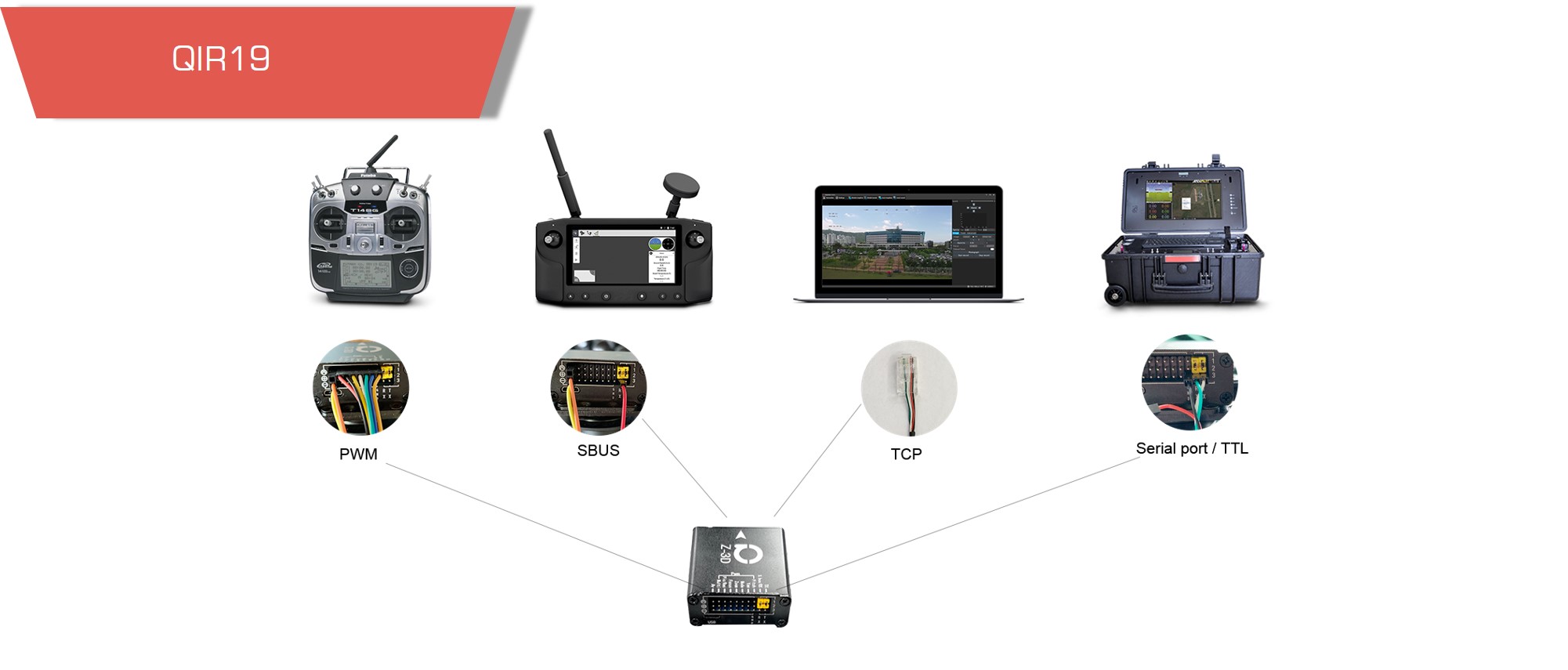

Multi Control MethodsDefault PWM and Serial port TTL control, SBUS is optional, IP output version also support TCP control via ethernet cable. With Viewpro software Viewlink you can fulfill IP output, TTL control and TCP contorl.

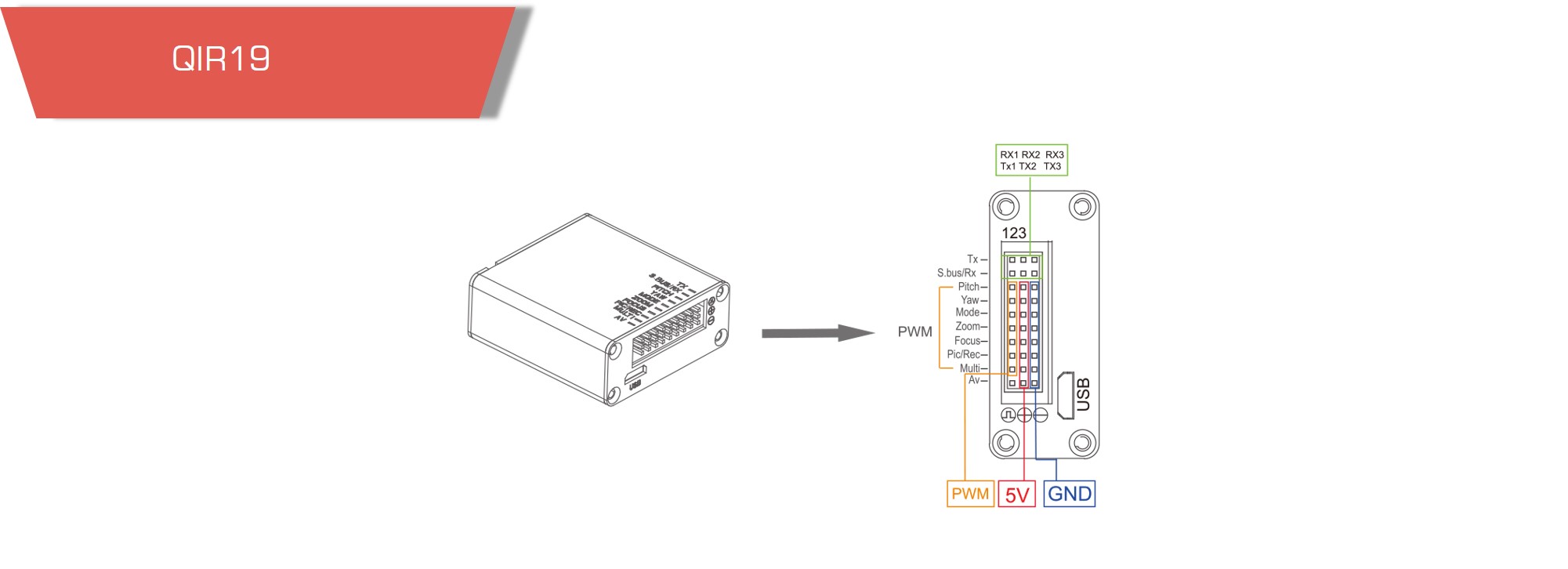

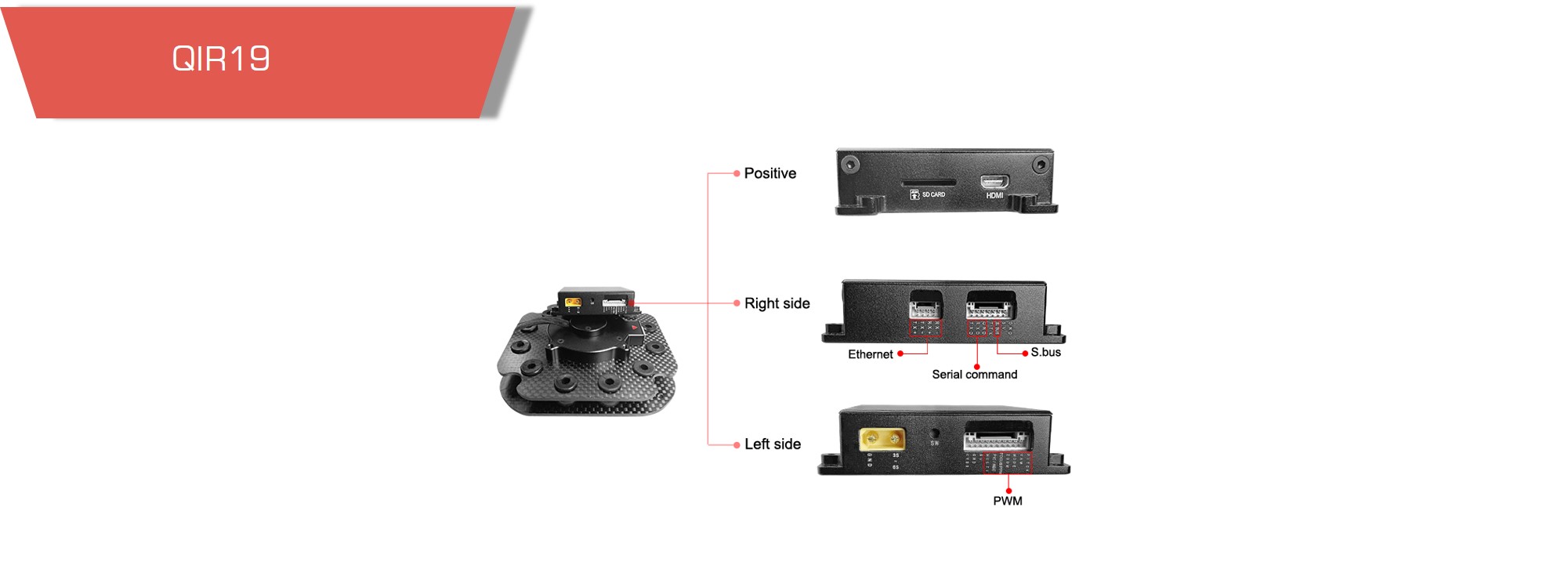

Control box signal interfaces

Compatible with ViewportQIR19 is compatible with Viewpro quick release connector Viewport. Viewport is an option known as easy assembly, plug and play.

ApplicationMainly supply in law enforcement, fire-fighting, power tower and pipeline inspection, search and rescue etc. A wide range of monitoring and searching is required in an emergency to quickly transfer the situation, improve response efficiency and reduce casualties.

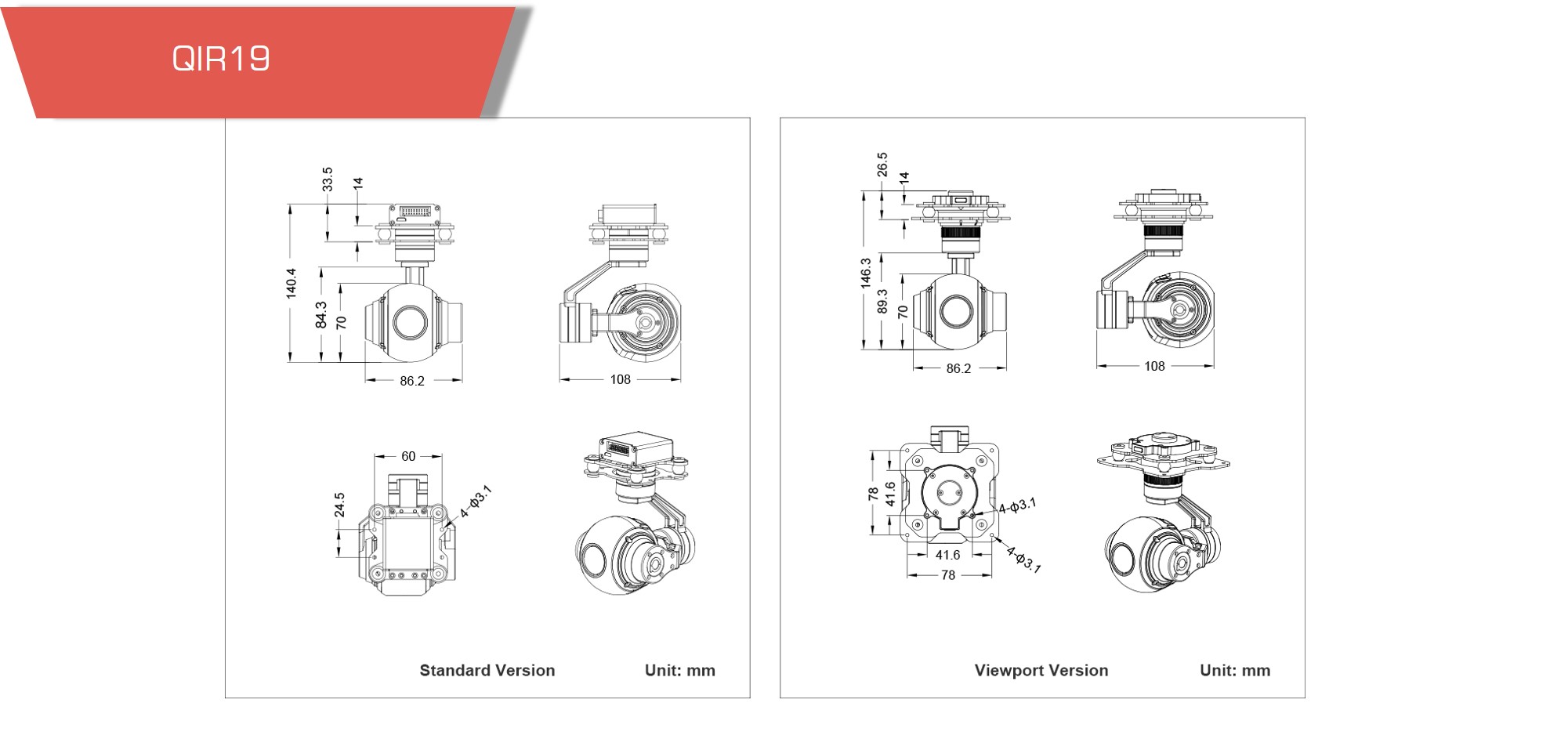

Dimention QIR19
