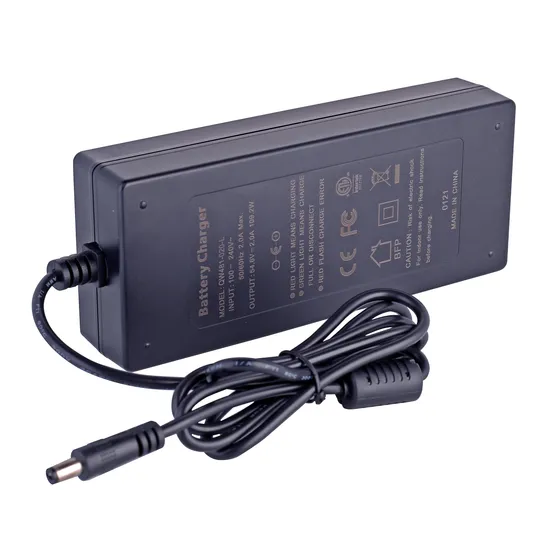

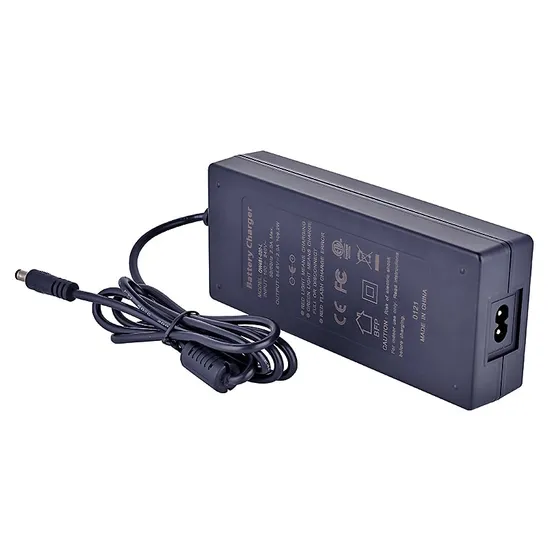

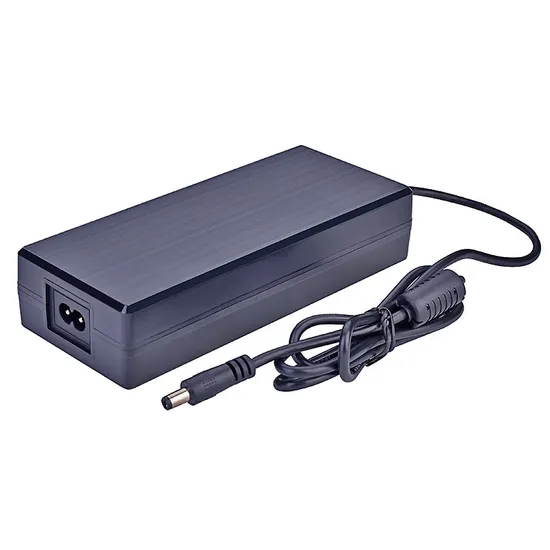

Brand Name:QUAWIN
Model Number:QW160-060-F
Use:5S 15V/16V
Lifepo4 battery pack
Type:Electric
Place of Origin:Guangdong China (Mainland)
Battery charger:automatic battery charger 18.25V
Color:Black
Shell Material:Plastic Shell(ABS+PC)
Input voltage:90-264VAC 47/63Hz
Output voltage:18.25V
Output current:6a(Max)
Output power:109.5W
Charge mode:CC-CV(Constant Current-Constant Voltage)
Output Connector:Waterproof plug, Crocodile Clip, Aviation Connector, XLR, Ring terminal, Aviation Model plug, SAE Plug, Anderson Connector, Customized
Certification:BMSI
CB
CCC
CE
ETL
FCC
GS
KC
PSE
RCM
SAA
UL

Inner package:Corrugated box,EPE pearl cotton/according to your requirements
Outer packing: export carton
Delivery Detail:sample within 7 work days,25-35 days for bulk order
Specifications:
5S 15V/16V
Lifepo4 battery pack
Features:
• Fully auto CC +CV(H)+CV(L) charging process;
• Constant big charging current for faster charging;
• Automatically charging ending with Cut-Off output;
• Fully enclosed fanless design, quiet and durable.• Efficiency(at 100% load):>=85%
• Operating temperature:-20ºC ~ 45ºC
• Storage temperature:-40ºC ~ 85ºC
• Operating humidity:5%~90%RH
Specification:
• Input: 90-264VAC 47/63Hz
• Output: DC 18.25V
• Charging current:
6a(Max)
• Dimensions (mm):
172.7*72.7*36
• Weight: 600±10g(only body)
Safety protections:
• Over current protection
• Over voltage protection
• Short circuit protection
• Anti- revert current protection
LED Indicator:
The charger turn trickle-off charging mode if battery is full (1/10C), and indicate by LED:
• Charging:Red LED
• Battery Full:Green LED
• Error: RED Light Flashing
Call us to know more details datasheet.
