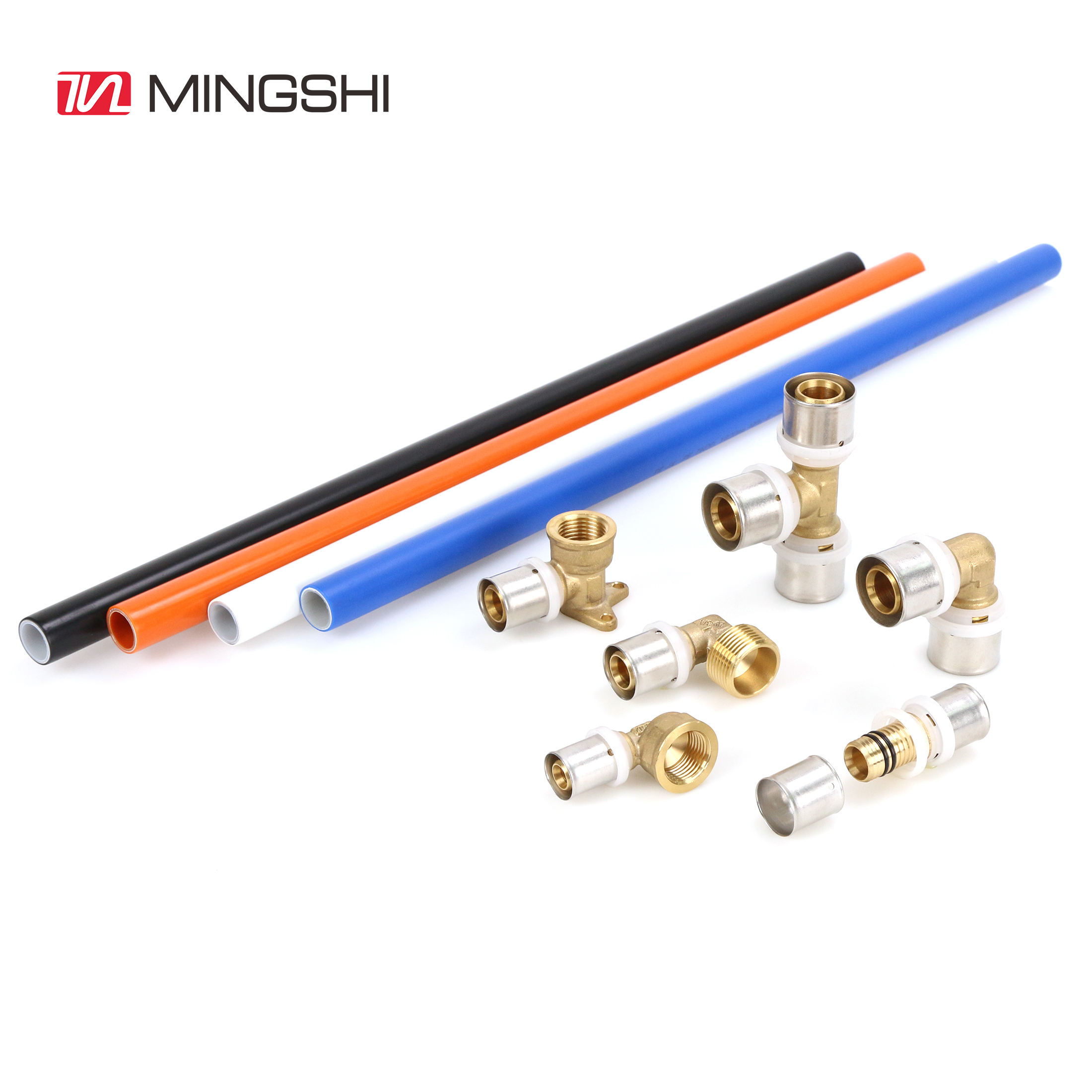

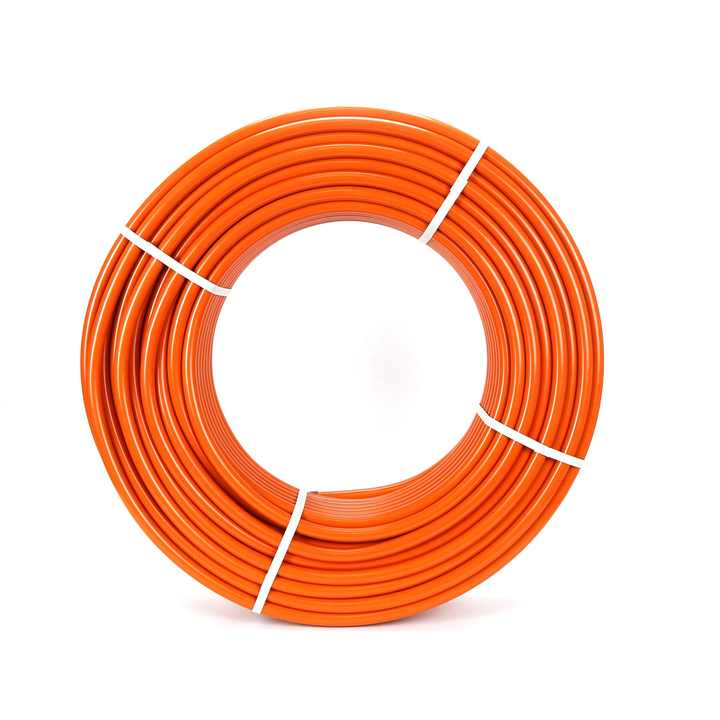

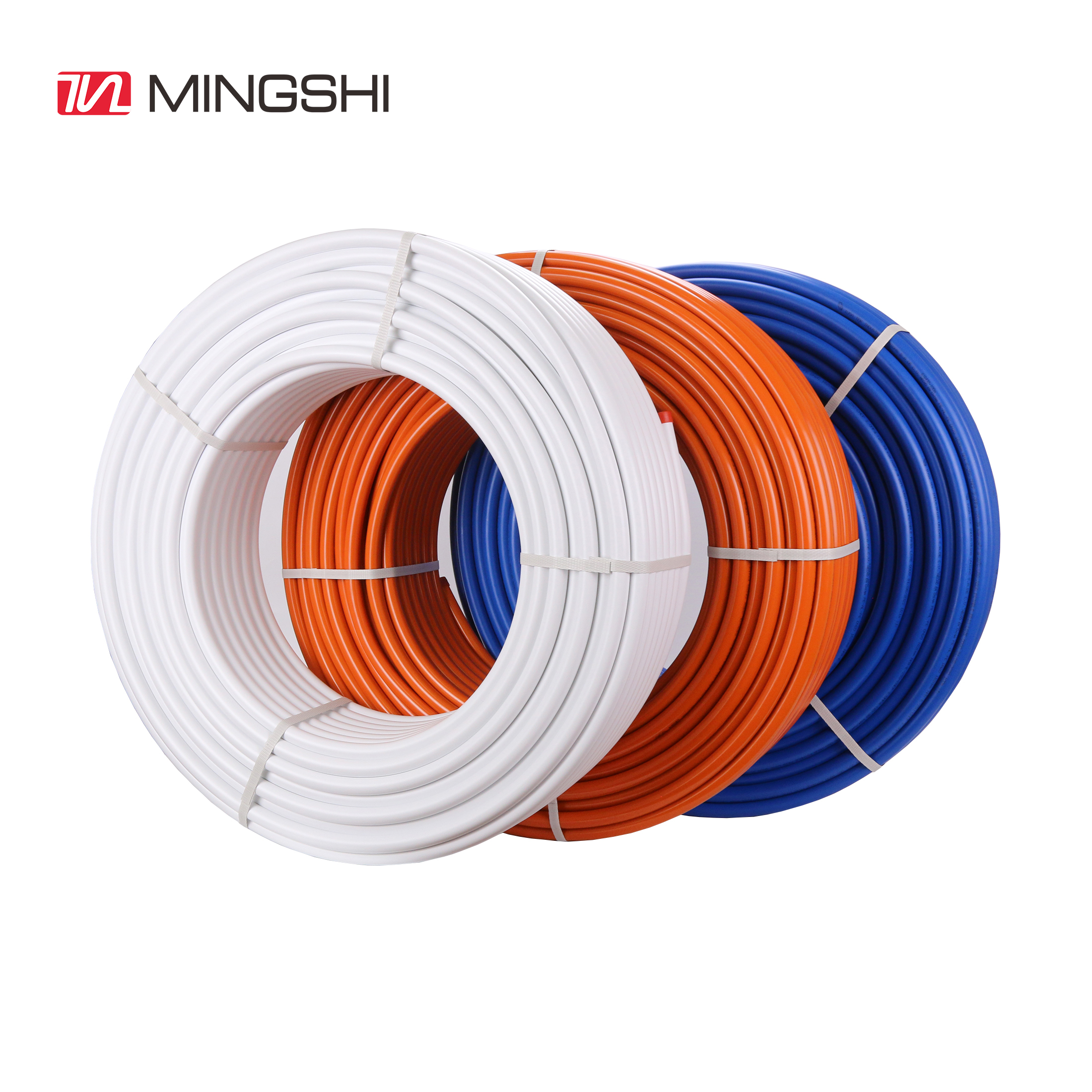

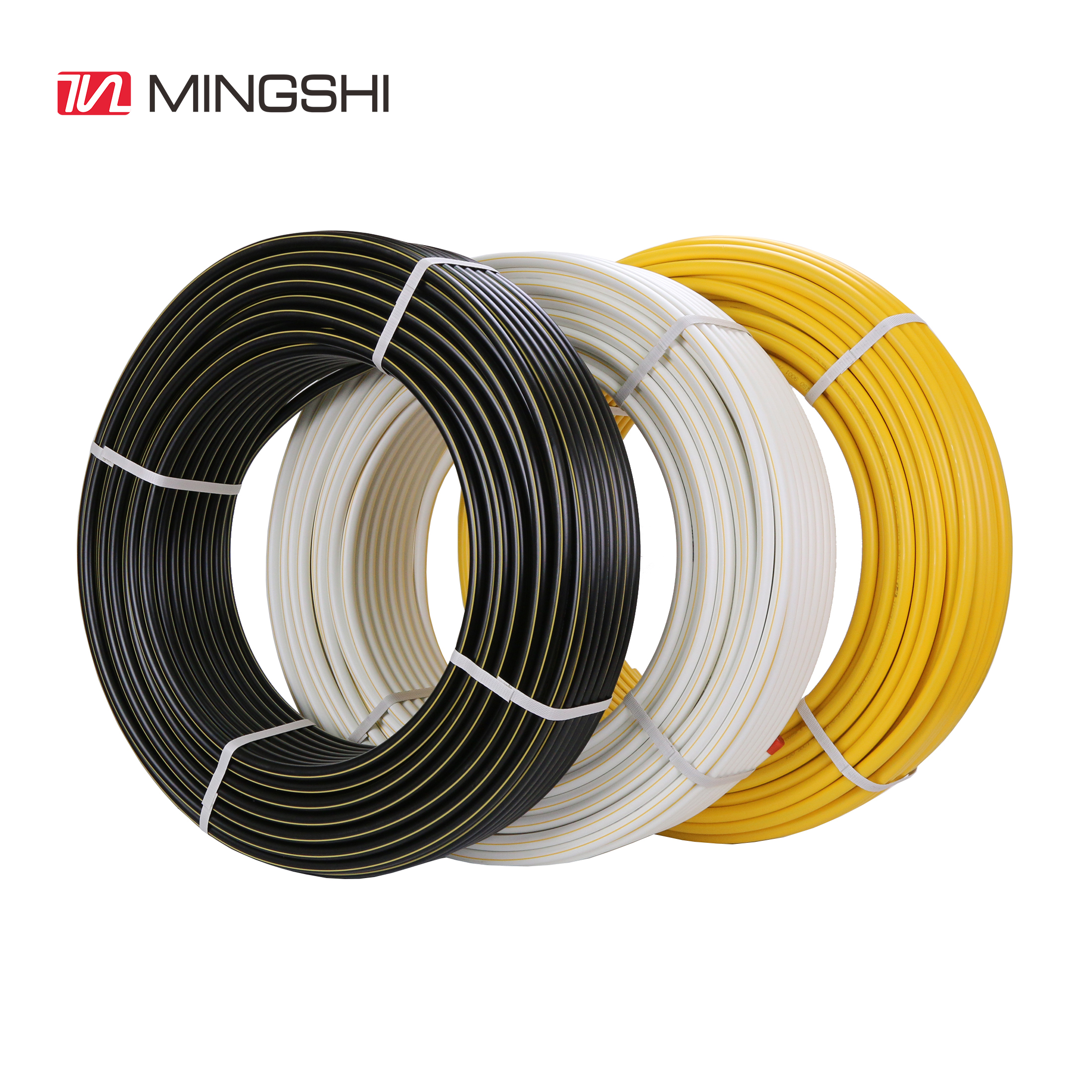

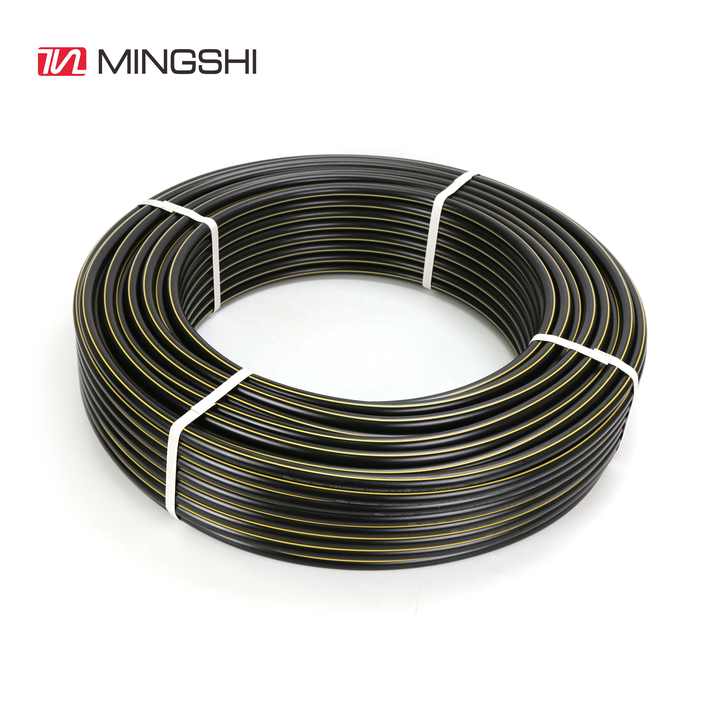

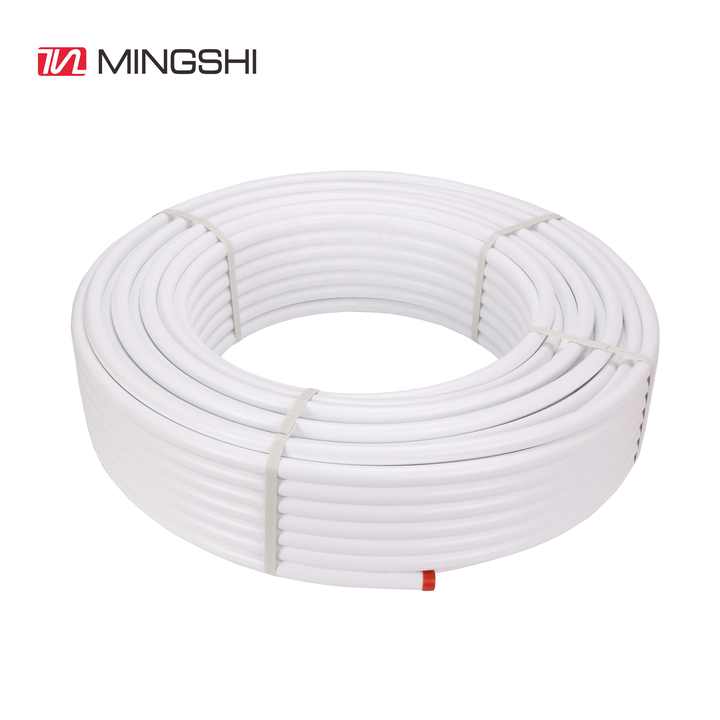

productCSTB NF AENOR WRAS Composite plumbing underfloor heating system PEX Al PEX pipes
Image 2Image 3Image 4Image 5Image 6
Image 1
Preview
Basic Info.Product Description

Basic Info.

WarrantyMore than 5 years
After-sale ServiceOnline technical support, Onsite Installation, Onsite Training, Onsite Inspection, Return and Replacement
Project Solution Capabilitygraphic design, 3D model design
ApplicationOther
Design StyleIndustrial
MaterialPEX
Place of OriginZhejiang, China
Brand meOEM/ODM/MINGSHI/MSP
Model Number16-63mm
TypeFloor Heating Systems
MaterialPEX-Al-PEX, PE-AL-PEX
Length4/5/6/10/25/50/100/150/200m
Brand NameMingshi, OEM
Specification12/14/15/16/18/20/22/25/26/32/40/50/63
Thickness2.0-6.0mm
ColorWhite/ black/ yellow/ red/ blue/ orange
Working TemperatureMax.95℃
working pressureMax.10bar
MOQ10,000mts
CertificationsCSTB , NF , AENOR, WRAS , WATERMARK, ACS
Packaging DetailsWrapped with kraft paper, then with plastic band outside
Selling Units:Single item
Single package size:100X30X20 cm
Single gross weight:10.000 kg
Supply Ability10000000000000 Meter/Meters per Month

Product Description

detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview

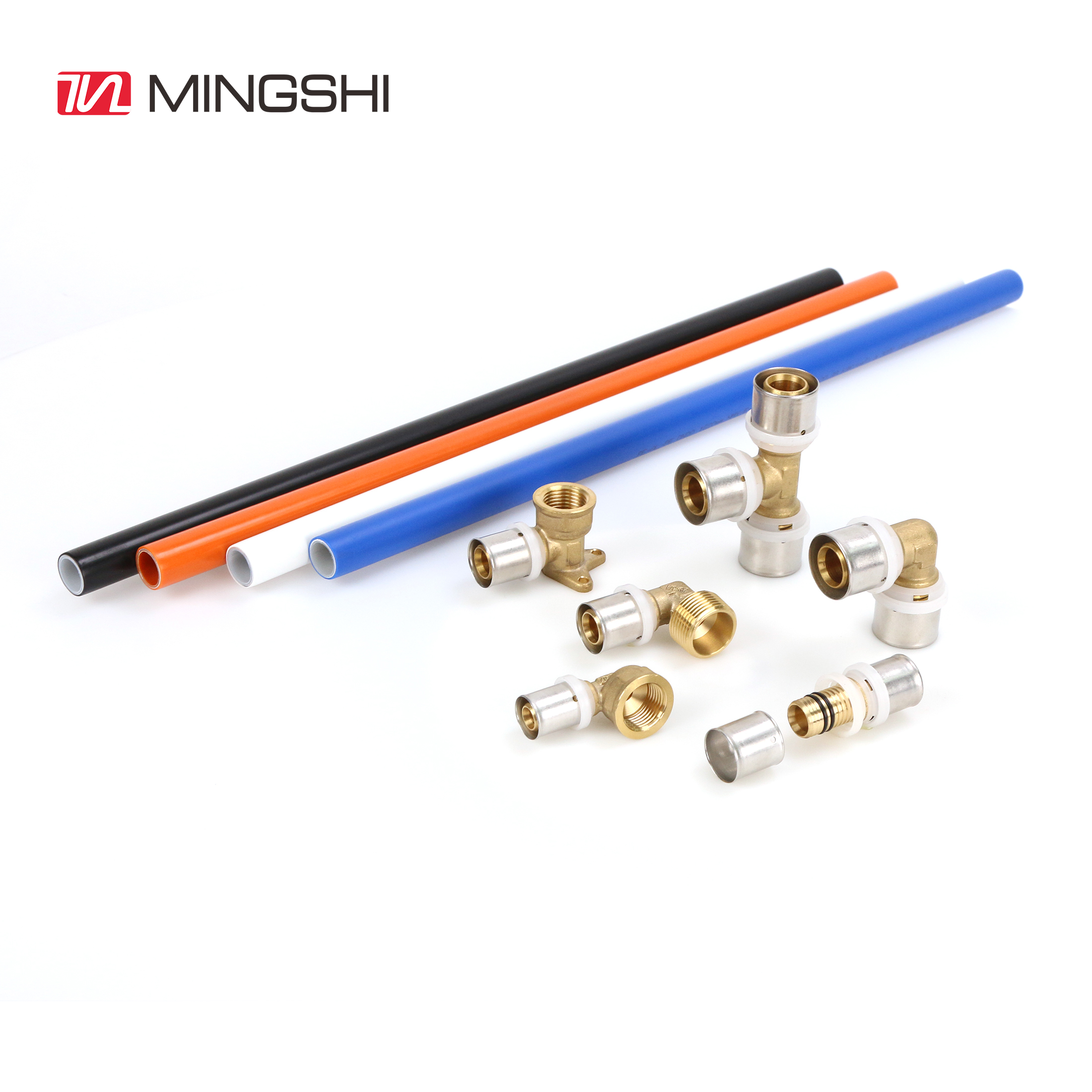

1. For Plumbing water(cold & hot)/gas / underfloor heating systems, Composed of 5 layers:-External Plastic/external Glue/Aluminum/internal Glue/internal Plastic2. Certificates we have: AENOR, CSTB, SKZ, ACS, WATERMARK, JASWIC, ISO90013. Material: CONSTAB/ Other PEX4. QC: Including materials checking and test, spot inspection on production lines, and all the tests required by each standard done on the finished products in our lab rooms5. Overlapped/buttwelding-Spec. (mm)16*2.018*2.020*2.020*2.2525*2.526*3.032*3.040*4.050*4.563*6.06. Lead time: 15-30days7. Main makets: Europe, South Africa, South America, Asia, Australia8. Applications:-Cool & Hot Water Pipe System-Housing Gas Pipe System-Under floor heating System-Solar Energy & Air-conditioning Matching Pipe System-Medical, Foodstuff & Chemical Industry Pipe System9. Characters & Advantages:-Wide range working temperature(-10C~95C), Hi-pressure resistance-30% more flow than metal pipe-50 year working life-Non-corrosive, scale-free-Hygiene, no oxygen permeability, no growth of Microorganism-Non-inflammable, non-static-Easy bending but never spring back-Light in weight, easy to carry and store-Few pipe fitting applying leading to little leakage-Economical price.
Product details
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
detail
Preview
Contact Us
Send an E-mail to:support@bincial.com
CSTB NF AENOR WRAS Composite plumbing underfloor heating system PEX Al PEX pipes
$0.39 ~ $0.69
