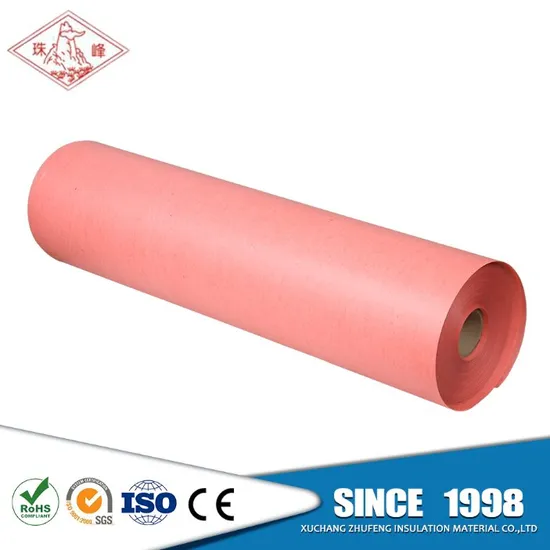

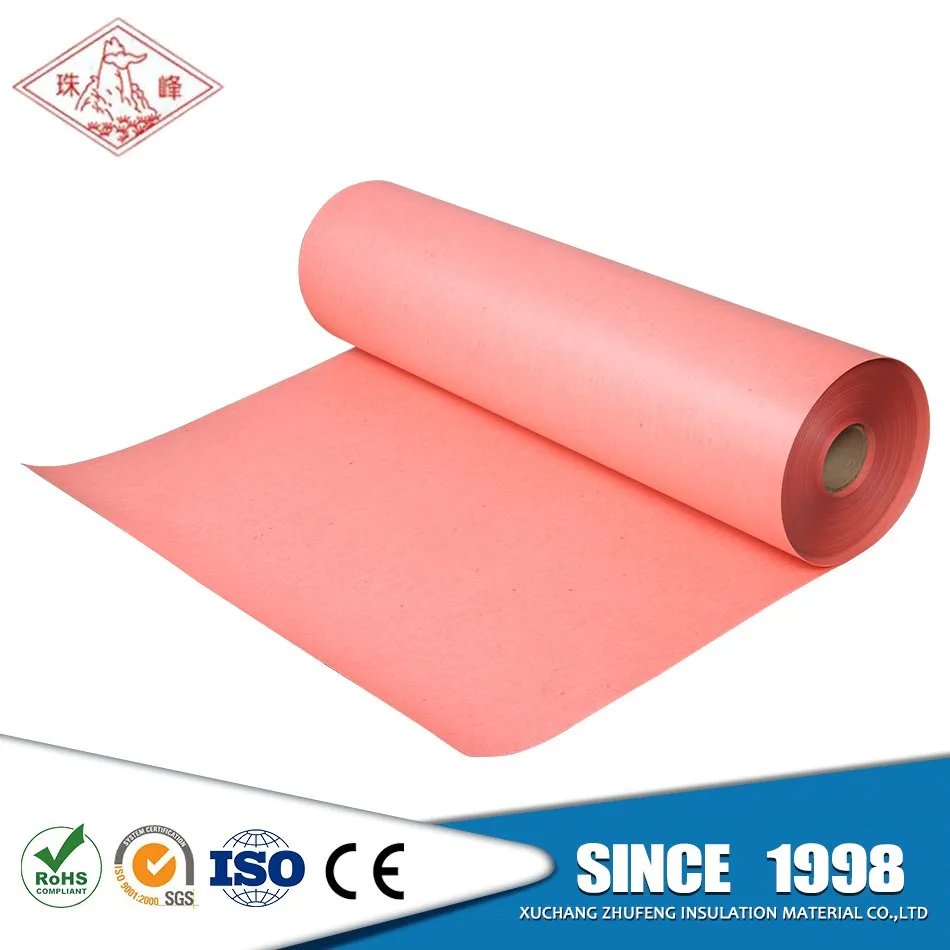

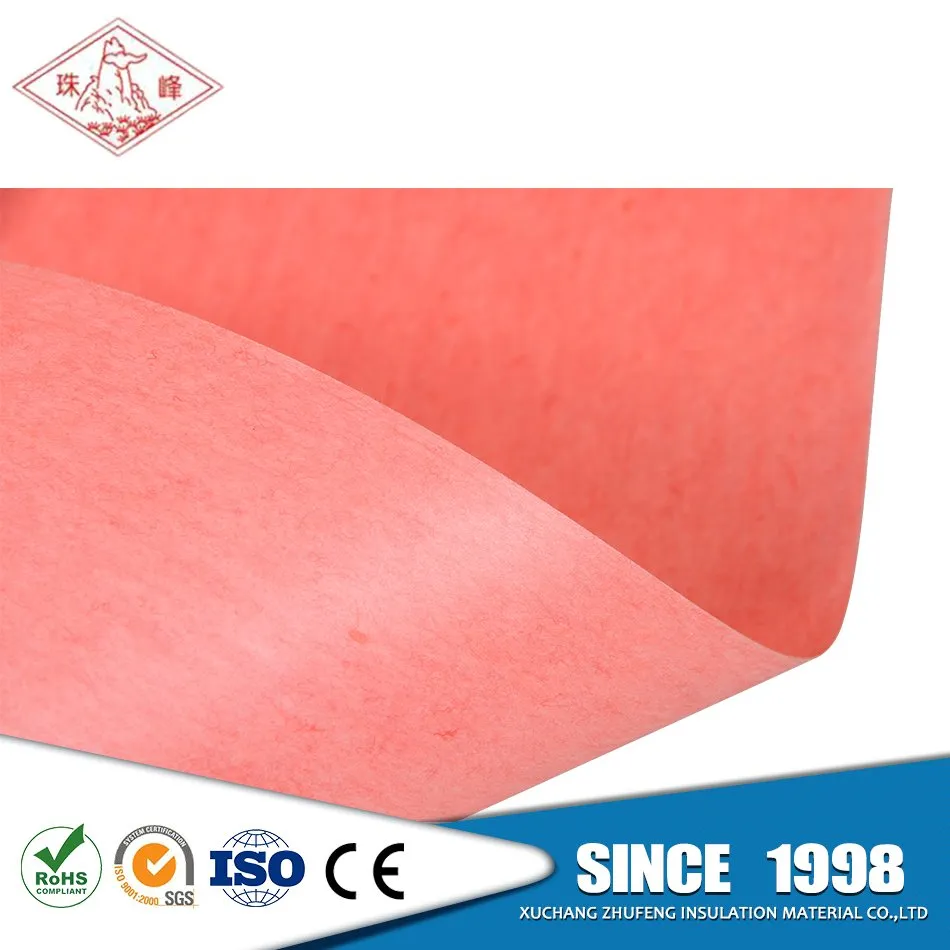

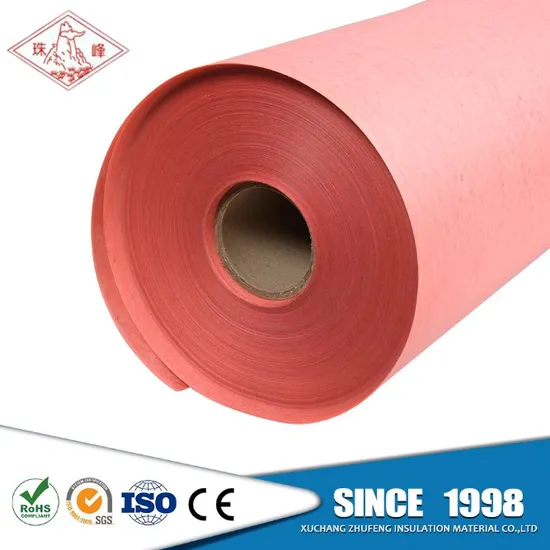

6641 F grade DMD
polyester film polyester fiber non-woven soft composite material is made of polyester fiber non-woven fabric and polyester film. The three-layer composite material bonded by F grade resin has a temperature resistance rating of 155°C. It is mainly used for slot insulation, turn-to-turn insulation, gasket insulation, transformer insulation of Y2 series motors or other low-voltage motors. It can also be used for F-class electrical coil insulation.Available specifications: 0.15, 0.17, 0.20, 0.25, 0.30, 0.35, 0.38mm
The main technical indicators take 0.25 as an example
Thickness tolerance: 0.04±0.05
Tensile strength longitudinal without bending ≥150 after bending ≥130
(N/10mm) Horizontal without bending≥130 After bending≥120
Elongation% Longitudinal ≥10 Transverse ≥10
Volume resistivity under normal conditions MΩ.m ≥1.0×10.6, after damp ≥1.0×10.4
Breakdown voltage Normal state≥10.0 155±2ºC≥9.0
Thermal adhesion: no delamination, no foam, flow glue 180±2ºC
NIDE can process various slot insulating materials according to customer requirements, and provide different grades, different sizes, and different shapes of shaped slot insulating paper, slot wedges, and insulating gaskets. It is suitable for the stator slot insulation of all kinds of brushless, stepping and servo motors, and can meet the demand for slot insulation by manual embedding.Product parameter
Product Usage
1. Motor product industry: automotive generators, series motors, gearbox motors, three-phase asynchronous motors, stepping servo motors, household appliances motors, power tool motors, slot insulation, slot wedge insulation, phase insulation, insulating gaskets .
2. Electronic and electrical industry: ballasts, LED power supplies, transformers, filters, transformers, inter-turn gasket insulation.
3. Wire and cable industry: cable wrapping insulation tape.

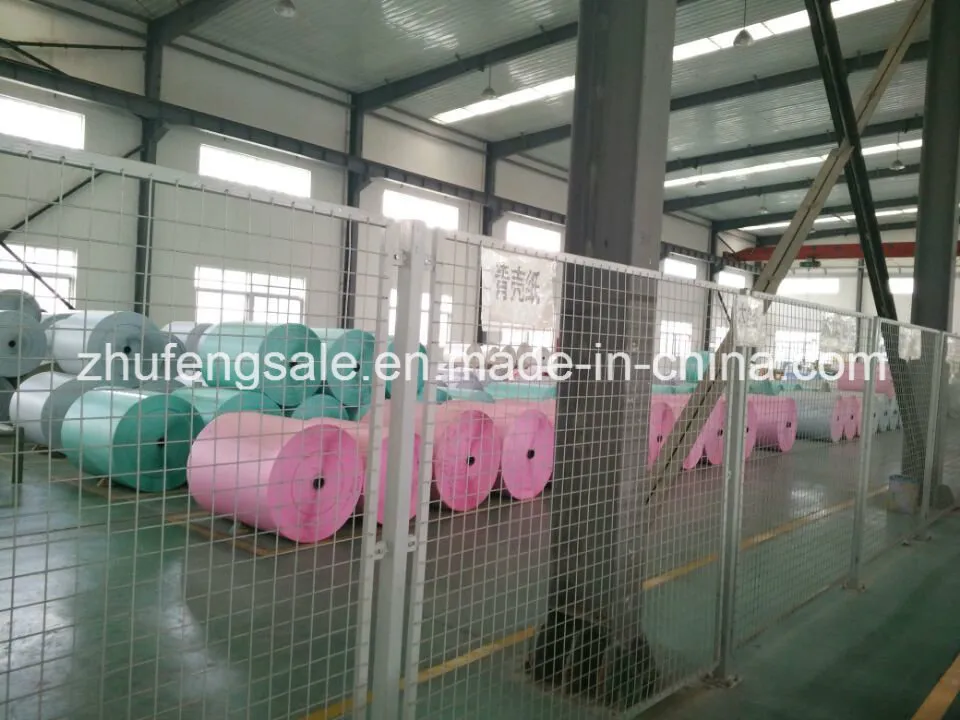

The company has slitting, stamping forming, and testing equipment to ensure the quality of various insulating forming materials
6641 F DMD Technical Data:
