ENVIRONMENTAL:
1.Storage: -40°TO +70°
2.Operation: -10°TO +60°
Conform to TIA/EIA 568B CATEGORY 6A
Mates with modular plug conforming to FCC part 68, Subpart F.

TM04C6AJKTL02+UTP180

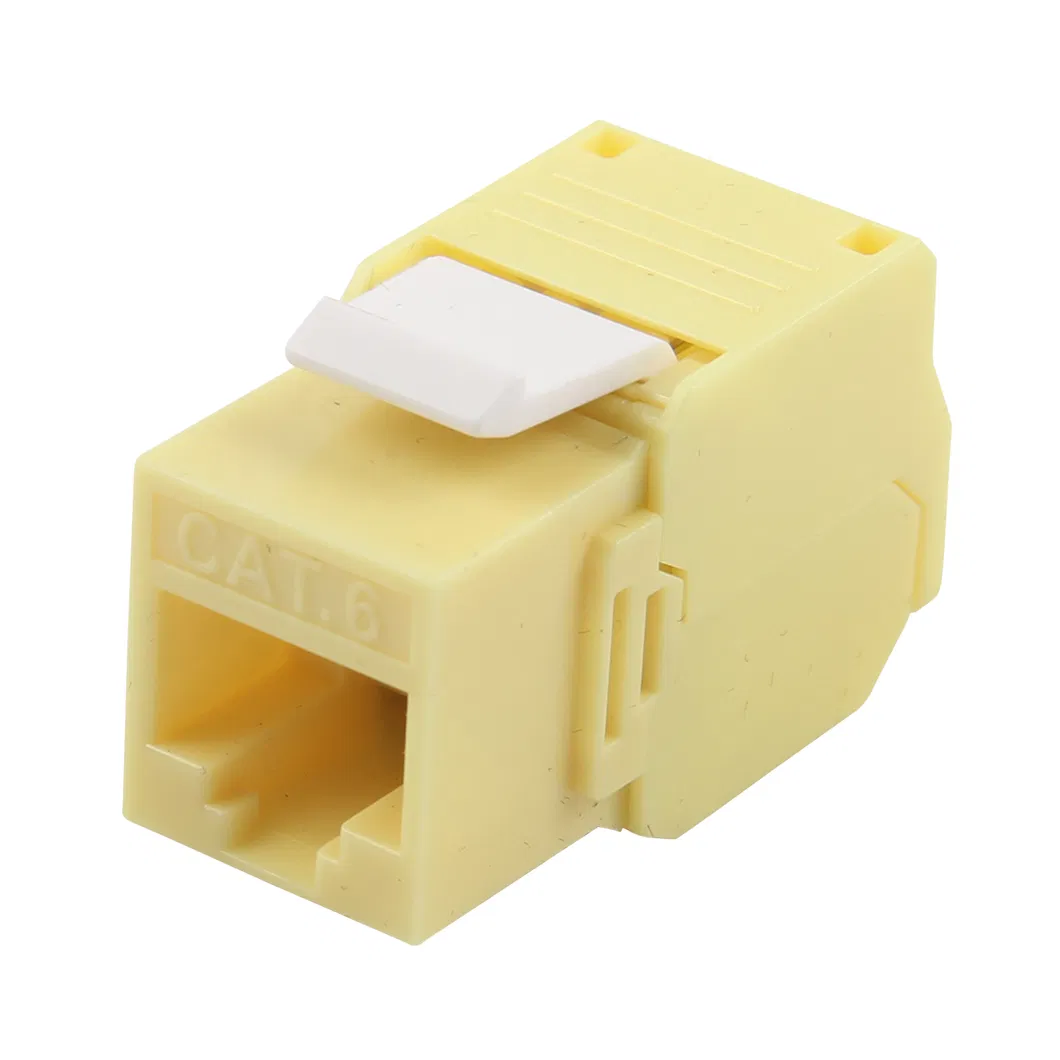

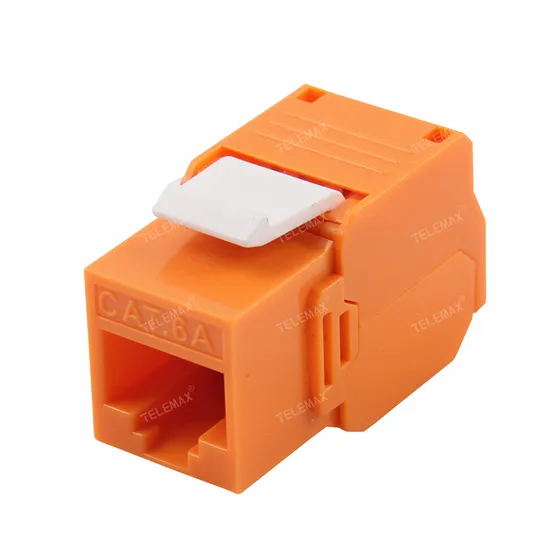

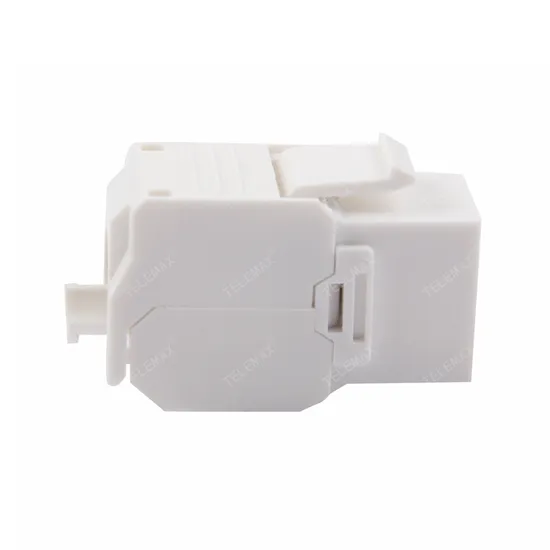

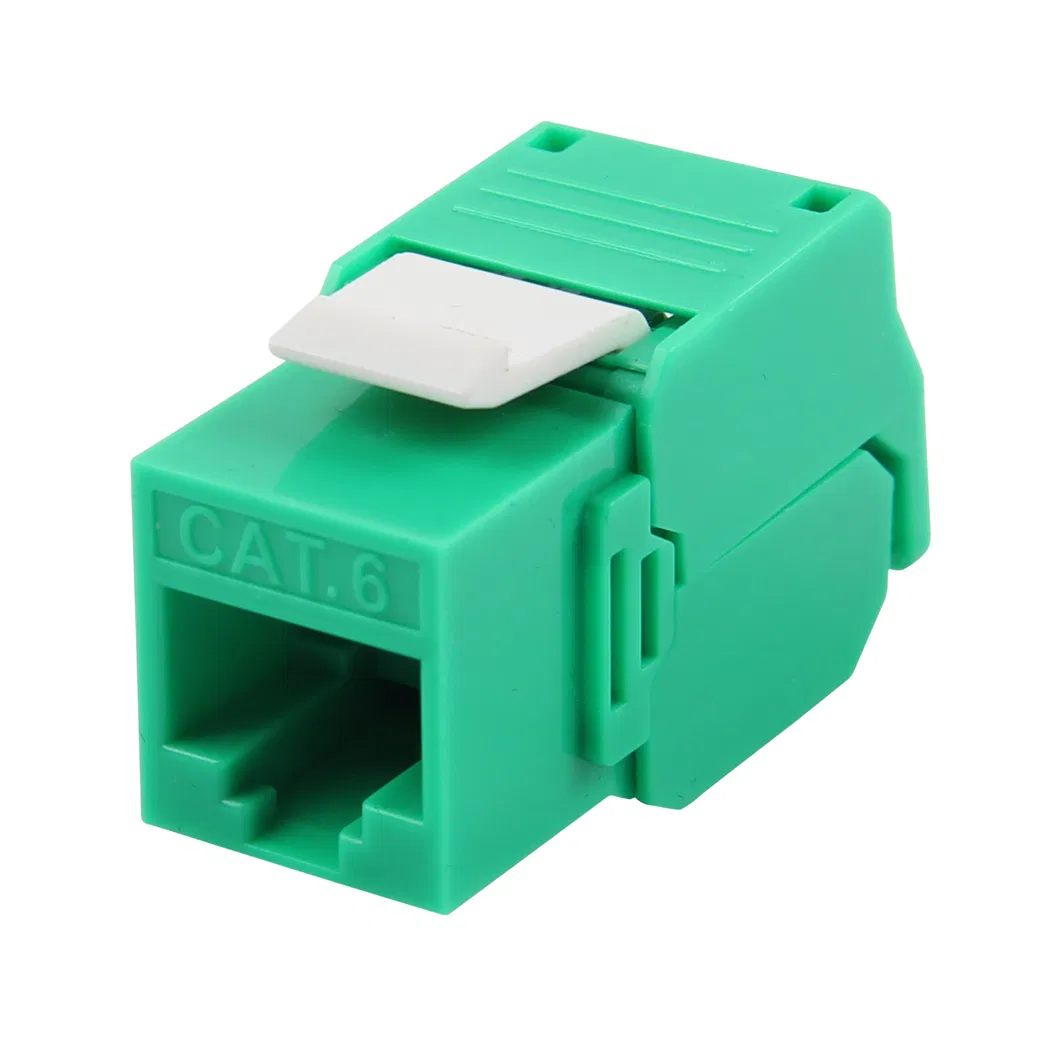

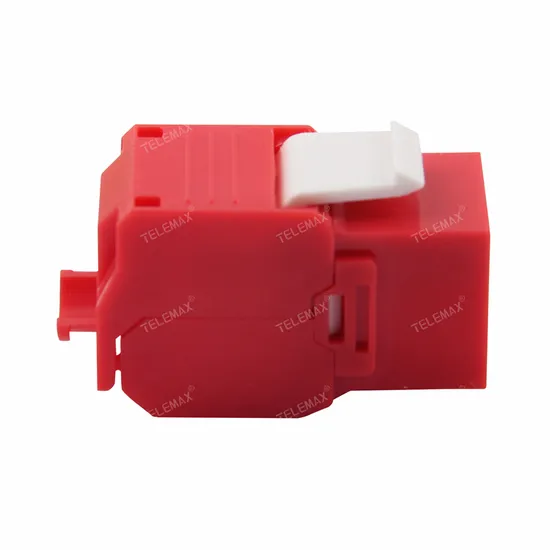

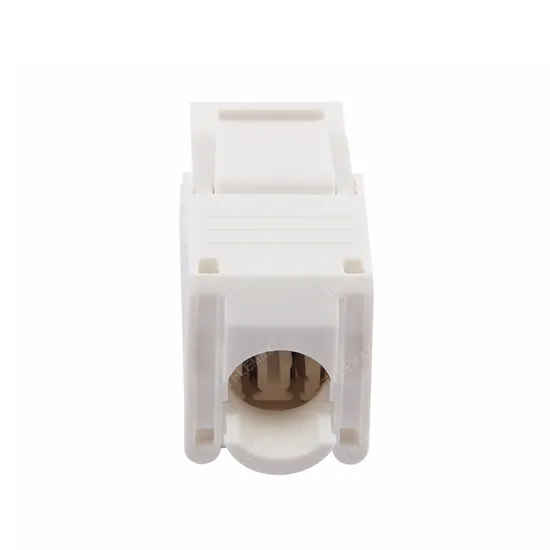

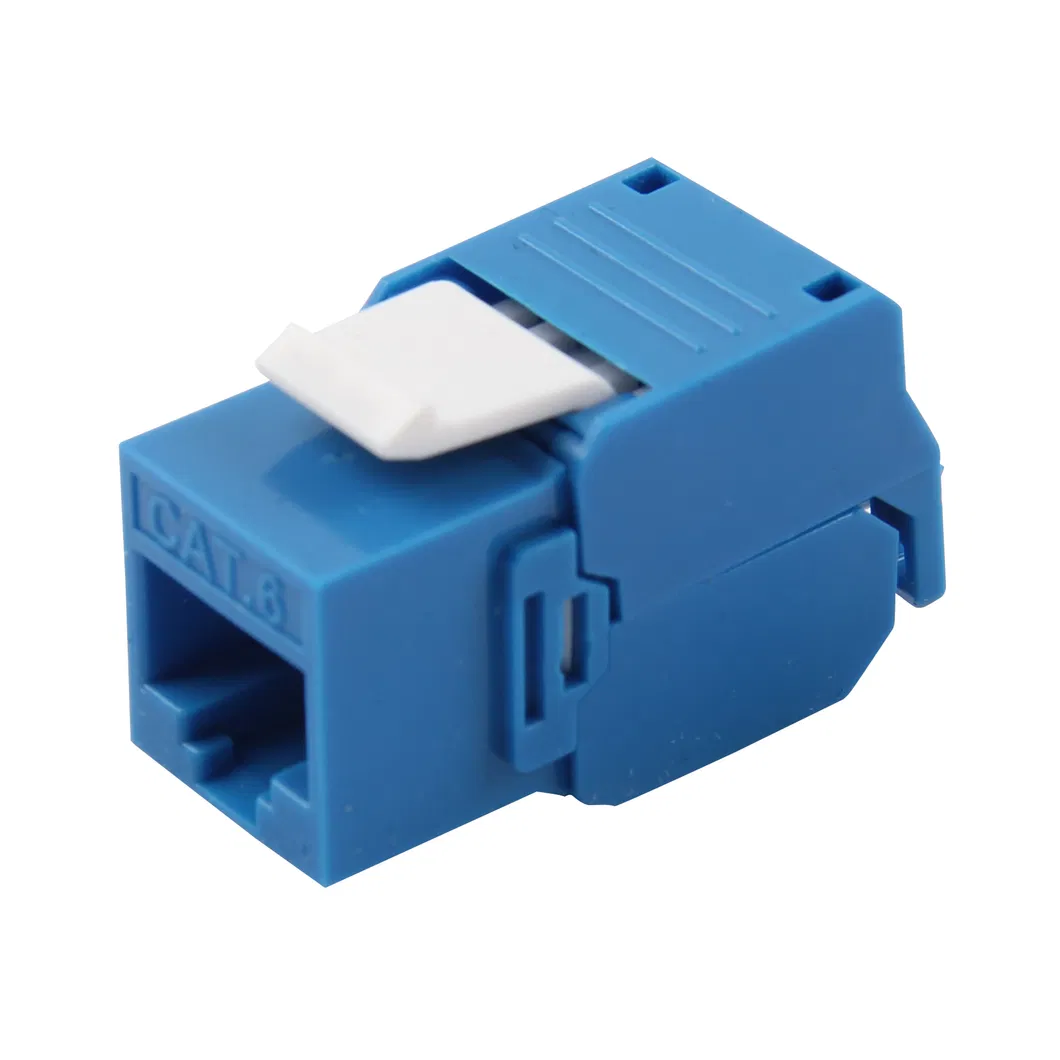

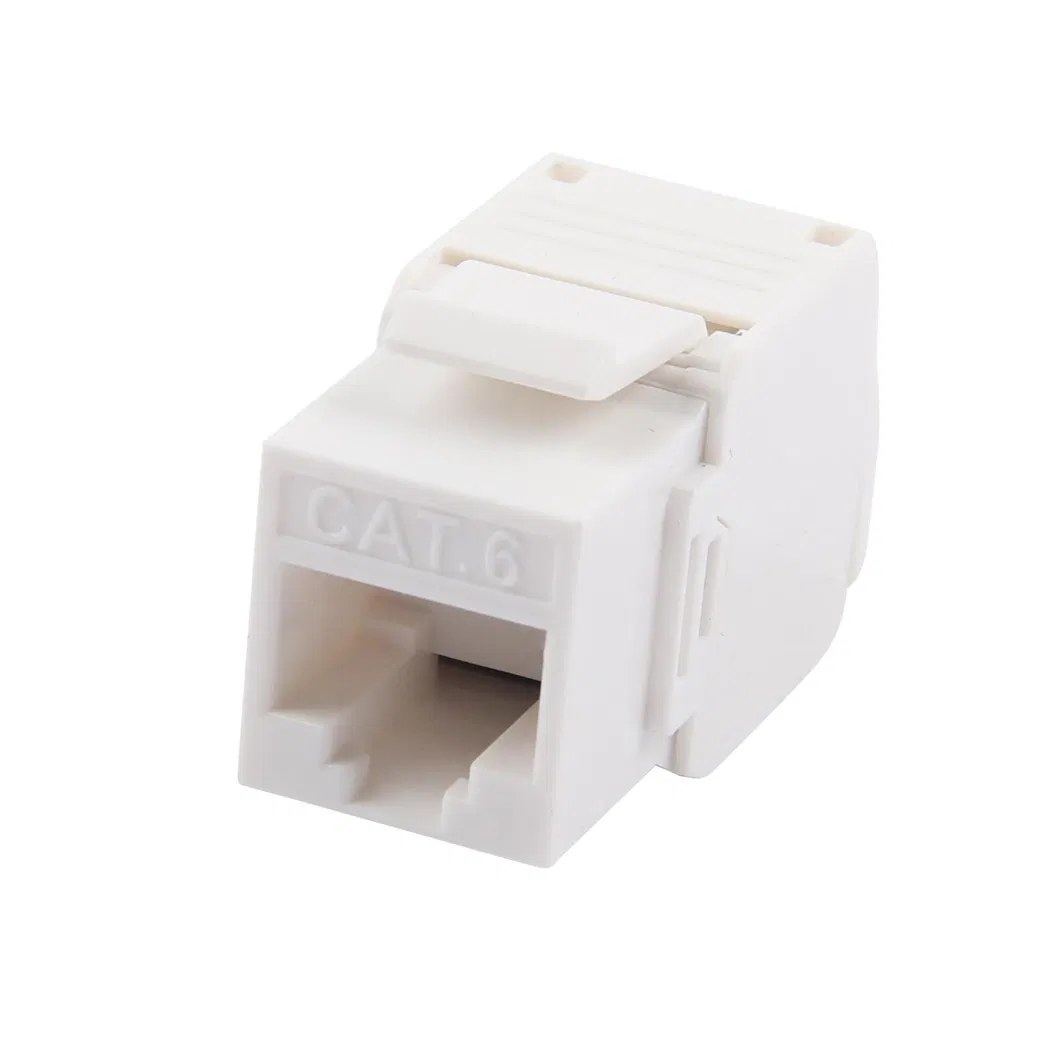

CAT5E/6/6A TOOL FREE KEYSTONE JACK UTP Type
MECHANICAL:
1.Housing material: QIMEI PC110 UL94-V0
2.Insert material: PBT+30%GF
3. PCB material: FR-4 T=1.6mm
4.Contact material: Phosphor bronze stamp PIN T=0.3mm
5. IDC Contact material: Phosphor bronze T=0.50mm WITH TIN PLATING
6.RJ45 JACK LIFE: 750 TIMES MIN
7.IDC LIFE: 200 TIMES MIN
8.WIRE: AWG 22~24
9.TIA CAT 6aPERM.LINK TEST: WORST PAIR NEXT MARGIN ≥5.0dB
10.TIA CAT 6 PERM.LINK TEST: WORST PAIR NEXT MARGIN ≥9.0dB
10. Retentiveness of insertion structure: 50N 60±5s
Remark:
6U'', 15U'', 30U'', 50U'' is available
OEM
Packing Information
Shenzhen TeleMax Technology Co., Limited, founded in 2002, business center and factory located in Shenzhen of China, As one leading ISO leading manufacturer of network cabling and Optical fiber cabling products, its products spread to South East Asia, Europe, Middle East, and America. In past year of 2010, the total sales amount up to 20 millions US dollar.
Presently, there are Oversea Dept, R&D Dept, Customer service Dept, Production Dept, and logistic Dept, logistics Dept setted up in TeleMax, total stuff up to 300 peoples.
TeleMax's products belong to copper to system, fiber system and telecom system, the main products include Cat. 5e/Cat. 6 LAN Cable, patch cord, patch panel, keystone jack, Faceplate; Optical Fiber Cable, Optical Fiber Cord, adapter, connector. Distribution Box, 10 pairs Telecom module, network cabinet.
TeleMax's Capacity is very strong, which can meet all kinds of orders' requirement.

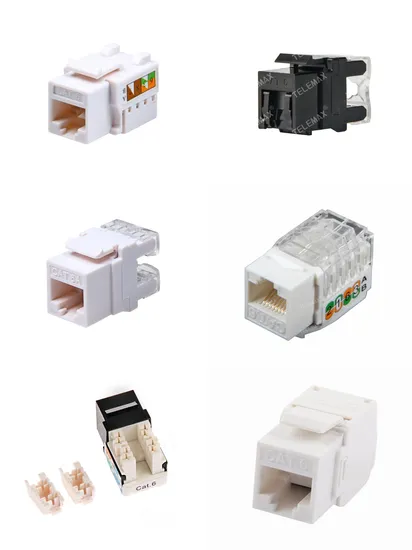

Keystone jack: 600 000 PCS/Month
Patch Panel: 50 000 PCS/Month
Patch Panel: 600 000 PCS/Month
LAN Cable: 8000 Rolls/Month
TeleMax's Certificates
ISO 9001: 2008
UL
CE
