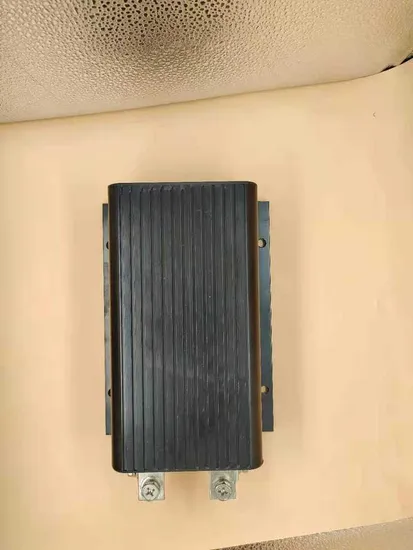

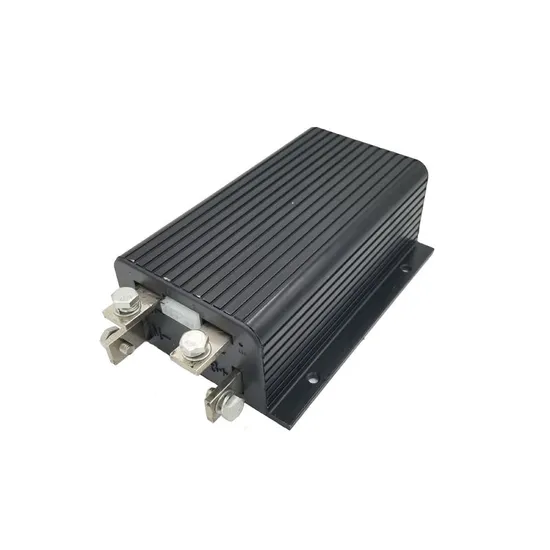

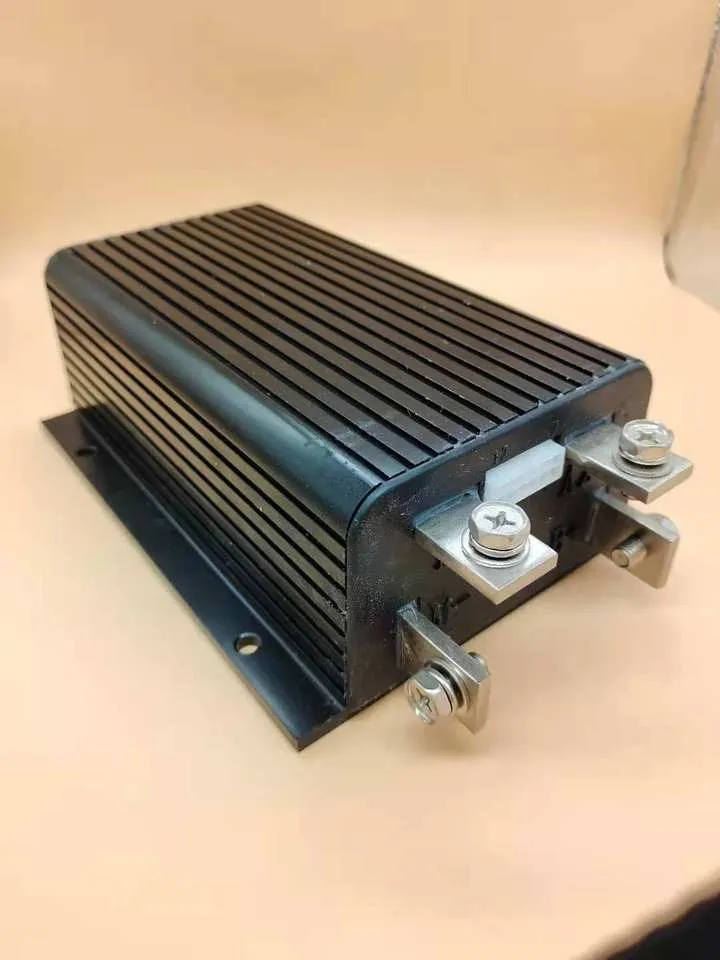

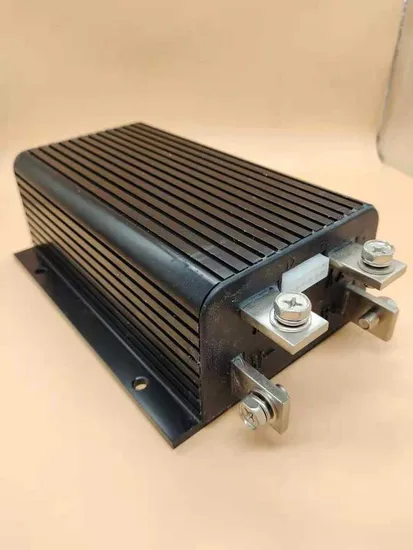

LK48DP360BL-R01

Products Description
Product Application
Features
1. PWM pulse width modulation
2. Speed regulation ratio: 1:60
3. Speed regulation mode:Model suffix with R01 means speed regulation mode of:
Potentiometer (10KΩ/2W)
4. Input impedance: ≥10KΩ
5. Working voltage range: ±25% of nominal voltage
6. Soft start time: 1-5 S
7. Ambient temperature: -10ºC~+60ºC
8. Ambient humidity: relative humidity ≤80RH.(non condensing)
9. Current restriction protection
10. Remote start-stop can be realized
11. Applied for permanent magnet, separate excitation and series-excited motor
12. Thermal protection for controller cutting off output in case of overheating for controller to effectively protect controller
and traveling crane safety.13. Able to directly judge source of fault through luminous diode under working condition.14. Stepless speed regulating and anti-phase braking control
15. Built-in precharging resistor and polarity protection diode provide convenience for installation and use
16. Under voltage and over voltage protection effectively protects storage battery and all components of controller assembly
17. 90 seconds no acceleration signal input can automatically cut off the power of contactor magnet coil to save the energy of
storage battery.

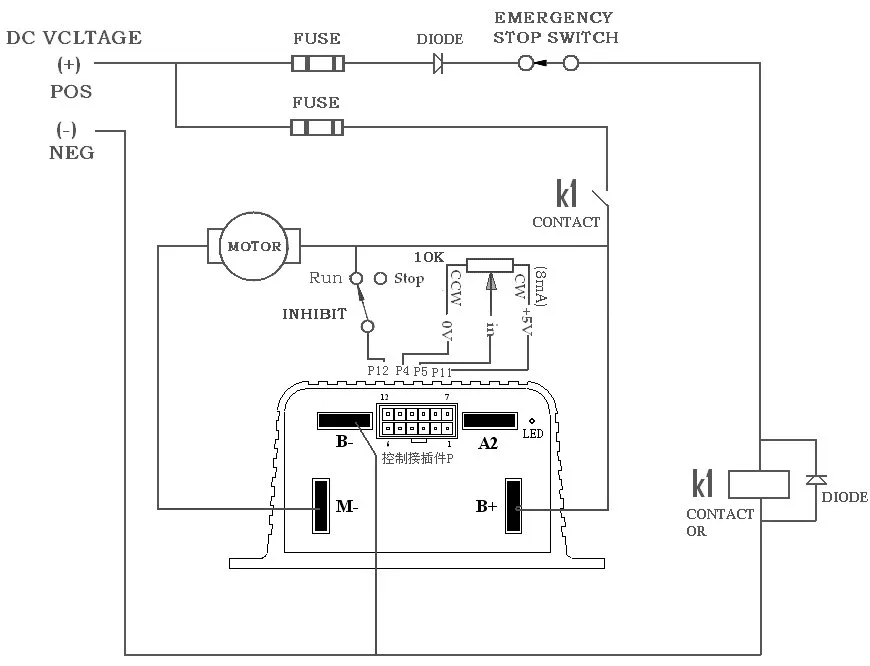

Connection for fuse, power switch and motor
1. It must be equipped with a fast fuse and electromagnetic relay contactor between power input terminals of the controller and the power supply (storage battery) to realize emergency power cut in case of emergency. A fast fuse shall also be equipped between the control circuit input terminals of the controller and the power supply (storage battery) in case of short circuit of the control circuit.(Note: selection for the fast fuse and electromagnetic relay contactor: the rated current value should be bigger or equal to
150-200% of the motor rated current, and recommend selection of 10A fuse for the control circuit)
