Sunhans High Gain 698-2700MHz WiFi 4G Mobile Signal Booster Outdoor Antenna
Preview
Basic Info.Product DescriptionCertifications
Basic Info.
| Model NO. | SHAN4G185WNF5 |
| Sturcture Form | Surface Antenna |
| VSWR | <1.5 |
| Frequency Range | 698-960 / 1710-2700MHz |
| Antenna Gain | 5 dBi |
| Polarization Type | Vertical |
| Application | GSM/CDMA/PCS/3G/4G/WLAN System |
| Connector Type | N Female |
| Operation Temperature | - 45 Degree ~ + 85 Degree |
| Storage Temperature | - 45 Degree ~ + 85 Degree |
| Antenna Weight | 296g |
| Usage | Communication Antenna |
| Usage Occasion | Base Antenna |
| Base Antenna | High Gain Antenna |
| Dimensionality | One-Dimensional Antenna |
| Transport Package | Carton |
| Specification | 20.5x6.3 |
| Trademark | Sunhans |
| Origin | China |
| Production Capacity | 8000PCS/Month |
Product Description
Product Description
Preview

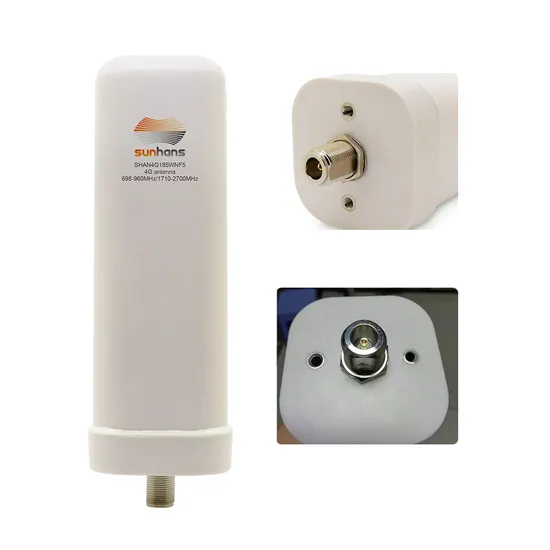

Sunhans 5dBi 698-960MHz/ 1710-2700MHz 4G Mobile Signal Booster Omni Antenna with Waterproof
Feature:
Exquisite appearance
Good impact resistance,waterproofing and
anti-corrosion
ability
Full day working
Optimized dimension
High gain,low standing
wave,strong anti-interference ability
Feature:
Exquisite appearance
Good impact resistance,waterproofing and
anti-corrosion
ability
Full day working
Optimized dimension
High gain,low standing
wave,strong anti-interference ability
Preview
Preview
Application
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system

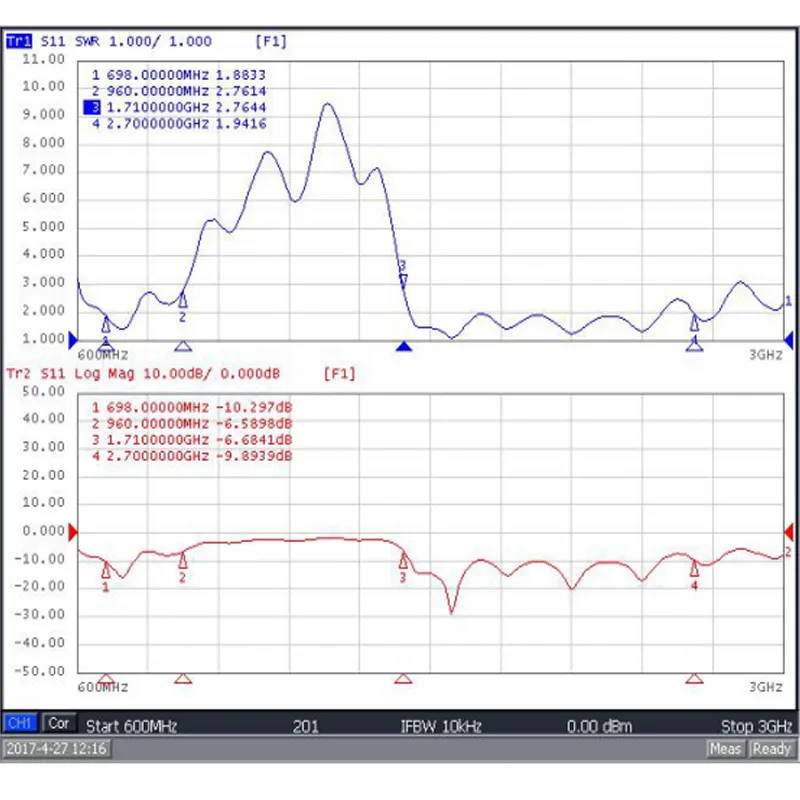

Testing Report,VSWR Curve
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system
Testing Report,VSWR Curve
Preview
Preview

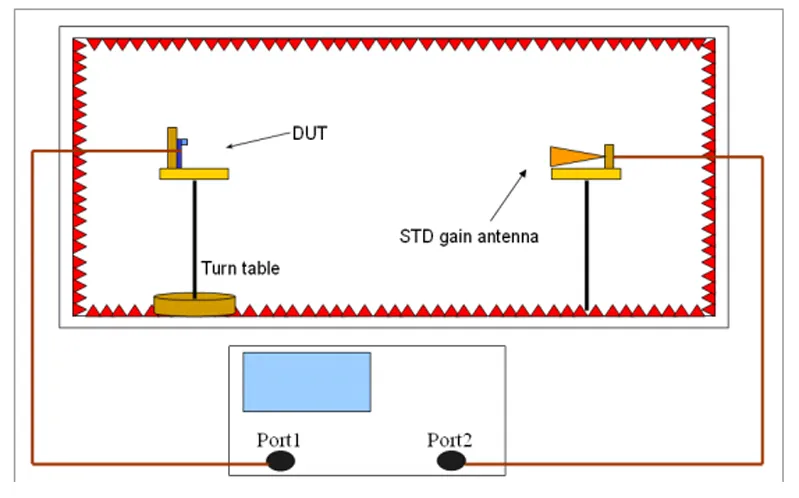

Antenna Radiation Pattern
Preview
Preview

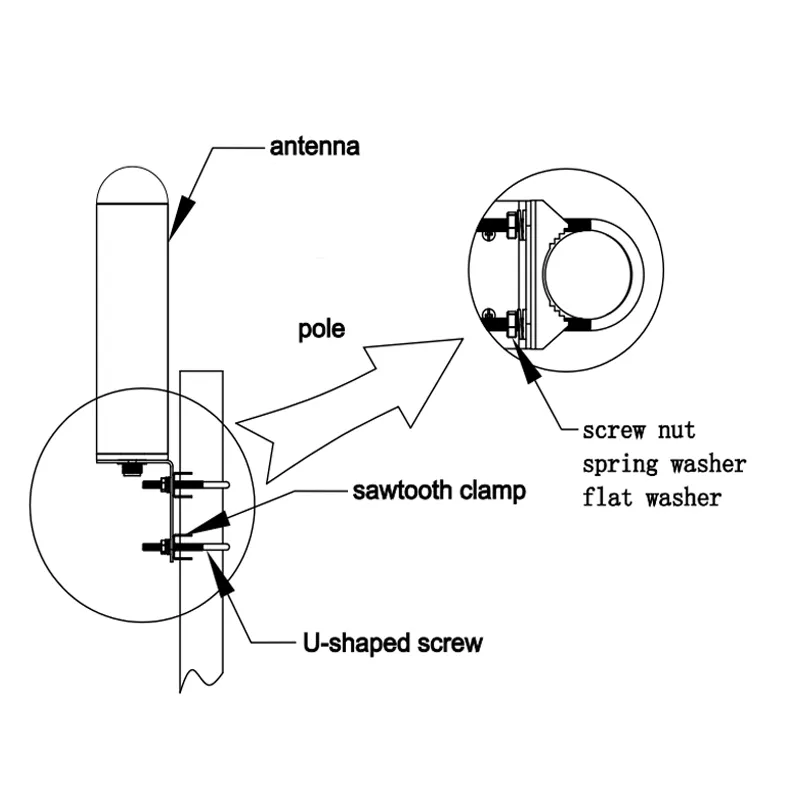

Antenna Installation Instructions
1.
1.
Preview
Preview
2.
1. Place the M6 U-shape screw through the
holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.
About us
Our Service:
♦
Test process : every items will be testing before shipping, to make sure the quality.♦
Short leading time: 1-2.5 working days for samples or small order,
10-15 working days for bulk order.♦ One year warranty: for you without trouble of after-sales maintenance.♦ Quality Guarantee: Return rate is only 0.001.♦ Support small orders: help your business from small to big.♦ OEM & ODM are welcome.
1. Place the M6 U-shape screw through the
holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.
About us
Our Service:
♦
Test process : every items will be testing before shipping, to make sure the quality.♦
Short leading time: 1-2.5 working days for samples or small order,
10-15 working days for bulk order.♦ One year warranty: for you without trouble of after-sales maintenance.♦ Quality Guarantee: Return rate is only 0.001.♦ Support small orders: help your business from small to big.♦ OEM & ODM are welcome.
Preview
Certifications
Name:ROHS 1800MHZ
