Sunhans 15dBi 690~2700MHz Satellite Dish Omni Fiberglass Antenna for Mobile Signal Booster Amplifying Repeater

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	SH-MBF-A15
Sturcture Form	Surface Antenna
Usage	Communication Antenna
Usage Occasion	Base Antenna
VSWR	<1.5
Antenna Gain	15 dBi
Polarization Type	Vertical
Maximum Input Power	100W
Connector Type	N Female or Requested
Lightning Protection	DC Ground
Mounting Way	Pole-Holding
Mounting Hardware	D35-50mm
Base Antenna	High Gain Antenna
Dimensionality	One-Dimensional Antenna
Transport Package	Carton
Specification	D50x250
Trademark	Sunhans
Origin	China
Production Capacity	8000PCS/Month

Product Description

Sunhans 15dBi 698-960MHz/ 1710-2700MHz 4G Mobile Signal Booster Omni Antenna with Waterproof

Preview

Product Description

Preview

Feature:
Exquisite appearance.
Good impact resistance,waterproofing and
anti-corrosion
ability.
Full day working.
Optimized dimension.
High gain,low standing
wave,strong anti-interference ability.

Preview

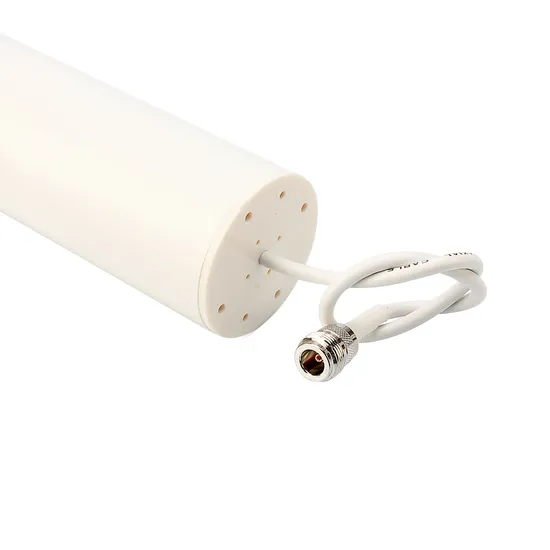

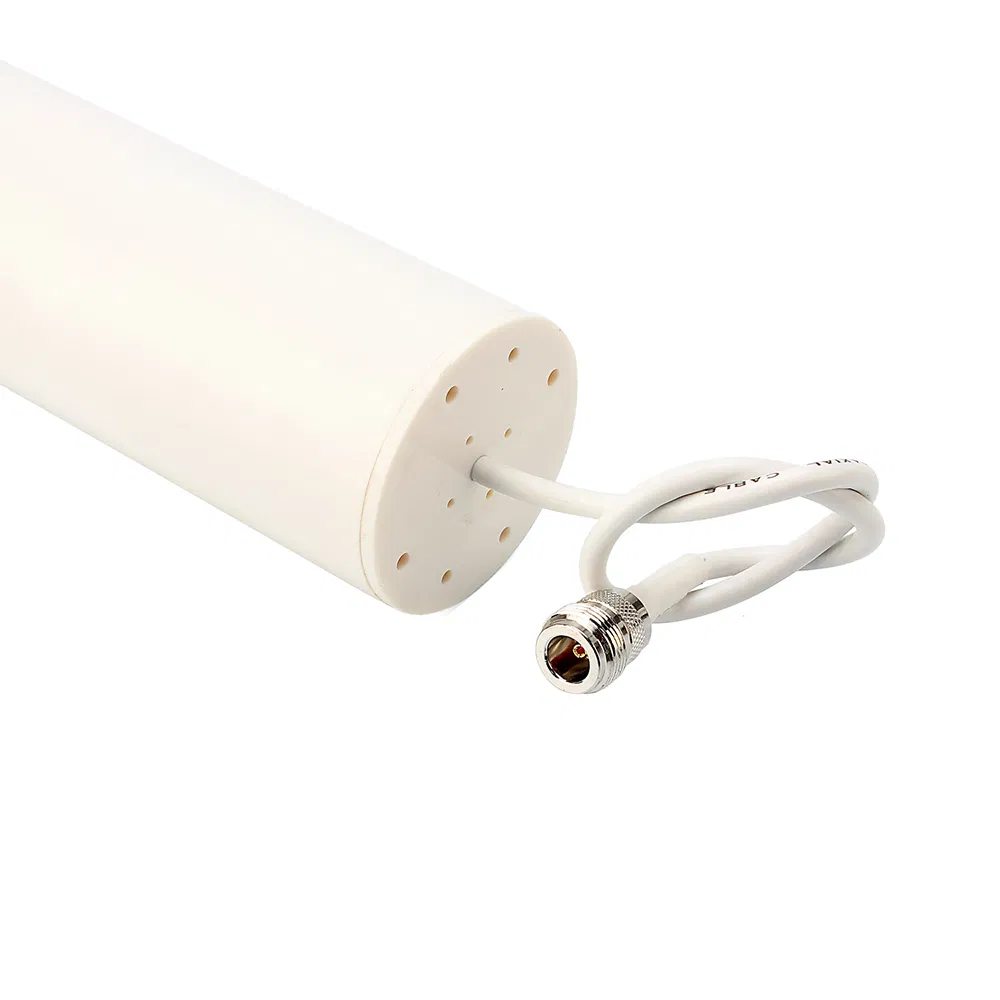

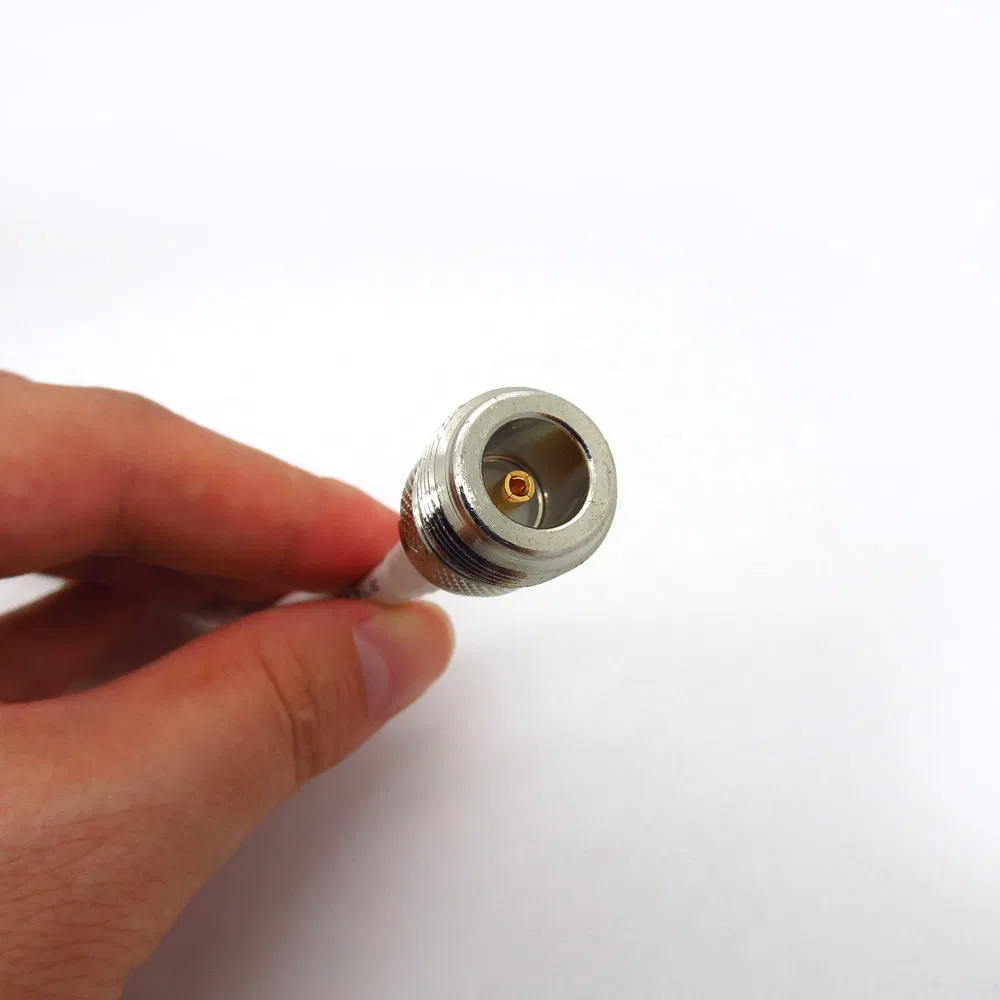

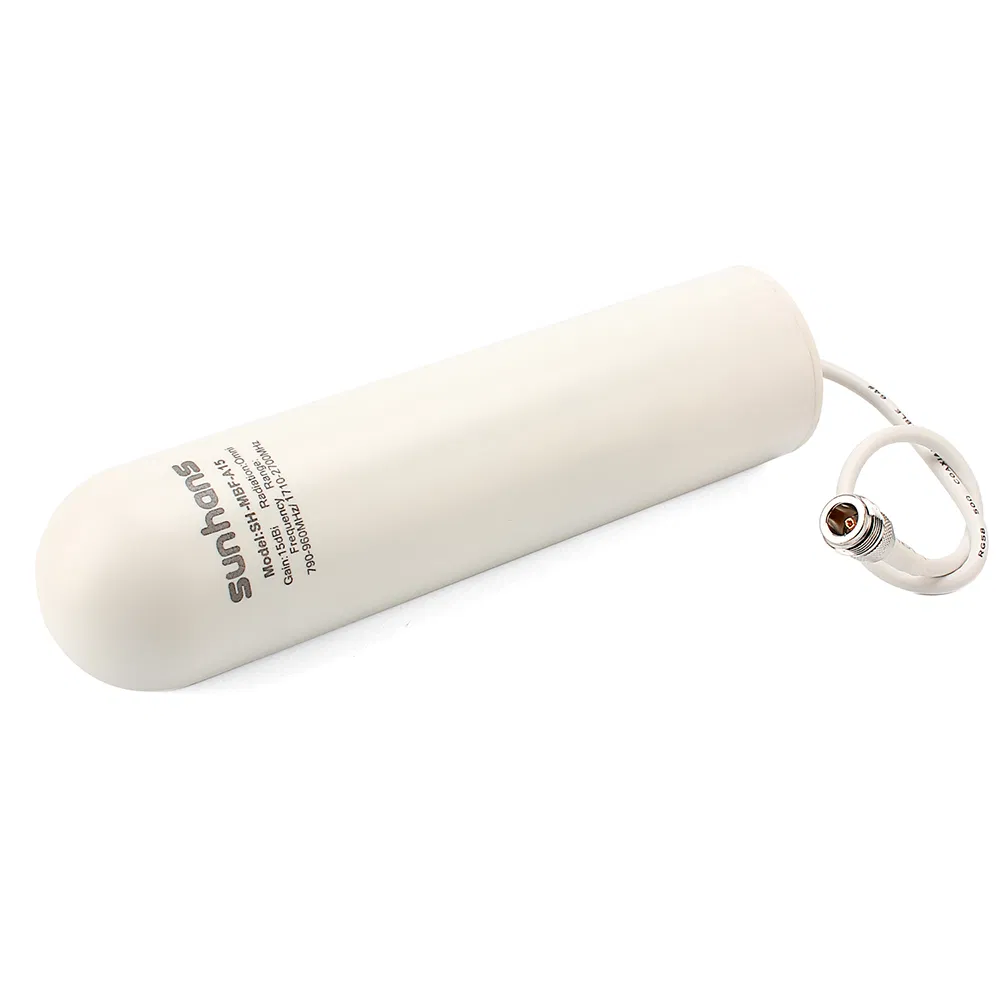

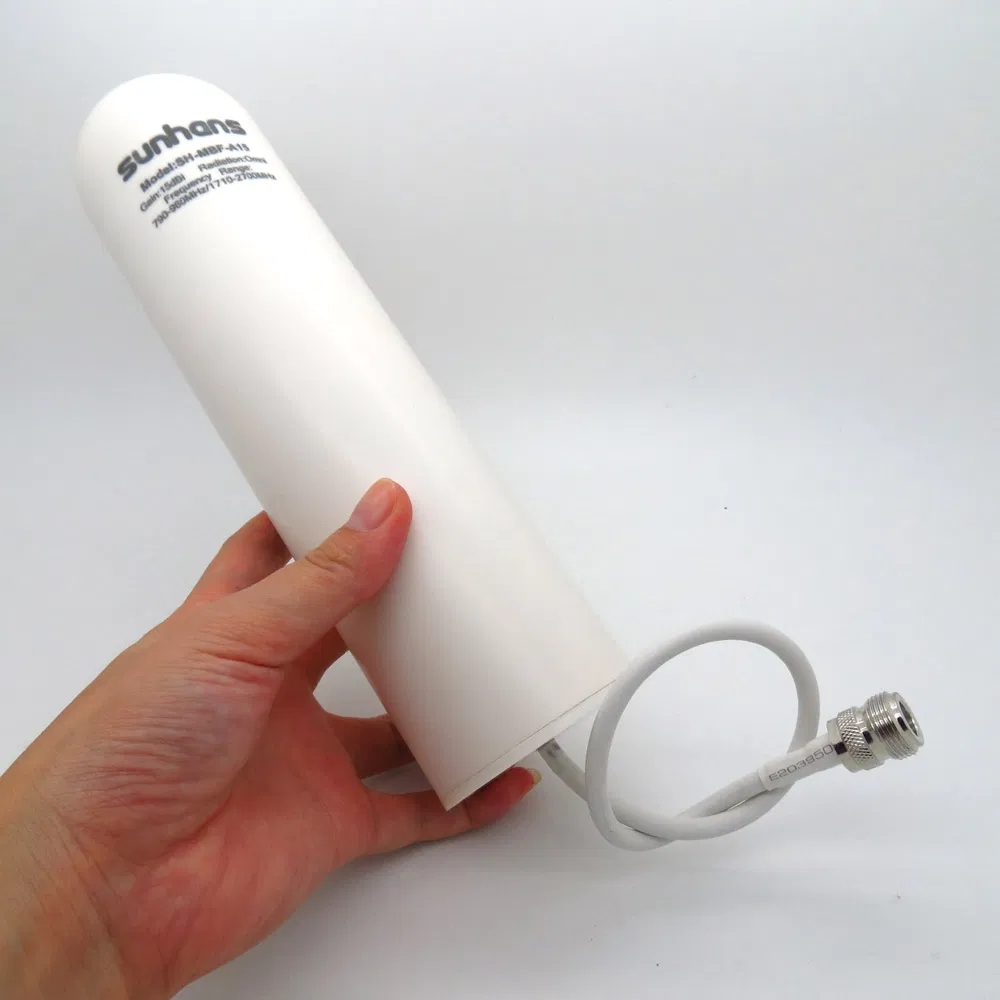

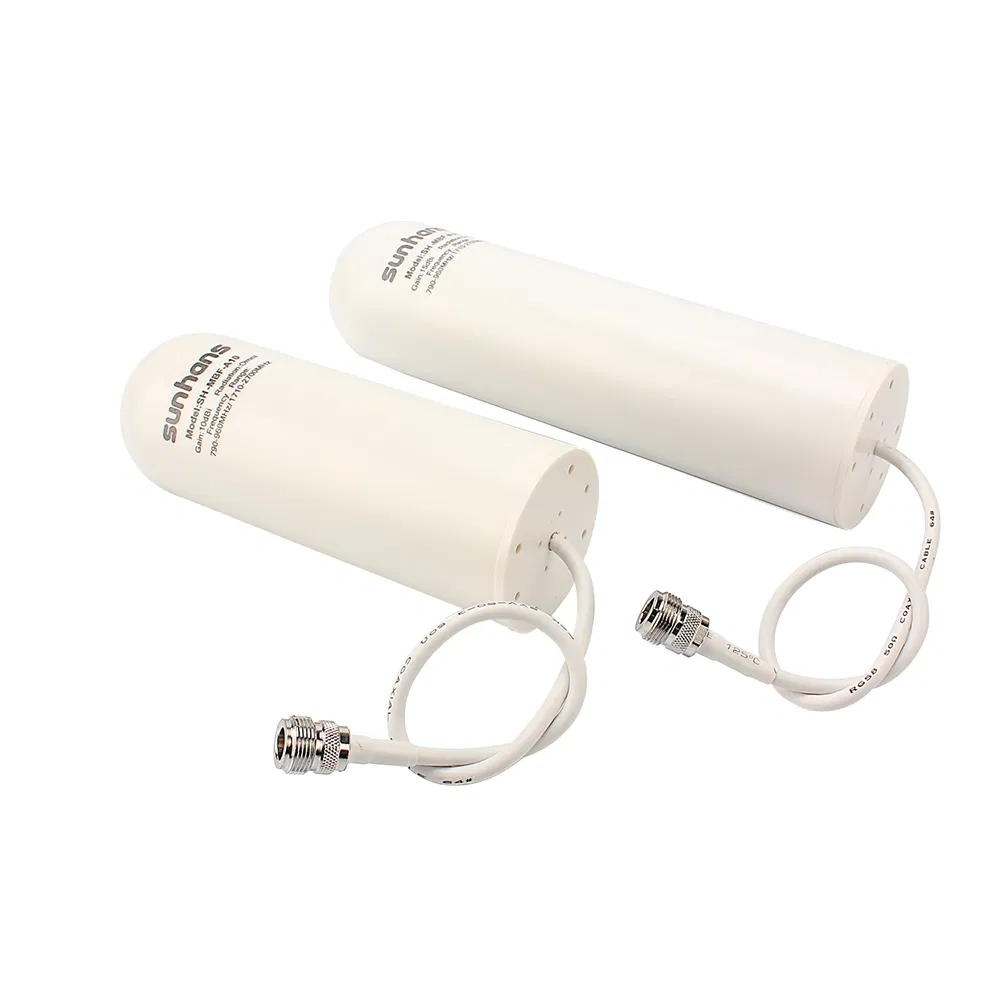

Detailed Photos

Preview

Product Parameters
Application
GSM/CDMA/PCS/3G/4G/WLAN system
Point-to-multipoint system

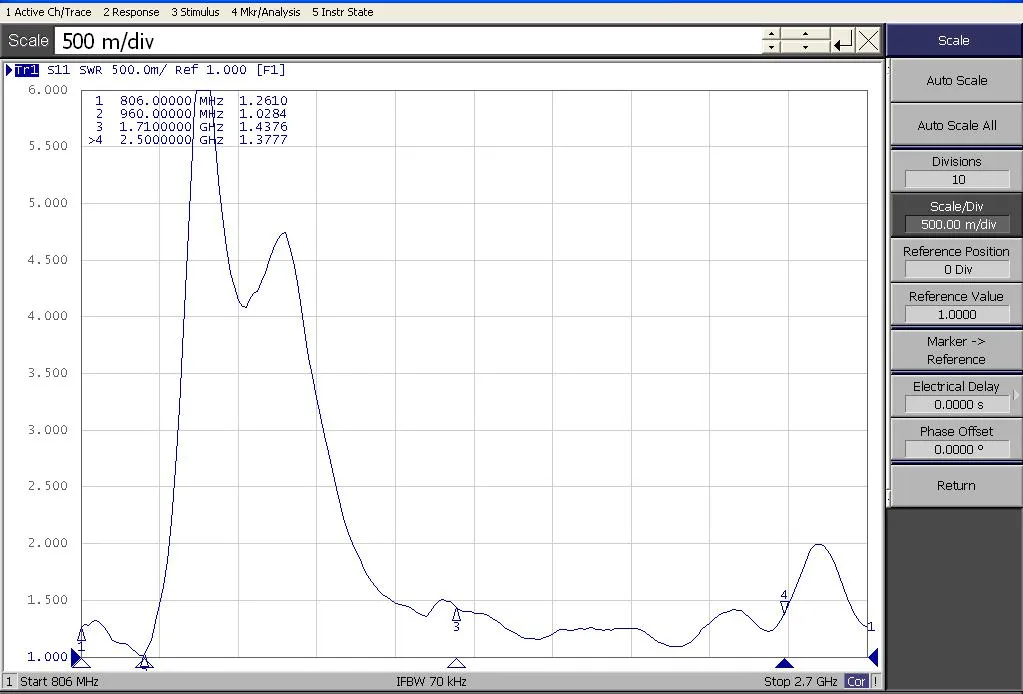

Testing Report,VSWR Curve

Preview

Installation Instructions

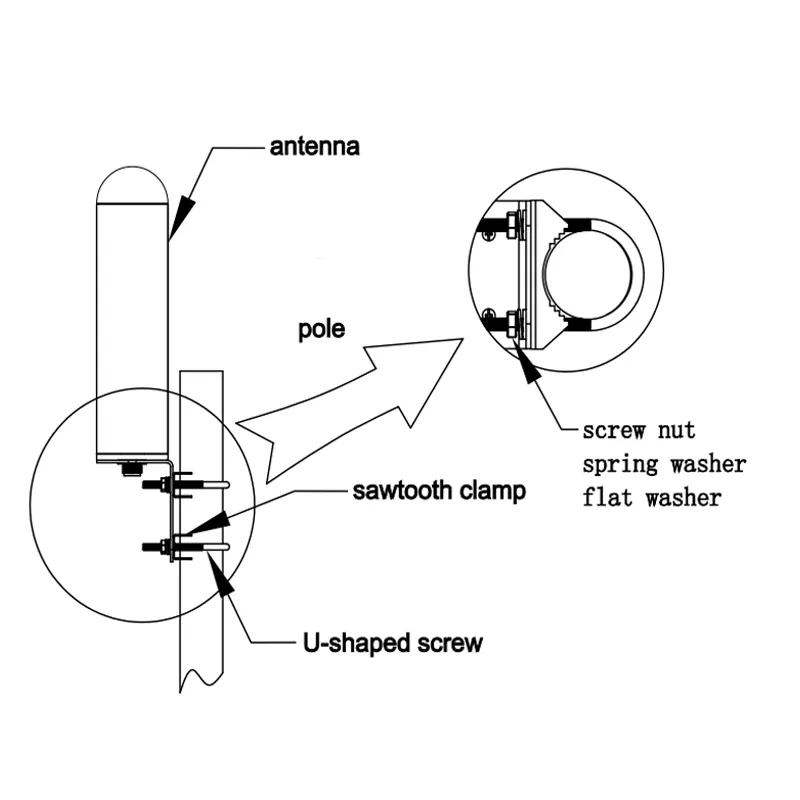

Antenna Installation Instructions
1.

Preview

2. Installation Steps
1. Place the M6 U-shape screw through the
holes on the clamps to mount the antenna to the pole whose outer diameter is ¢35~¢50mm.Then put on the flat washer,the spring washer and twist all the nuts.
2.There should be at least three meters between the ground or floor and the antenna above.No huge building or metal object or any other obstacle or shelter nearby.
3.Adjust the mounting height of the antenna to the proper position to receive the best signal,then seal all the connections.
4.Please pay attention to lightning protection.

Preview

Company Profile

Preview

About us

Preview

After Sales Service
Our Service:
♦
Test process : every items will be testing before shipping, to make sure the quality.♦
Short leading time: 1-2.5 working days for samples or small order,
10-15 working days for bulk order.♦ One year warranty: for you without trouble of after-sales maintenance.♦ Quality Guarantee: Return rate is only 0.001.♦ Support small orders: help your business from small to big.♦ OEM & ODM are welcome.
