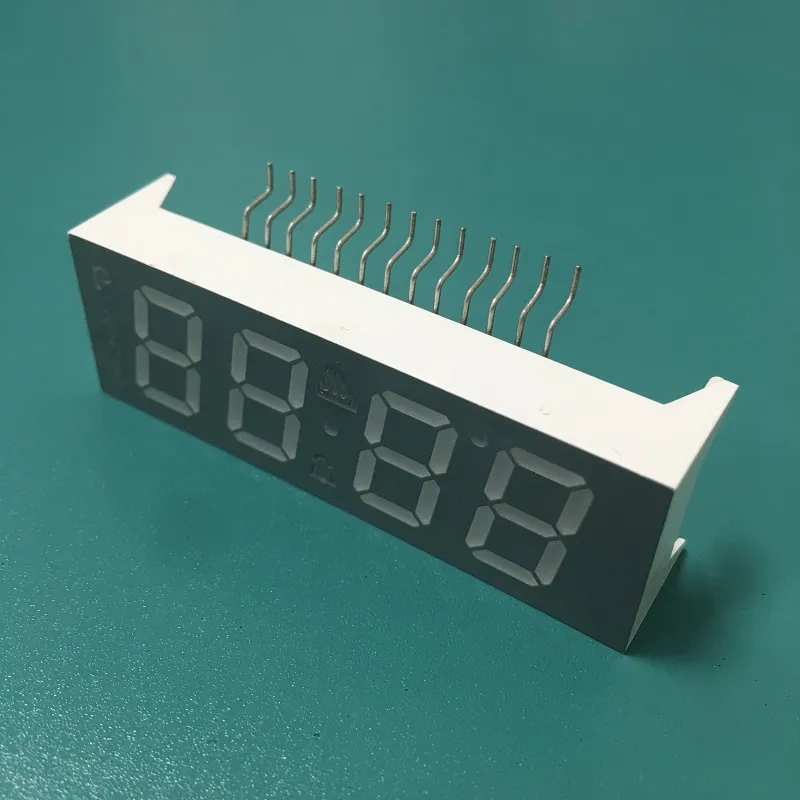

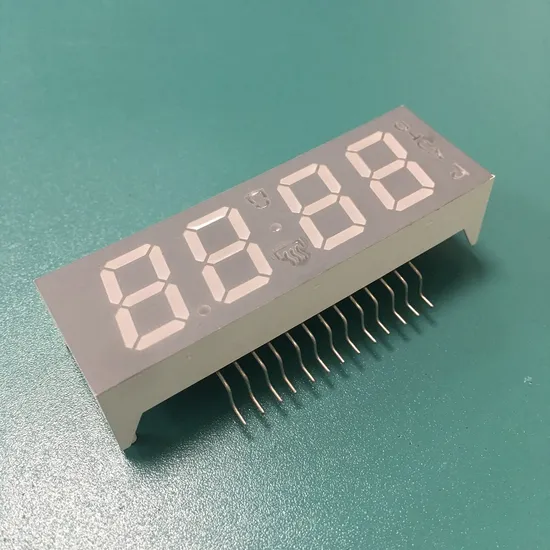

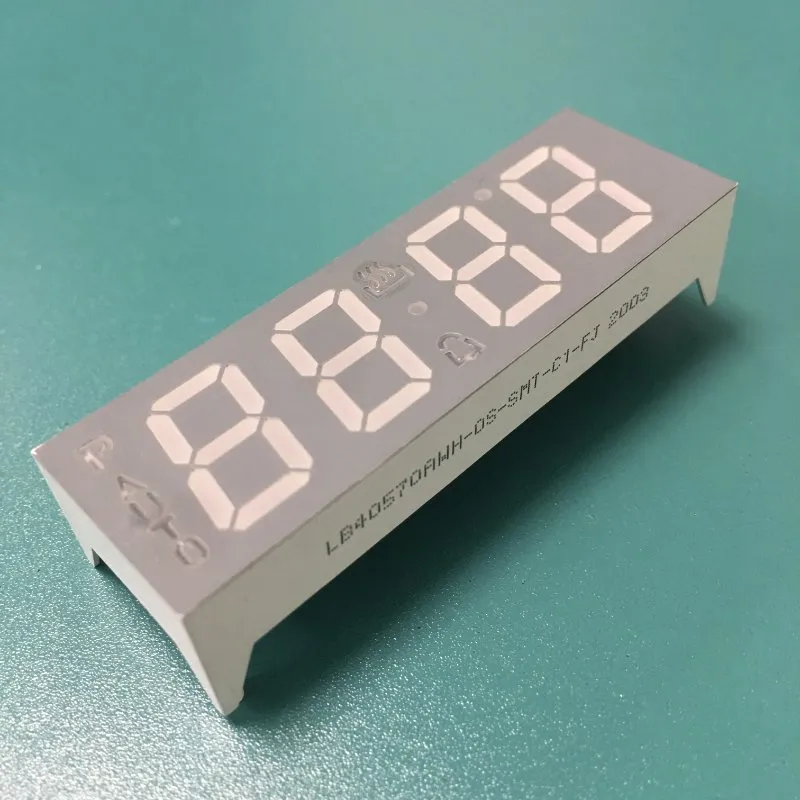

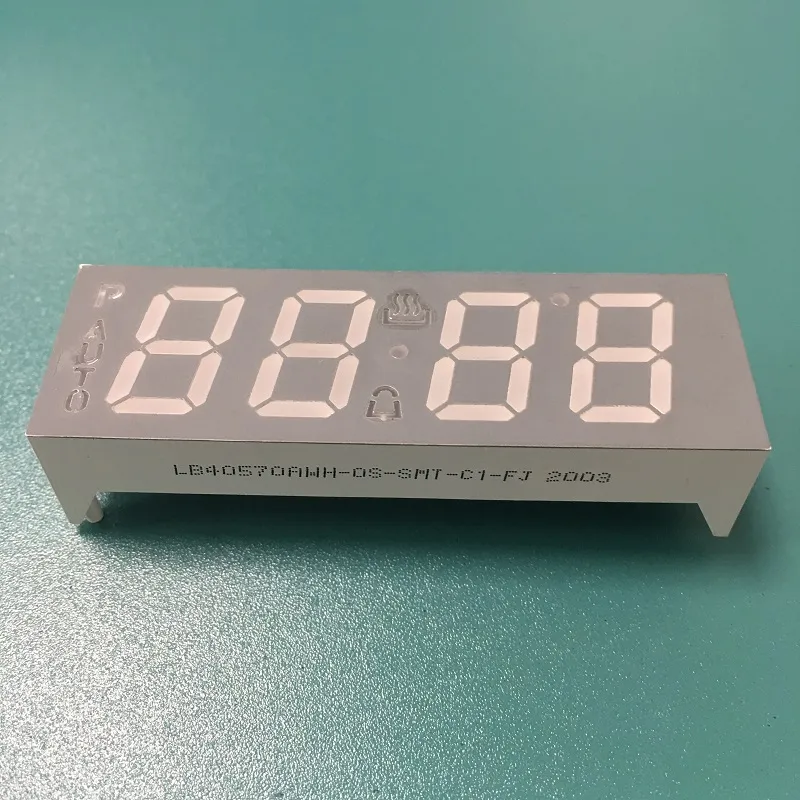

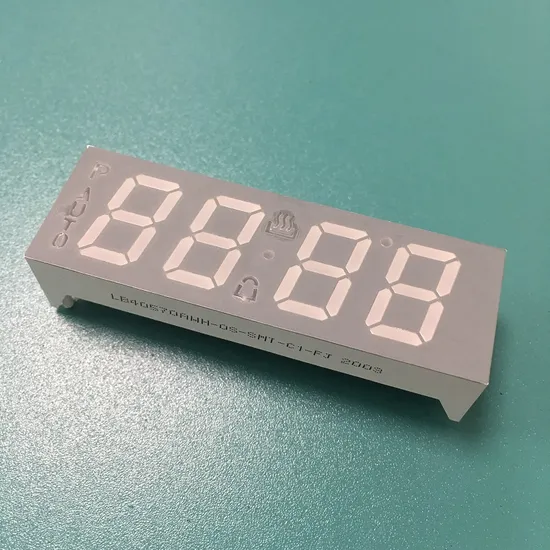

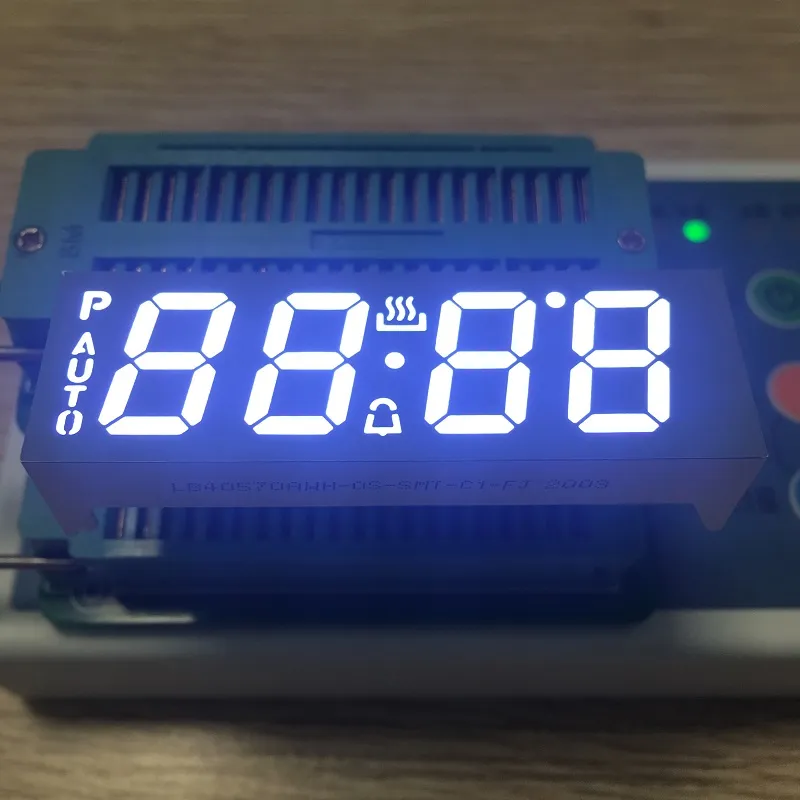

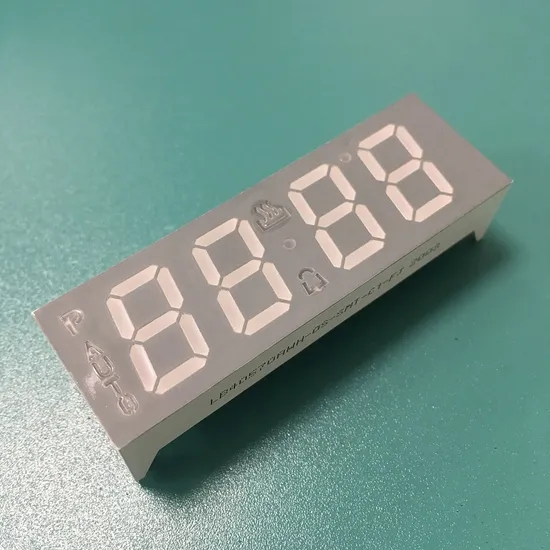

Pure White 7 Segment LED Display 4-Digit Common anode for Built-in Oven
Packing dimensions: 58x19x13.5mm
Character height: 14.2mm (0.56")
Polarity: common anode
Working temperature: +120°C
Colour: Ultra bright white
Face colour:
Gary surface whitesegment
cover
film
Color temperature: 6000-6800K
Luminous intensity: 100-120mcd
Forward voltage: 2.8-3.2V/led
Forward current:5-10mA/led
Emitting colours: red, blue, green, white, amber and orange

Absolute Maximum Ratings(Ta=25ºC)
Parameter
Symbol
Ratings
Unit
Forward Current(per dice)
Ipm
20
mA
Reverse Voltage(per dice)
Vr
5
V
Power Dissipation(per dice)
Pm
80
mW
Operating Temperature Range
Topr
-40~+85
ºC
Storage Temperature Range
Tstg
-40~+85
ºC
Solder Temperature(≤3 seconds)
Th
260
ºC
Code:Yellow Green- J
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
1.8
2.4
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
30
40
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
569
574
nm
Code:Amber/Yellow
-Y
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
1.8
2.5
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
60
80
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
585
595
nm
Code:Orange -F
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
1.8
2.4
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
60
80
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
600
605
nm
Code:Super
Bright Red -R
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
1.8
2.2
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
50
60
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
630
635
nm
Code:Ultra Bright Red -UR
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
1.8
2.2
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
80
100
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
625
635
nm
Code:Pure Green -G
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
2.6
3.2
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
120
180
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
515
525
nm
Code:Ultra Bright Blue -BH
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
2.8
3.2
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
120
140
mcd
Spectrum With Of Half Value
△λ
If=10mA
20
nm
Wavelength
Dλ
If=10mA
460
465
nm
Code:Ultra Bright White -WH
Parameter
Symbol
Condition
Min
Typ
Max
Unit
Forward Voltage
Vf
If=10mA
2.8
3.2
V
Reverse Voltage
Vr
Ir=10uA
5
V
Luminous Intensty
Iv
If=10mA
120
140
mcd
LED color Temperature
K
If=10mA
5500
20
6800
K
Chromaticity Coordinates
X/Y
If=10mA
0.29,0.32
0.30,0.33
nm
High luminous intensity
Low power consumption
Stable performance
Continuous uniform segments
Big viewing angle
Long lifetime
IC Compatible
RoHS Directive-compliant
OEM and ODM orders are accepted
Applications: ideal for home appliances, built-in oven control, multiple functions digital oven timer control
