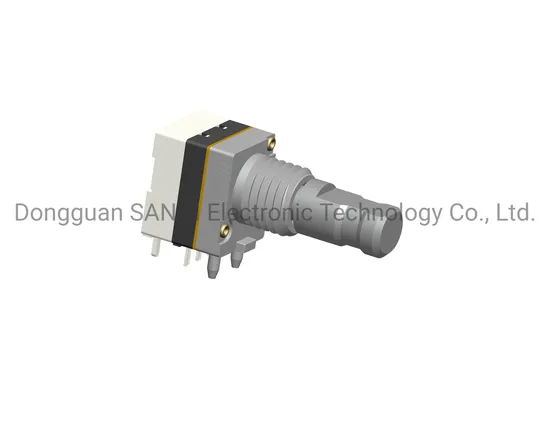

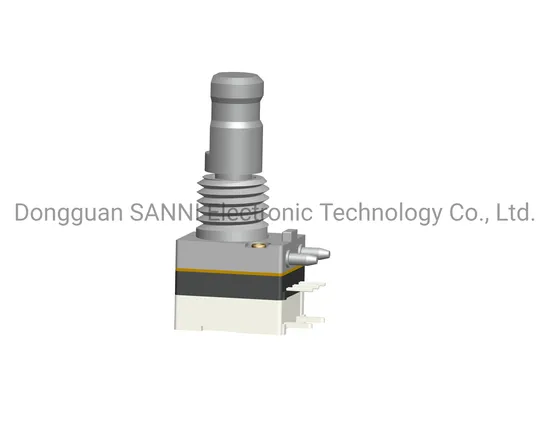

Re8141m Push Switch 18 Detent 8mm Metal Shaft Sealed Rotary Encoder

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	RE8141M
Operating System	Contact Brush Type
Signal Output	Long Drive Output
Axle Sleeve Type	Empty Type
Package	SMD
Installation Form	Axle Sleeve Type
Axonia	Servo Installation Type
Switch Type	Push
Switch Travel	0.5mm
Detent	18

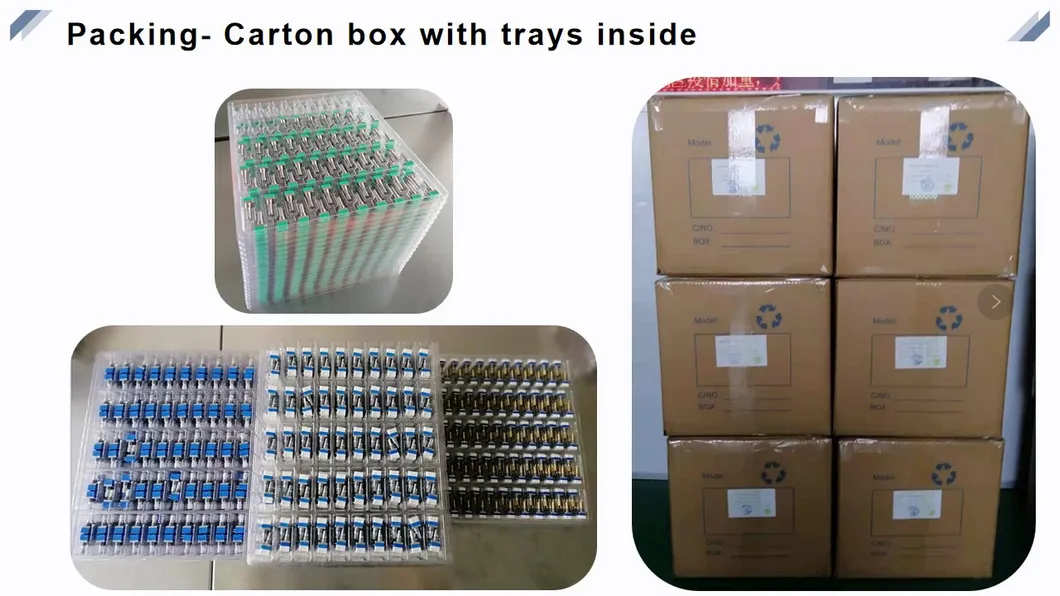

Transport Package	Carton Box
Specification	8mm
Trademark	SANNI
Origin	China
Production Capacity	100000PCS Per Year

Product Description

Preview

Features
RoHS compliant
Seal type
Small volume
Structural diversification
High quality
Application
Indeal for volume control and car amplifier,walkie-talkie.Switch performance
circuit type: Push
Rated Power: 0.1A 5V DC
Switching torque: 500gf.cm max
Switching travel: 0.5±0.3mm
Operating life without load: 100,000cycles 100mΩ
max
Operating life with
load: as rating 100,000cycles 200mΩ
max
Initial contact resistance: 100mΩ max
Insulation resistance :
100mΩ max min. 250V DC
Voltage proof: 300V AC for 1 minute
Mechanical characteristics
Total rotational angel: Incremental:360°
Rotational torque: 150~350gf.cm
Rotational stopper strength :3Kgf.min
Shaft push-pull strength: 8Kgf.max
Shaft wobble: Max:0.6*L/20mm P-P max.Electrical characteristics
Ratings power: 0.025W
Insulation
resistance : 100mΩ min.250V DC
Voltage proof:
300V AC for 1 minute
Durability
Operating life without load: 20,000 cycles 100mΩ max.Environmental performance
Cold: -40ºC±2ºC for 96h
Dry heat: 85ºC±2ºC for 96h
Damp heat: 40±2ºC, 90 to 95%RH for 96H
