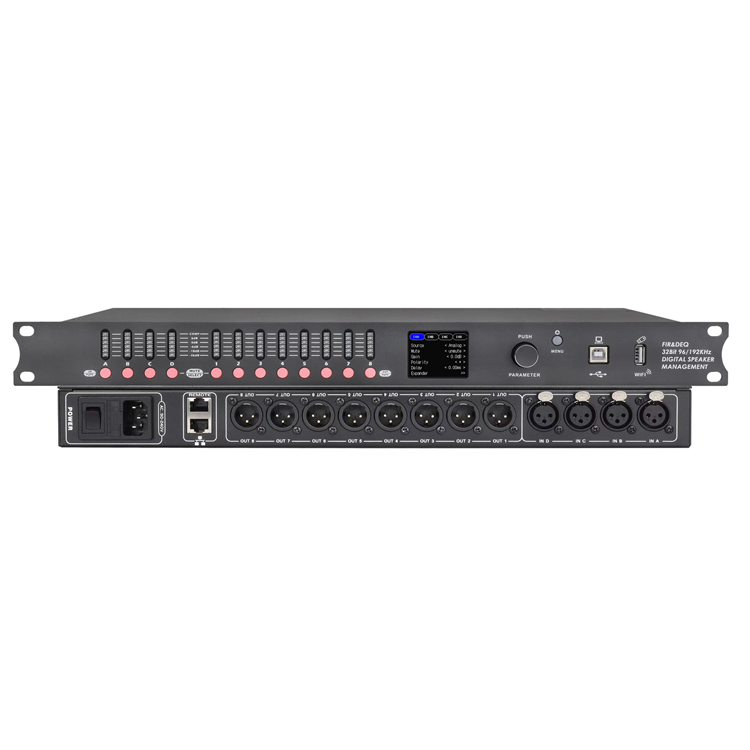

DPseriesDSPdigitalprocessor
1.96KHZ/192KHZsamplingrateswitch,32–bit400MHzDSPprocessor,24–bitAD/DAconversion.
2.Eachinputchannelisequippedwithsixgradeautomaticfeedbackinhibition.
3.Inputprocessingsectioncontains3DEQ,12PEQ,FIRfilter,noise,gain,mute,phaseanddelayprocessingandotherfunctions.
4.OutputprocessingpartincludesdividingFIRandIIRfilter,16parameterequilibrium,gain,mute,compressors,peakclipper,phase,timedelay,adjustprocessingunits,suchasmuscle.
5.Optionaldigitalinputandoutputfunction,hastheAES/theEBUinputandoutputchannels,thecannoninterface.
6.AllthePEQchannelgain,bandwidth,continuousadjustablefrequency,typechoice:parametricequilibrium,lowframefiltering,elevatedfilteringandlowcutfilter,highfiltering,phaseshiftorder1,2orderphaseshift.
7.AlloftheinputchannelDEQgain,bandwidth,continuousadjustablefrequency,type,dynamicthreshold,ratio,starttime,recoverytimecontinuouslyadjustable.
8.Allinputandoutputchannelswithindependentphasecurveadjustmentfunction,thePEQtypeselectioncurveadjustmentphaseshift1orderis180degrees,withphase2orderis360degreescurveadjustments.
9.IIRcrossoverfiltertypecanchoose:butterworth,NingKe,Bessel,slopein-6db/db/OctOctto-48optional.
10.DividingFIRfilter:optionalbetweenthesamplingpointsin256to512,hasmanytypesofoptional,20-20KHZcontinuousadjustablecut-offfrequency.
11.Inputchannelnoisegatethreshold,starttime,recoverytime,andkeepcontinuoustimeisadjustable,andtheproportionofnoisegateadjustableindependently.
12.Outputchannelofthecompressorvalvevalue,softpoint,ratio,starttime,recoverytimecontinuouslyadjustable.Andtheoutputwiththefunctionofindependentpeakclipper,threshold,starttime,recoverytimeisadjustable.
13.Allinputandoutputchanneldelaymodulehasupto1200msdelaytime.
14.Frontpanelimagewith2inchesofliquidcrystaldisplay,externalWiFiinterfaceandtheUSBport.RearpanelwithRS485interface,canconnectthethirdpartycentralcontrolsystem,connectamaximumof250devices.
Objectivefunction:
Frequencyresponse
±0.2dB10Hz-25kHz
THD+N
<0.005%@10Hz-25KHz
SNR
>118dBat1%THD+N10Hz-25KHz
Maximuminputlevel
+20dBu/7.775Vrms
Maximumoutputlevel
+20dBu/7775Vrms
gainspan
Eachchannel-80dbto+12db
Theinputimpedance
>10kohms.XLRinput
Outputimpedance
<60ohms.XLRoutput
Testsignal
Eachchannelindependentsinewave/white/pinknoiseisoptional.
Inputeq
Periodof12(parametric/height/all-pass)+3periodofdynamicequilibrium
extender
Thevalue/ratio/starttime/recoverytimeisadjustable
Qualcommtype
Lin-Ril/Bessel/BTWorth6/12/18/24/30/36/42/48
Lowpasstype
Lin-Ril/Bessel/BTWorth6/12/18/24/30/36/42/48
delay
Ms0.01perchannel1200ms/precision
Groupdelay
2.8ms@96KHz/12ms@192KHZ
Outputeq
Eachchannel16segmentsupportparameter/frame/all-passfilter
OutputFIR
Lowpass/qualcomm/bandpasssetdirectly,import/exportcoefficientofsupport
DRCDynamiccontrol
Limiter(peakorRMSvalue)+compression
Thevolume/mutecontrol
Thetotalvolumeandmutecontrolpanelknob
Phasecontrol
Input/outputperchannel0/180turnover
On-linecontrol
USB/WIFI/RS485Threeonlineway
Levelmeter
Displayleveldynamicinstructions
Thepowerrange
85V-260V50Hz-60Hz
weight
Netweight3.6kggrossweight5.2kg.
size
46x482x250mm
Improvetheperformanceofourproducts,theabovespecificationsmaychange.

MOQ1pcs
PricetermFOB/EXW/CIF
PaymenttermsT/T,Westernunion,Cash
PackageCartonbox/Flightcase
DeliverytimeForsampleorder:about1-3daysafterpayment
Forbigorder:about5-15daysafterpayment
ShippingByair,Bysea;Byexpress:DHL/UPS/Fedex/EMS
OEMWeacceptOEMorder
Warranty2years
Aftersellsservice
Ifthereistheproblemwiththeproduct,firstlyyouneedsendthepictureorthevideotous,thenletusmakesurewhat'sproblemabouttheproduct,wewilltryourbesttohelpyou.iftheproblemcanusetheparttosolve,wewillofferyouthereplacementforfreeWithin2years.
