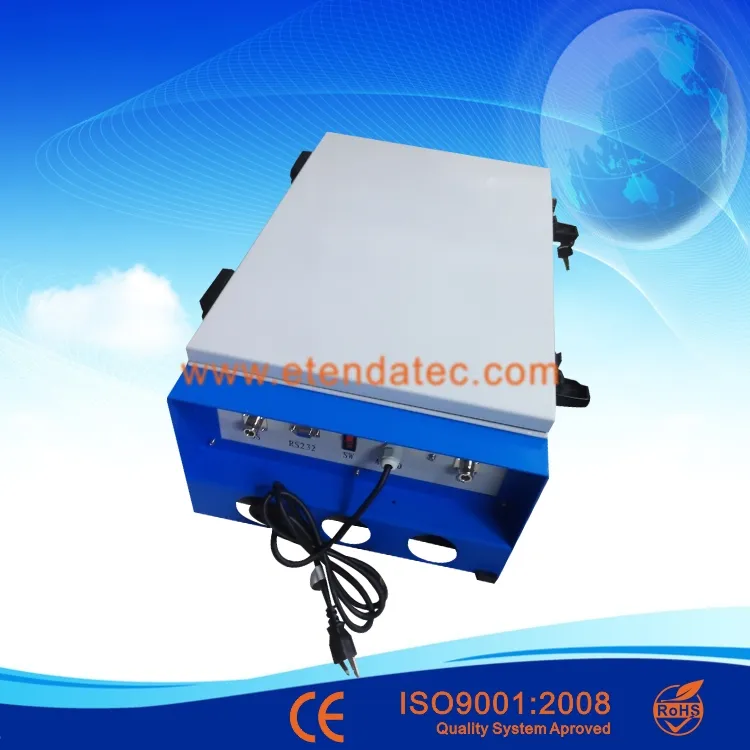

Tetra uhf Bda two way radio repeater Mobile Signal Repeater amplifier

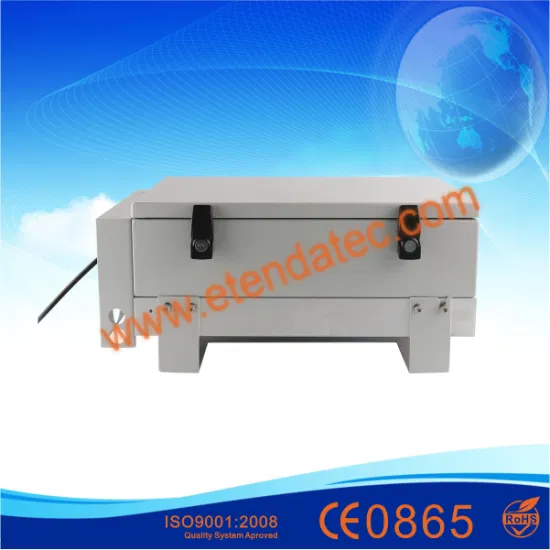

Our Tetra repeater have CE 0865 certificate with report,freely to import to European!
We can also make other band repeater as your demand,feel free to contact us for your requirement!
Introduction
RF Repeater is designed to enhance cellular network coverage and fill blind spots. Main operation of the repeater
is to receive low-power signal from Base Station (BS) via radio frequency (RF) transmission by its donor antenna,process, amplify and forward the signal to Mobile Station (MS) in target coverage area by its service antenna.
Features

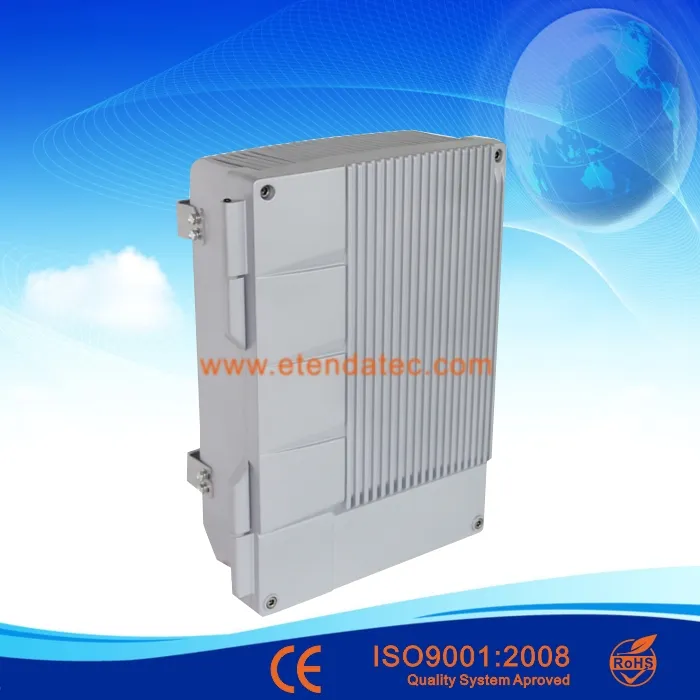

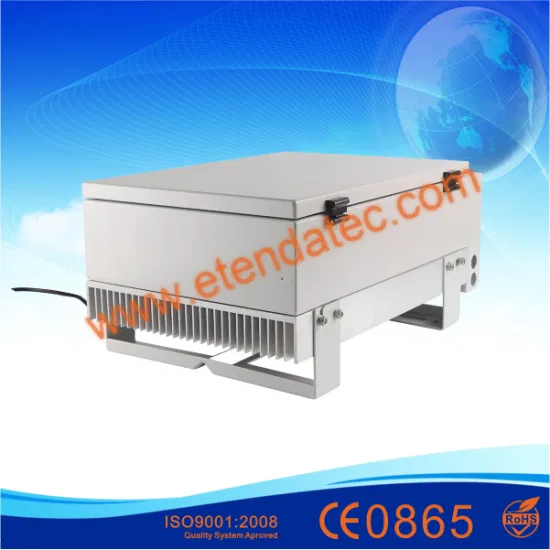

1.Aluminum alloy enclosure for excellent heat dissipation,waterproof design for all-weather installation;
2.High out band rejection, excellent intermodulation and spurious emissions;
3.Modules structure,Multi-duplexer,two ports design,and built-in power supply,easy for maintenance and installation;
4.Adopting cavity filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink;
5.High linearity PA; high system gain;
6.Allowing for continuous gain adjustment 31dB by 1dB step;
7.Local and remote monitoring with automatic fault alarm.

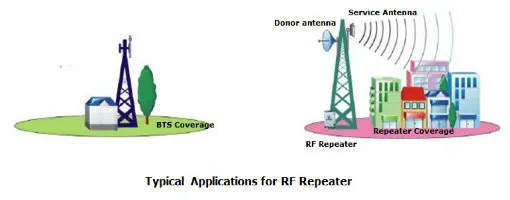

RF Repeater Typical Application

Specifications
Monitor Function
Adjust the gain of the uplink and downlink.
Set maximum output power of the uplink and downlink.
Detect operating temperature of the equipment.
Detect output power of uplink amplifier and downlink amplifier.
Detect input power of uplink and downlink.
Check the uplink LNA and downlink LNA for working properly
Check the uplink and downlink "frequency selective filter" for working properly.
Check the uplink PA and downlink PA for working properly.
Switch on and switch off the power amplifiers of uplink and downlink.
Set the frequency of uplink and downlink.
Detect the VSWR of downlink output antenna port.
Site Survey
Before you install, the installer should contact the person responsible for the project, understand whether there are installed conditions in the installation site.
Specifically include: Installation site, surroundings (Temperature and Humidity), power supply, and so on. If qualified, should go live on-site survey with related personnel. The repeater is designed that can working outdoors, operating temperature is -25ºC~65ºC, humidity is ≤95%, which can be adapted to most areas of the natural environment.
Recommended Environmental Requirements:
1.Installation area non-corrosive gases and fumes, Electromagnetic interference field strength ≤140dBμV/m(0.01MHz~110000MHz).
2.Mounting height should facilitate the RF cable routing, cooling, safety and maintenance.
3.Should provide a set of independent and stable 150VAC~290VAC(Nominal 220V/50Hz)AC Power. It must not be shared with other high-power appliances telecommunications equipment.
4.Lightning protection devices must be installed in the building, and it should have sufficient strength and stability.
5.There are grounding bar in the vicinity.
Installation Tools
Installation tool to use: Electric impact drill, iron hammer, pulleys, ropes, belts, helmets, ladders, screwdriver, hacksaw, knife, pliers, wrenches, compass, measuring tape, tweezers, electric iron, portable PC, 30dB directional coupler, spectrum analyzers, VSWR tester.
Repeater installation
It can be holding pole or wall mounting way. It should be installed in ventilated place, vertically on a wall or mast to ensure good heat dissipation, if hang on the wall, the upper part of the equipment to be considered more than 50cm from the ceiling, the lower part of the equipment needs more than 100cm from the floor.
Antenna and Feeder Installation and Precautions
1.Installation of antenna systems requires experienced professionals to complete.
2.You can not install an antenna near power lines, which may be life-threatening.
3.All exposed joints must use self-adhesive waterproof tape and electrical insulation tape seal securely.
Connect the Ground and Power Supply
1. Equipment Grounding
The equipment must be well grounded, there is a copper on the repeater wall chassis ground, use 4mm2 or thicker copper wire close to the ground. Grounding wire should be as short as possible. When installed, the equipment grounding wire should be connect to the integrated grounding bar. Grounding resistance of requirements bar may be≤ 5Ω, ground connector require preservative treatment.
2. Connect the Power
Connect 220V/50Hz AC power to the equipment power port terminal blocks, power line use 2mm2 cables, length less than 30m. For standby power requirement, the power must go through UPS, and then connect the UPS to the repeater power port terminal blocks.
For more details,feel free to contact us!
