Applied to L1 Band 22dB Gain Ratio Gnss Positioning and Timing Signal Transmitted Repeater Low Standing Wave Ratio
Preview
Basic Info.Product DescriptionCertifications
Basic Info.
| Model NO. | CLRP-201 |
| Lightning Protection | Without Lightning Protection |
| Certification | ISO, RoHS |
| Condition | New |
| Frequency Range | 1559~1610MHz |
| Gain | 20~24dB |
| Vswr | 2 |
| Impedance | 50ohms |
| Operating Voltage (DC) | 4.5~5.5V |
| Transport Package | Box |
| Specification | 110X62X37mm |
| Trademark | CORELOGIC |
| Origin | Chi |
| HS Code | 85177090 |
| Production Capacity | 5000PCS/ Month |
Product Description
Product Description
Preview

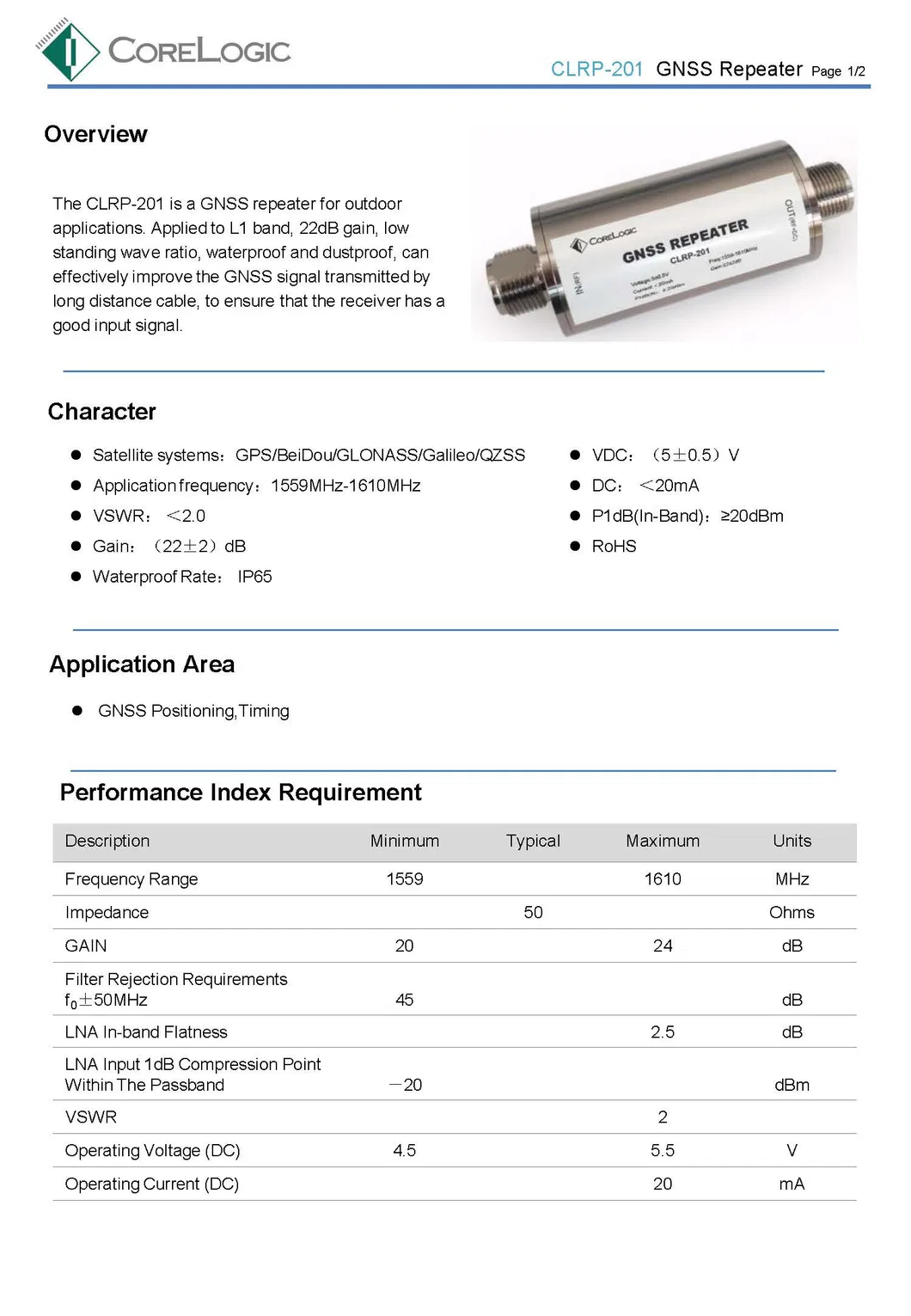

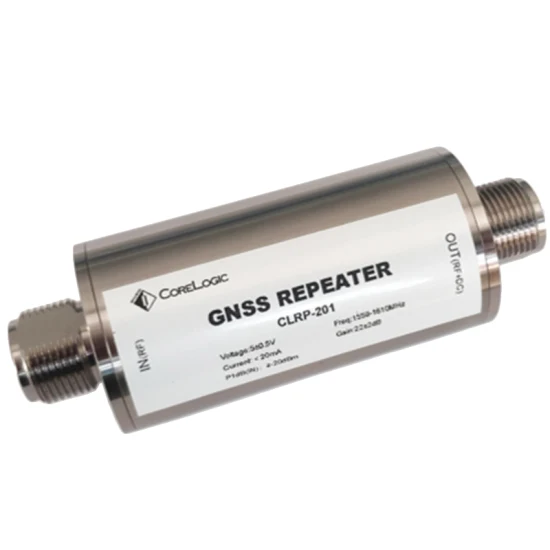

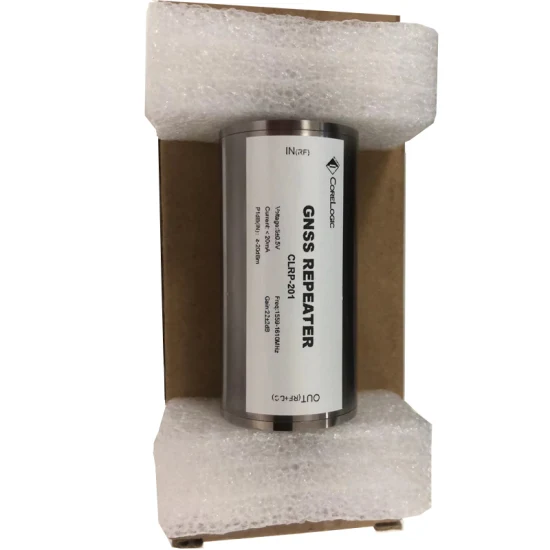

CLRP-201
GNSS Repeater
The CLRP-201 is a GNSS repeater for outdoor applications. Applied to L1 band, 22dB gain, low standing wave ratio, waterproof and dustproof, can effectively improve the GNSS signal transmitted by long distance cable, to ensure that the receiver has a good input signal.
GNSS Repeater
The CLRP-201 is a GNSS repeater for outdoor applications. Applied to L1 band, 22dB gain, low standing wave ratio, waterproof and dustproof, can effectively improve the GNSS signal transmitted by long distance cable, to ensure that the receiver has a good input signal.
Preview
Preview
Preview
Preview
Preview
Preview
Certifications
Name:RoHS report for CLSP-008J1-1-G (9M) V2014
Preview
Applied to L1 Band 22dB Gain Ratio Gnss Positioning and Timing Signal Transmitted Repeater Low Standing Wave Ratio
$17.5 ~ $19.95
Consumer electronics Industry Chain · Telecommunications and broadcasting · Repeater
Model NO.:CLRP-201
Transport Package:Box
Origin:Chi
