Basic Info.Product Description
Basic Info.
Model NO. | Minibox-LoRa V1.0 |
Product Name | IoT Gateway Hub |
Network Interface | Wan/LAN/LTE Variable |
Wireless Protocol | Wi-Fi, Zigbee3.0, Bluetooth,Zwave |
Application | Smart Home/Industry/Agriculture/Apartments |
Transport Package | Simple |
Specification | OpenWrt |
Trademark | DUSUN |
Origin | Zhejiang |
Package Size | 30.00cm * 20.00cm * 10.00cm |
Package Gross Weight | 1.000kg |
Package Size | 30.00cm * 20.00cm * 10.00cm |
Package Gross Weight | 1.000kg |
Product Description
Product Description
Preview

Preview

Preview

Preview

Preview

Preview

Preview
pecification

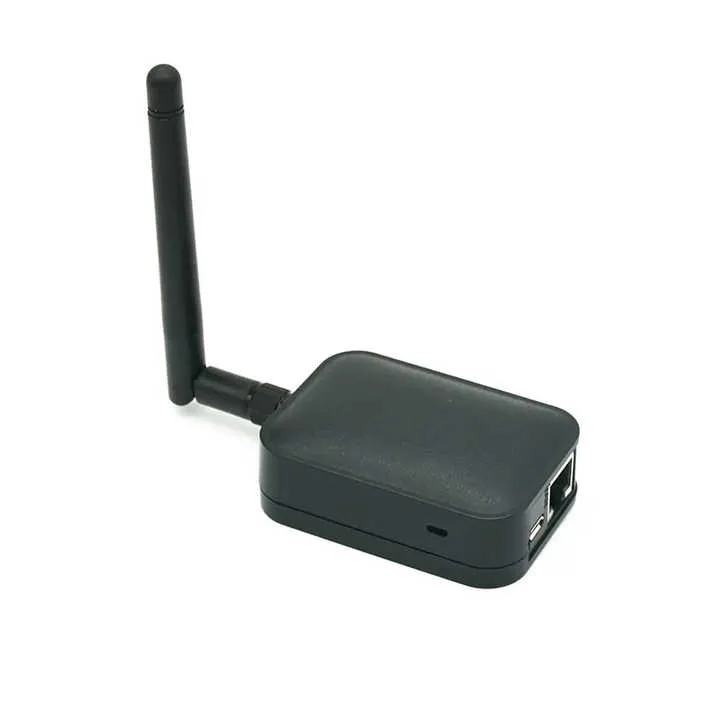

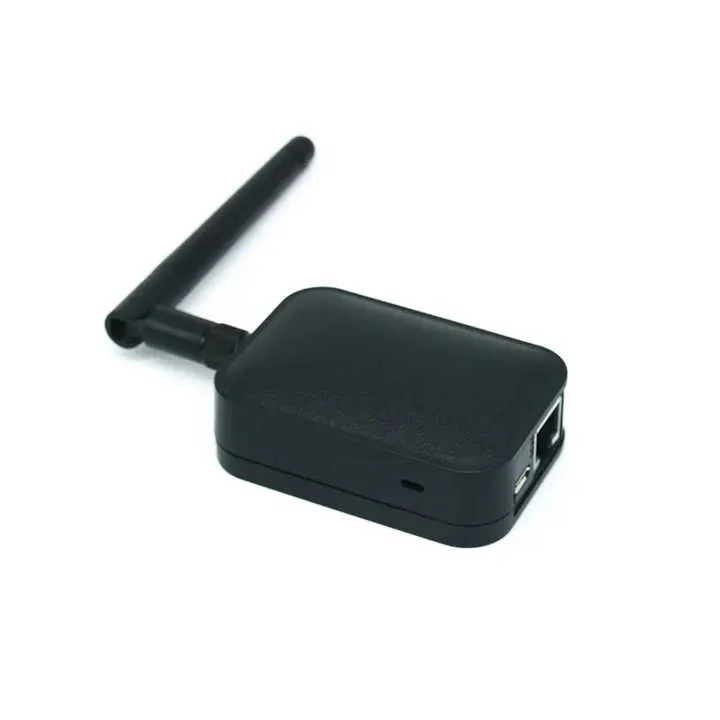

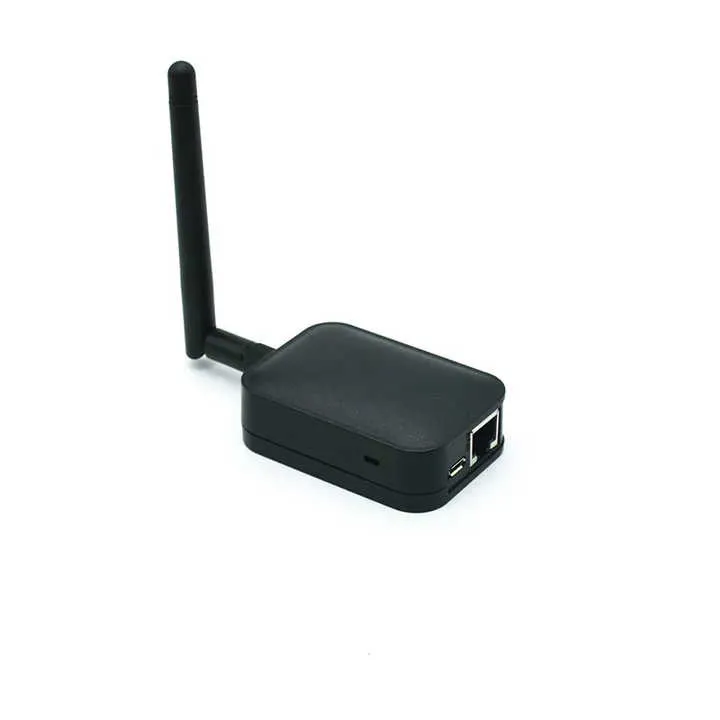

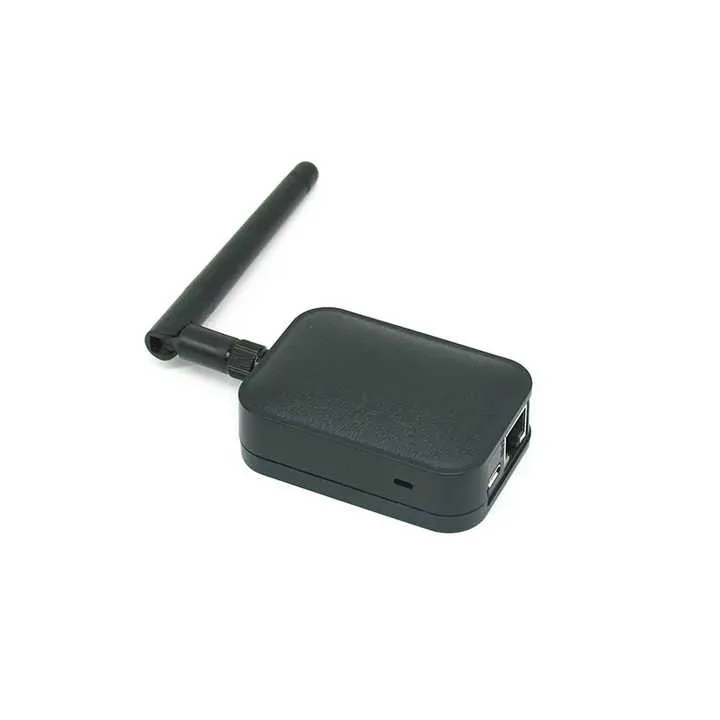

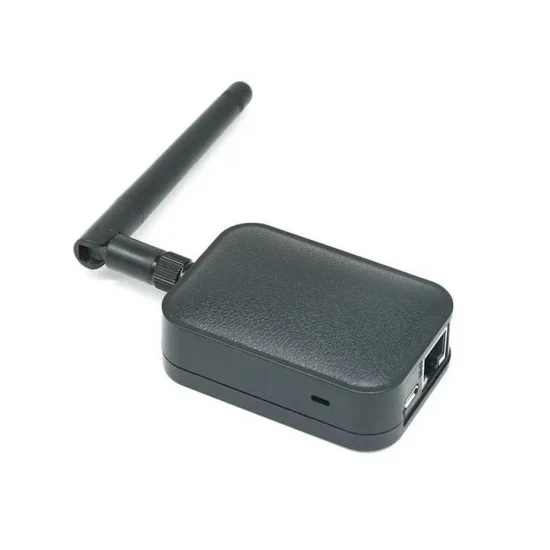

150Mbps 2.4G Wireless Wi-Fi LoRa Gateway Characteristics:
MT7688AN + SX1276 868MHz (433MHz/470MHz/915MHz optional)
Support OpenWrt and we will Open the OS source code for Developer..DDR:64MB (128MB/256MB optional)
Spi Nor Flash:16MB (32MB/64MB optional)
1 * WiFi intenna antenna,80211 b/g/n 150Mbps.1 * LoRa external antenna
1 * 10Mbps/100Mbps Ethnet Port.1 * System LED
1 * Reset Button
Used for Smart Home, IoT Industry 4.0, etc...5V/1A Micro USB DC power supply.
Minibox-LoRa V1.0 is a smart LoRa solution for IOT application. MT7688AN + SX1276 (433MHz 470 MHZ or 868MHZ or 915Mbps. Can update local data to Internet(Server). We intend to make this product open source software product and expose our software code and provide user manual.MT7688:
MT7688 family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEcTM CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs.MT7688 provides two operation modes - IoT gateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0. MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
150Mbps 2.4G Wireless Wi-Fi LoRa Gateway Characteristics:
MT7688AN + SX1276 868MHz (433MHz/470MHz/915MHz optional)
Support OpenWrt and we will Open the OS source code for Developer..DDR:64MB (128MB/256MB optional)
Spi Nor Flash:16MB (32MB/64MB optional)
1 * WiFi intenna antenna,80211 b/g/n 150Mbps.1 * LoRa external antenna
1 * 10Mbps/100Mbps Ethnet Port.1 * System LED
1 * Reset Button
Used for Smart Home, IoT Industry 4.0, etc...5V/1A Micro USB DC power supply.
Minibox-LoRa V1.0 is a smart LoRa solution for IOT application. MT7688AN + SX1276 (433MHz 470 MHZ or 868MHZ or 915Mbps. Can update local data to Internet(Server). We intend to make this product open source software product and expose our software code and provide user manual.MT7688:
MT7688 family integrates a 1T1R 802.11n Wi-Fi radio, a 580MHz MIPS® 24KEcTM CPU, 1-port fast Ethernet PHY,USB2.0 host, PCIe, SD-XC, I2S/PCM and multiple slow IOs.MT7688 provides two operation modes - IoT gateway mode and IoT device mode. In IoT gateway mode, the PCI Express interface can connect to 802.11ac.chipset for 11ac dual-band concurrent gateway. The high performance USB 2.0 allows MT7688 to add 3G/LTE modem support or add a H.264 ISP for wireless IP camera. For the IoT device mode, MT7688 supports eMMC,SD-XC and USB 2.0. MT7688 can support the WiFi high quality audio via 192Kbps/24bits I2S interface and VoIPapplication through PCM. In IoT device mode, it further supports PWM, SPI slave, 3rd UART and more GPIOs.For IoT gateway, it can connect to touch panel and BLE, Zigbee/Z-Wave and sub-1G RF for smart home control.
