Product Overview

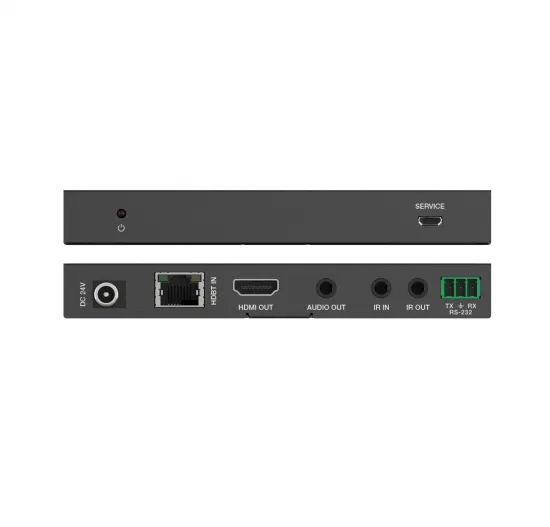

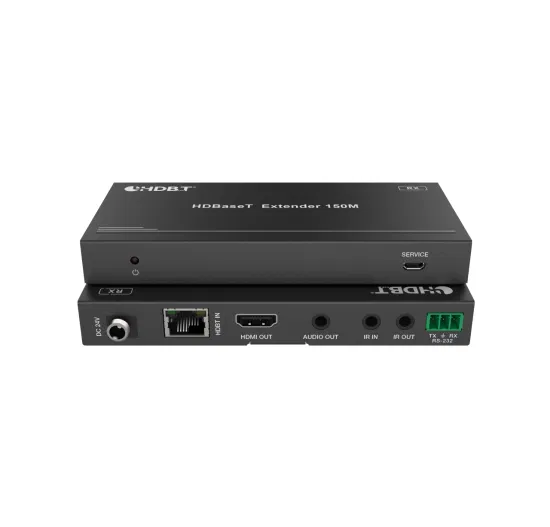

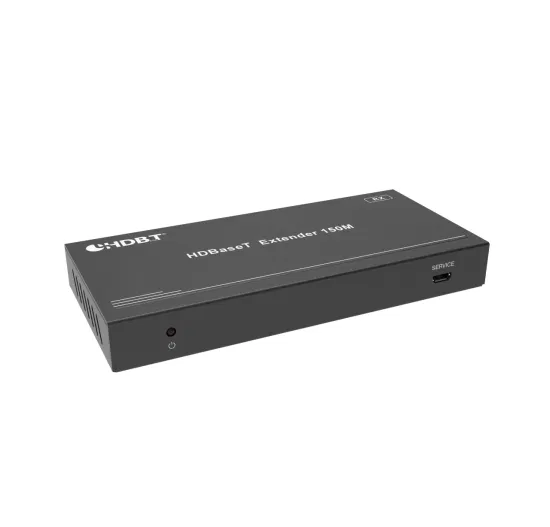

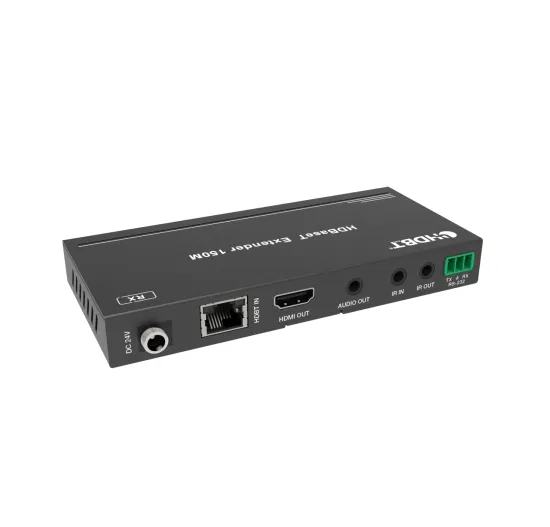

The 18Gbps HDMI Extender CR-EHB150CGR can extend high definition video / audio signal, RS-232, bi-directional IR, and the distance is up to 492ft / 150 meters between transmitter and receiver via a single CAT cable. It supports resolution up to 4K2K@60Hz 4:4:4, 18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also supports de-embeded audio for L/R audio output and PoC function. In addition, the extender is equipped with two-way IR pass-through which allows for source and display control.
CR-EHB150CGR offers ideal solutions for homes, offices, digital entertainment centers, control centers, conference rooms, schools and corporate training environments, where require HDMI source and transmission over long distance.
Features
HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
Support 18Gbps video bandwidth
Input and output extends distance up to 394ft / 120 meters when 4K2K signal and 492ft / 150 meters when 1080P signal
Support one HDMI loop output on transmitter
De-embeded audio to analog stereo output on receiver
With bi-directional IR, RS-232 and CEC pass-through
Support HDR, HDR10+, Dolby Vision and HLG function
Support PoC (Power over Cable)
Compact design for easy and flexible installation.

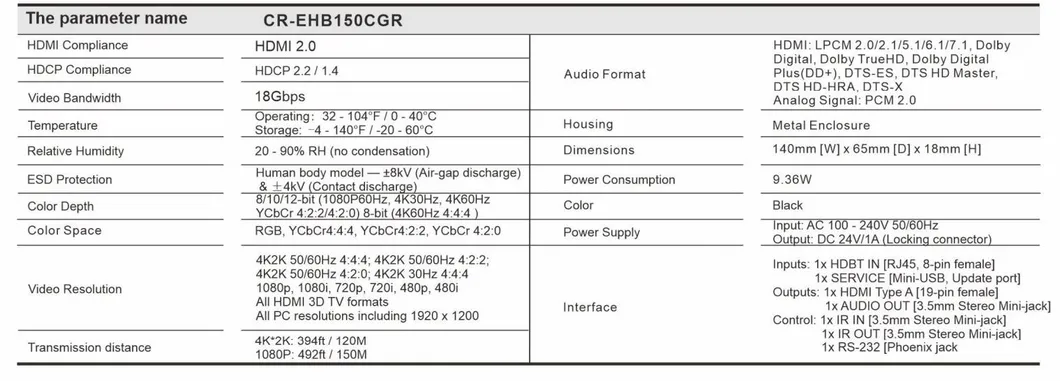

Specifications

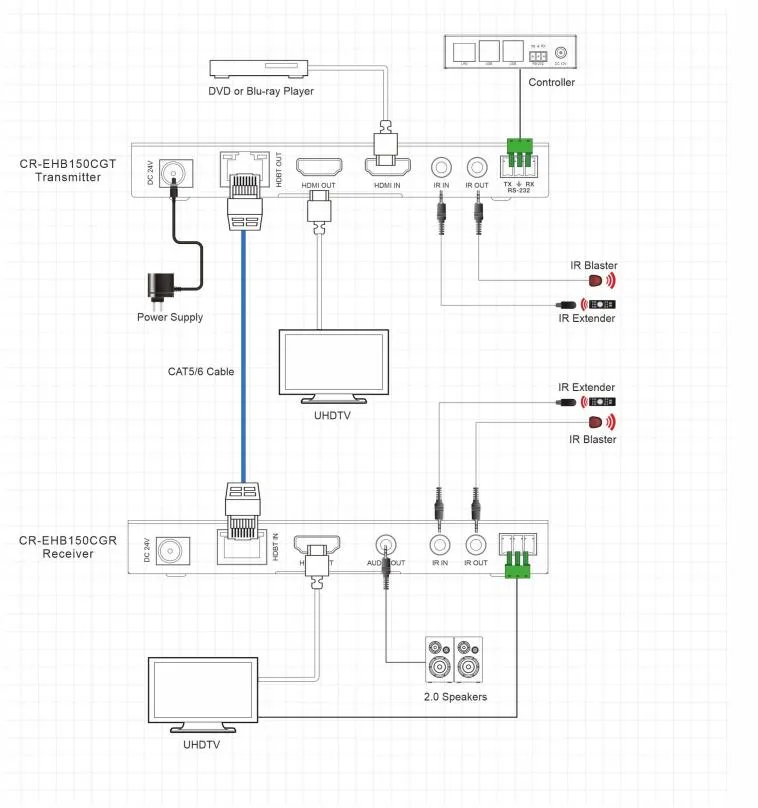

System Diagram

Case Study
Gambia International Convention Center
Application Products: 1,500 sets of infrared simultaneous interpretation language distribution system, over 200 sets of full digital conference system, 19 sets of visual interaction system, 5 units of large-scale hybrid matrix switcher with video wall processing.United Nations Conference on Trade and Development

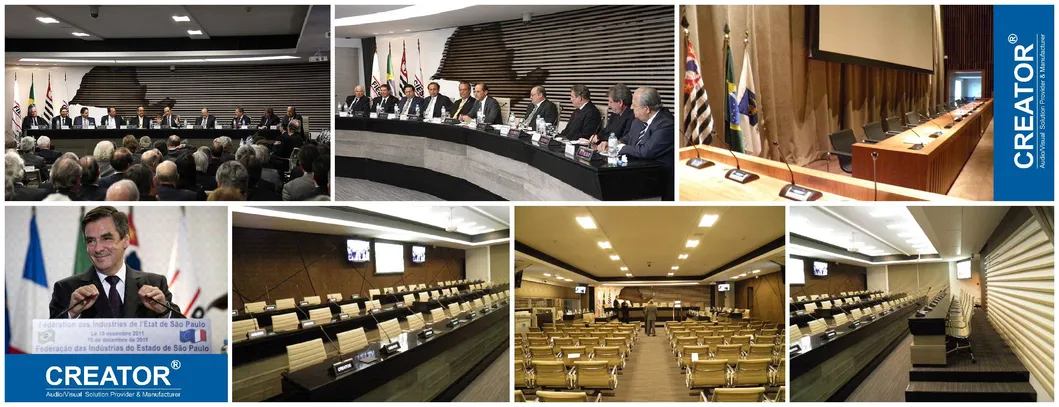

Application products: 1200 sets of full digital conference system, matrix switcher, multimedia controller and other devices.Brazil Federation of Industries of Sao Paolo (FIESP)
Application products: over 500 sets of CREATOR full digital discussion conference system, auto camera tracking system, and seamless swtiching matrix switcher.

Honors & Certificates
