Description:
CYT5-V3.0 is a ASK radio transmitter module. This module is a superior performance transmitter module for ISM band. With the adoption of European brand RF wireless data transferring/ receiver chipsets, it has advantage at strong transmission power, low voltage power supplying, easily through the Fcc/CE authentication. It can do wireless signal input to the data signal output without any external circuit. Users only need to decode the data plus a simple circuit and then any wireless products development can be easily achieved.Features:
High output power: 14dBm;
Low operation voltage: VCC= 1.8 to 3.6 V;
Frequency: 315MHz/433.92MHz;
Frequency tolerance: ±50 KHz;
The range can be up to 300m in open space when matching with CY11;
Operating temperature: -20ºC~+70ºC ( It can custom to -40ºC ~ 85ºC upon requests);
The Static power consumption is low. Emission current consumption: 8mA (315Mhz/433.92Mhz). There is no current consumption if there is no data launch;
Frequency tolerance: ±30 KHz;
Bit rate: 2.4KB/S;
Circuit Shape: PLL(±50KHz);
Dimension: 11.5*16*5.5mm
Application
Remote gate controls. Barriers
Remote keyless entry (RKE)
Car alarm systems
Wireless security systems
Automation systems
Remote control systems
Remote Curtain Motor

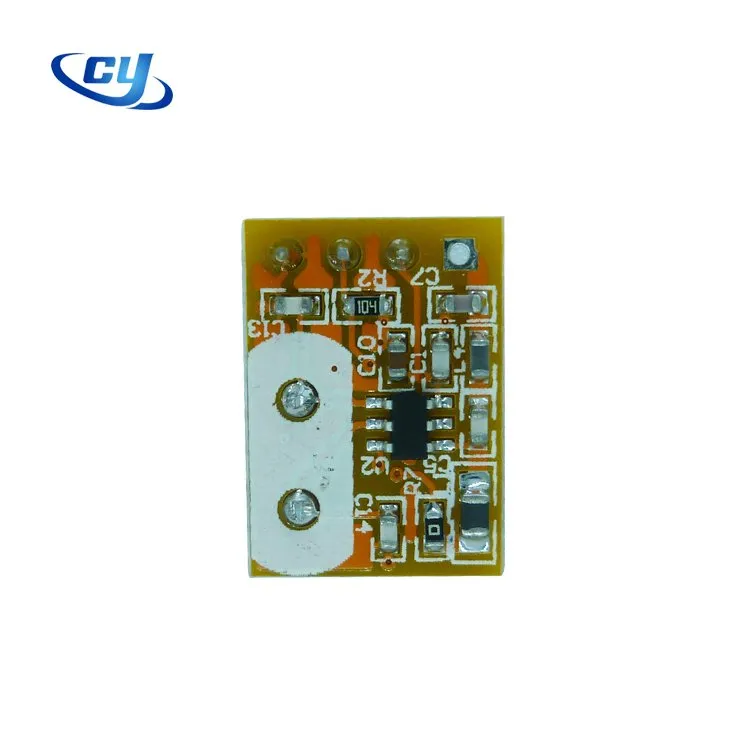

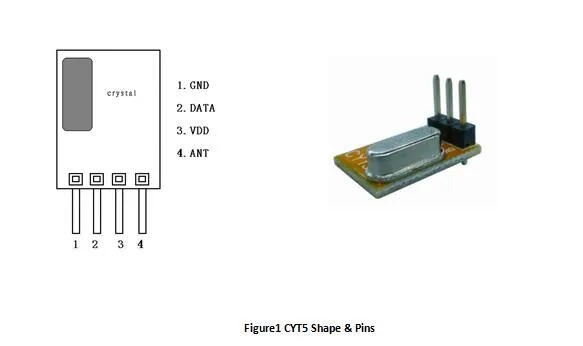

Pin Description

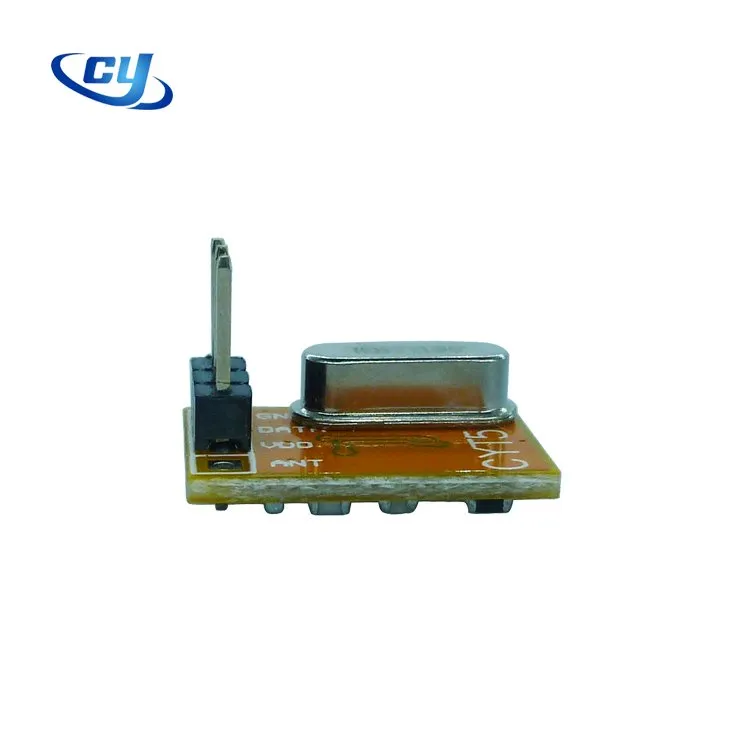

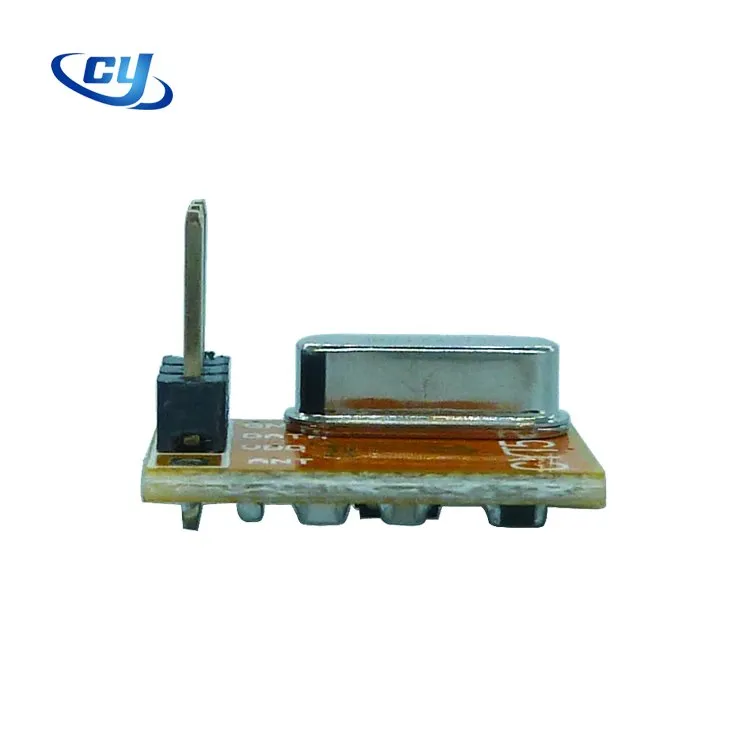

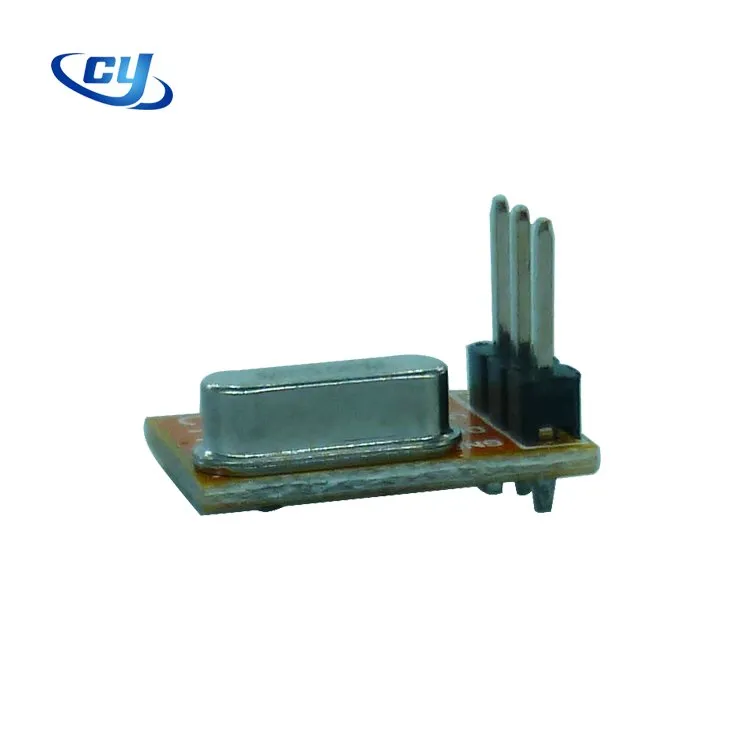

Please note: CYT5 is come with standard three Vertical PINs as the picture showed in the right hand side (without the ANT pin). Please notify us if you would like 4 PINs or horizontal pin type.Electrical Characteristics:
CYT5-V3.0
VDD-GDN
1.8V-3.6V
TA-25°C

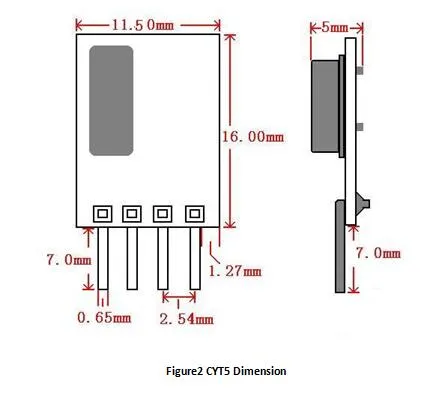

Mechanical Size: (Unit: MM)
