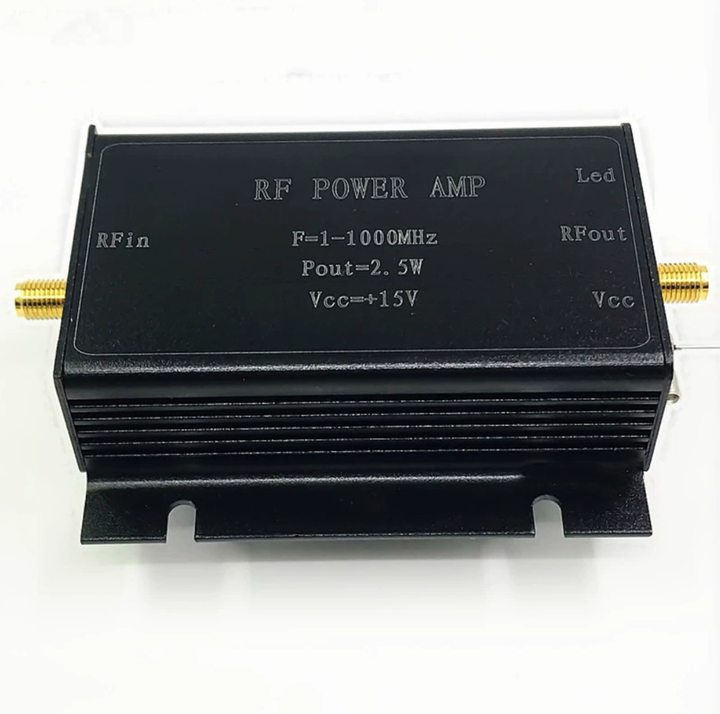

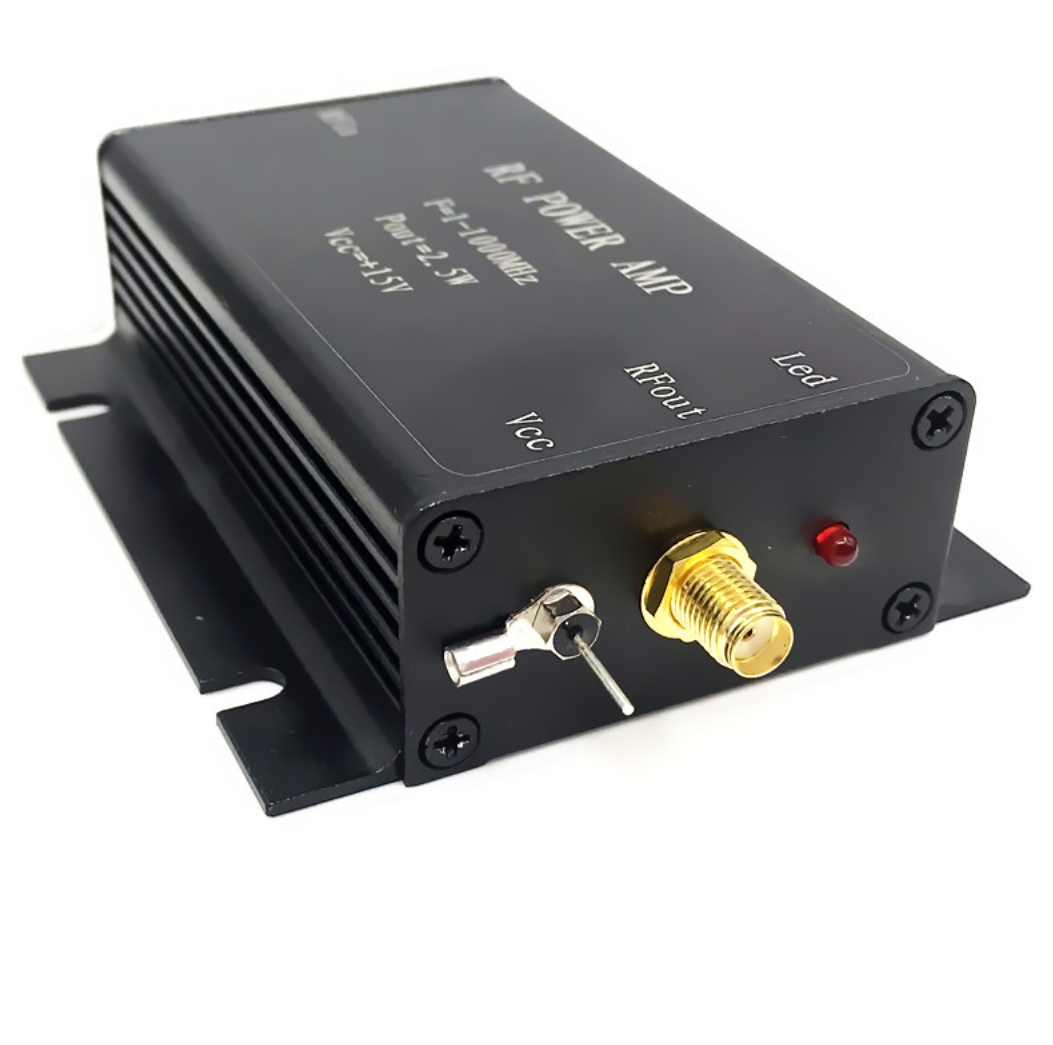

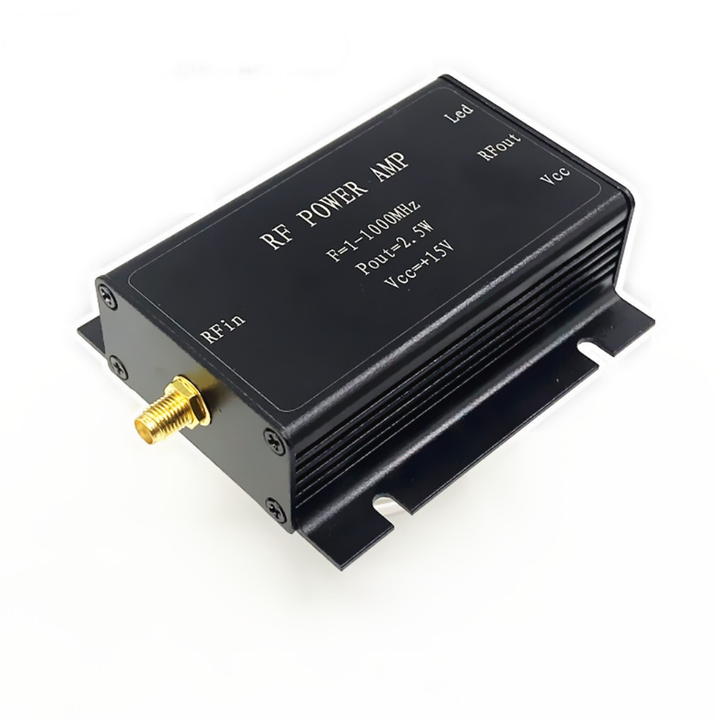

Black 2.5W 1-1000MHz Radio Frequency Power Amplifier RF Power Amplifier

RF wideband low power amplifierThis broadband RF low-power amplifier is suitable for various types of radio transmission, such as: shortwave FM wireless remote control, FM FM radio transmission, amateur radio 135-175MHz, 380-470MHz walkie-talkie, etc. The low-frequency end inputs 2mW and can output a maximum power of 2.5W. At 500MHz, the maximum output is 2W. At 800MHz, the maximum output is 1.5W. At 1000MHz, the maximum output is 1.0W. The amplifier casing has a heat dissipation function and can work stably for a long time.1.Technical parameters:1) Working frequency: 1-1000MHz2) Output power: Input power: 2mW (3dBm) 2.5W (34dBm) low frequency end (100MHz) 2.0W (33dBm) IF end (500MHz) 1.5W (31dBm) high frequency end (800MHz) 1.0W (30dBm) high frequency end (1000MHz)3) Working voltage: 15V (DC)4) Working current: 430mA (determined by output power)5) RF connector: SMA6) Overall dimensions: 82*71*25mm (length*width*height)7) Product weight: 90g (the shell has a heat dissipation function)
