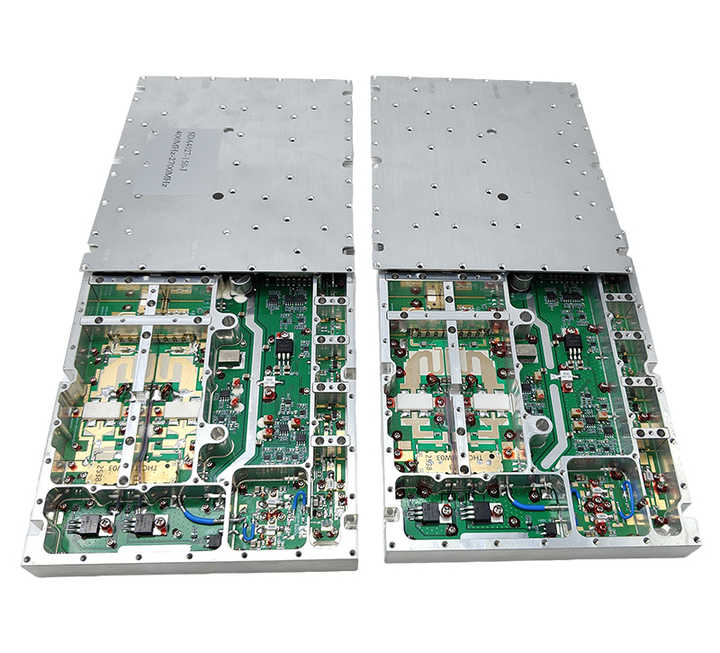

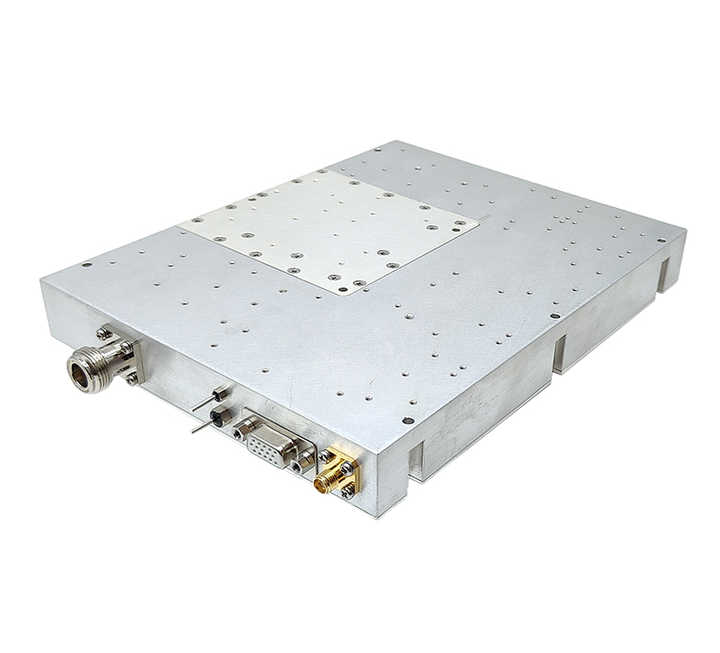

HZ100W400-2700M Wideband RF Power Amplifier Wireless RF Module 100W 400-2700M Anti-Drone Amplifier Module
Preview
Basic Info.Product Description
Basic Info.
| Place of Origin | Guangdong, China |
| Brand Name | RF Skypower |
| Model Number | HZ100W400-2700M |
| Mounting Type | Screw Fixing |
| Description | Signal Enlarge |
| Application | Anti Drone Jammer |
| Type | WideBand |
| Series | RSF |
| Features | Hight power |
| Manufacturing Date Code | 20240301 |
| Frequency Range | 400-2700M |
| Power | 100W |
| Production Capability | 5000pcs per Month |
| Sample Leadtime | 10days |
| Custom | Customizable |
| Selling Units: | Single item |
| Single package size: | 28X20X6 cm |
| Single gross weight: | 1.800 kg |
Product Description
Item
Specification
Remarks
Frequency Range
400MHz ~2700MHz
Pin(dBm)
0dBm~5dBm
Pout(dBm)
（51±1）dBm
Test Wave:CW
Harmonics
≥10dBC@Odd Harmonics;
≥12dBC@Even Harmonics
Working Voltage/Current
48VDC±1V, ≤9A

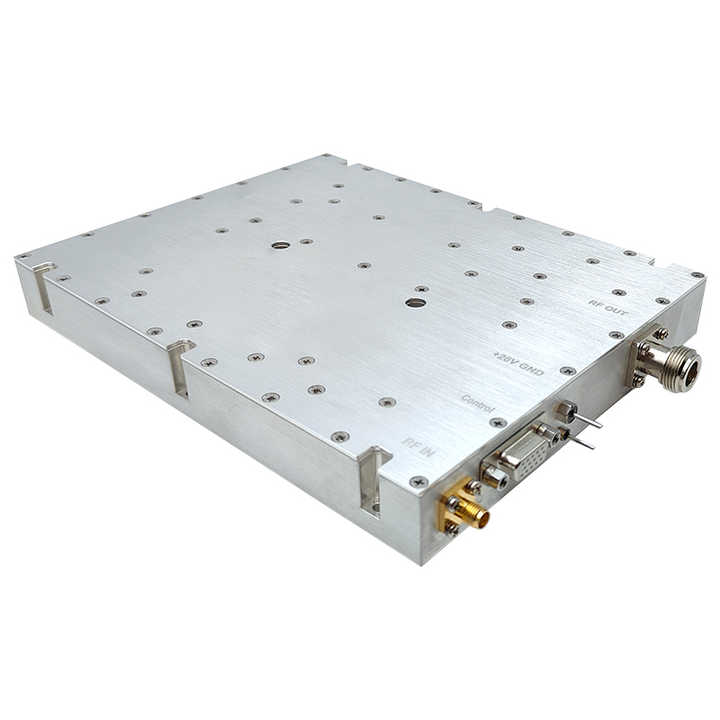

RF In connector
SMA-Female
RF Out connector
N-Female
Power Supply Connector
Pull-core Capacitance
Protection&Alarm
Over-temperatue 75℃ and Over-VSWR
Specification
Remarks
Frequency Range
400MHz ~2700MHz
Pin(dBm)
0dBm~5dBm
Pout(dBm)
（51±1）dBm
Test Wave:CW
Harmonics
≥10dBC@Odd Harmonics;
≥12dBC@Even Harmonics
Working Voltage/Current
48VDC±1V, ≤9A
RF In connector
SMA-Female
RF Out connector
N-Female
Power Supply Connector
Pull-core Capacitance
Protection&Alarm
Over-temperatue 75℃ and Over-VSWR
ODM&ODM
FAQ
HZ100W400-2700M Wideband RF Power Amplifier Wireless RF Module 100W 400-2700M Anti-Drone Amplifier Module
$200 ~ $2800
