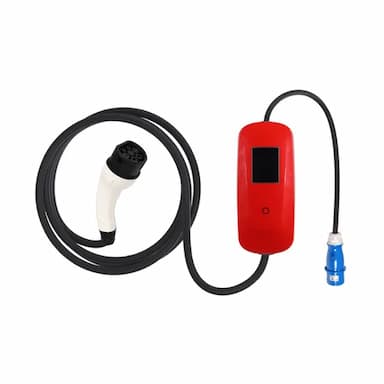

Production overview
1.This product is mainy composed of charging pile host,charging gun cable, installation backboard, gun hoder, installaton accesories package,etc.
2.It is a household type electic vehice charging equiment. The AC charging pile is connected to the city power, and the charging gun interface can safely and reliably charge the electric vehicle;
3.There is no corrosive gas such as acid and alkali in the surrounding environment so as not to affect the performance of the product,
4.Don't use it under direct rain or in environment with high humidity,and try to prevent damage from impacting the case.
5. Brands,colours and logo can be customized.


Technology parameters,

Working voltage 230Vac±15% Overcurrent protection >=110% Rated output
Working current 32A Leakage protection Type A or A+DC6mA
Operating frequency 50Hz CP voltage protection ±1V
Rated charging current 32A CP voltage protection 85ºC
Rated Input/output voltage 230Vac Lightning protection Yes
Operating temperature -25ºC~+50ºC Lightning protection Yes
Storage temperature -40ºC~+60ºC Ground protection Yes
Shell protection rating IP54 Cooling mode Natural cooling
Human-computer interaction 4.3-inch screen Means of communication Bluetooth/Ethernet/4G
Over-voltage protection 265V Installation mode Column Type/wall hanging type
Under-voltage protection 175V Body size 355*250*95.5mm

Certificates:

Production workshop:

R&D Dept:

Testing:

On-site installation:

FAQ:
Q1: What is your terms of packing of EV Charger?
A: PE bag polystryrene Carton box
Q2: What's the MOQ?
A: MOQ:50pcs.Customized service is available.

Q3: Can you produce according to the samples?
A: Sure. we can produce as per your samples or technical drawings. We can build the molds and fixtures.

Q4: What is your sample policy?
A: We can provide sample if we have ready parts in stock, but customers need to bear the fee both for samples and courier.
Q5: Do you test all your goods before shipment?
A: Yep, before shipment all goods would be 100% tested that will ensure we will deliver the best to our customers.

We delivery cDifferent shipping methods can be selected,

Haibafang always focus on the development and manufacturing of EV charger and charging operating platfrom with the wide range of products.
Our R&D team is strong, that ensure us can provide excellent EV charger to clients.
