Universal Pressure Transmitter for Booster Pumps and Air Compressors PCM390
Preview
Basic Info.Product DescriptionCertifications
Basic Info.
| Model NO. | PCM390 |
| Output Signal Type | Analog Type |
| Production Process | Normal Wirewound |
| Material | Stainless Steel |
| Thread Type | OEM packaging/Neutral Pakcage/Cobalt packaging. |
| Measuring Medium | Liquid |
| IP Rating | IP65 |
| Certification | CE |
| Customized | Customized |
| Pressure Reference | Gauge, Absolute, Sealed Gauge |
| Output | 4 to 20mA, 0.5 to 4.5V, 0 to 5V, 0 to 10V |
| Supply | 12~30VDC, 5VDC |
| Accuracy | 0.5%Fs |
| Hysteresis & Repeatability | 0.1%Fs |
| Overpressure | 150%Fs(≤60MPa), 120%Fs(60~100 MPa) |
| Ambient Temp. | -20ºC~85ºC |
| Medium Temp. | -30ºC~105ºC |
| Protection | IP65 |
| Medium Compatibility | All Media Compatible with Stainless Steel 304 |
| Transport Package | Standard Export Packing with Carton |
| Trademark | WTsensor |
| Origin | China |
| Production Capacity | 8000pieces/Month |
| Package Size | 14.00cm * 8.50cm * 5.50cm |
| Package Gross Weight | 0.139kg |
| Package Size | 14.00cm * 8.50cm * 5.50cm |
| Package Gross Weight | 0.139kg |
Product Description
PCM390 Universal Pressure Transmitter
Product overview
PCM390 is also applicable to a
wide range of industrial applications, with a
variety of structures, output forms and pressure connections to meet the requirements of most applications. It is designed with compact structure which especially applies to the installation in small space.
Features
Gauge pressure, Absolute pressure, Sealed gauge pressure
Pressure Range:0~35kPa…25MPa
±0.5%FS(typ.); ±1%FS(max.)
Power Supply:12~30VDC,5VDC
Applications
Hydraulic and pneumatic equipment
Chemicals and Chemical Industry
Compressor
Inkjet printer
Product Parameters
Product overview
PCM390 is also applicable to a
wide range of industrial applications, with a
variety of structures, output forms and pressure connections to meet the requirements of most applications. It is designed with compact structure which especially applies to the installation in small space.
Features
Gauge pressure, Absolute pressure, Sealed gauge pressure
Pressure Range:0~35kPa…25MPa
±0.5%FS(typ.); ±1%FS(max.)
Power Supply:12~30VDC,5VDC
Applications
Hydraulic and pneumatic equipment
Chemicals and Chemical Industry
Compressor
Inkjet printer
Product Parameters
Preview
Preview
Preview
Preview
Preview
Preview
Note:
(1)G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.(2)"1"is non-glass header, please note.
(1)G stands for gauge pressure, A, absolute pressure, S, sealed gauge pressure.(2)"1"is non-glass header, please note.
Preview
Preview

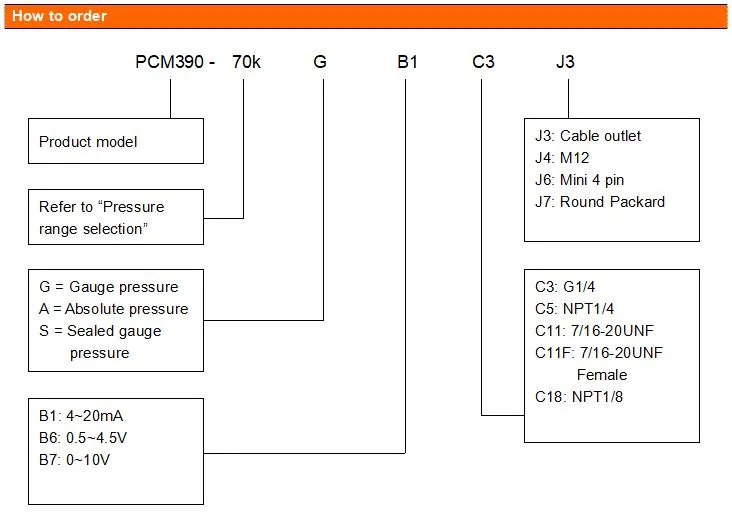

Example:
PCM390-70kGB1C3J3

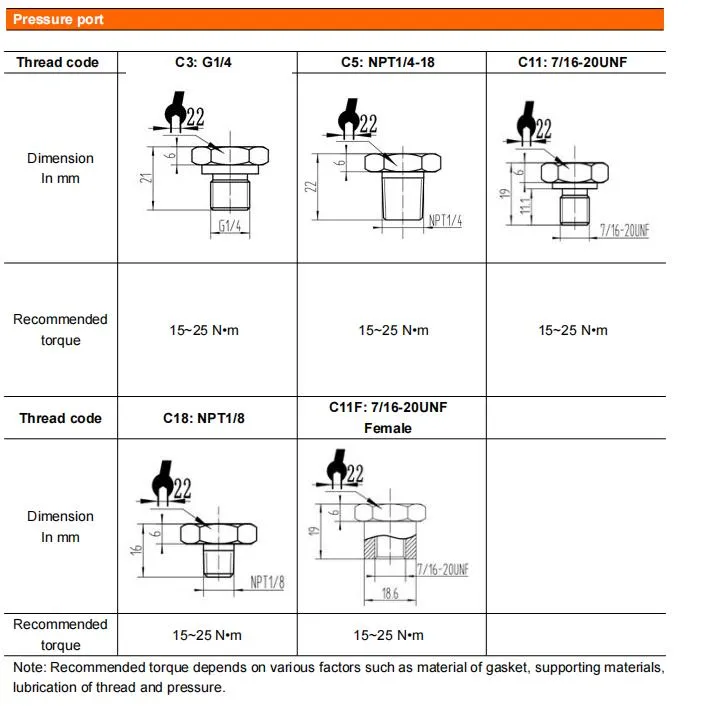

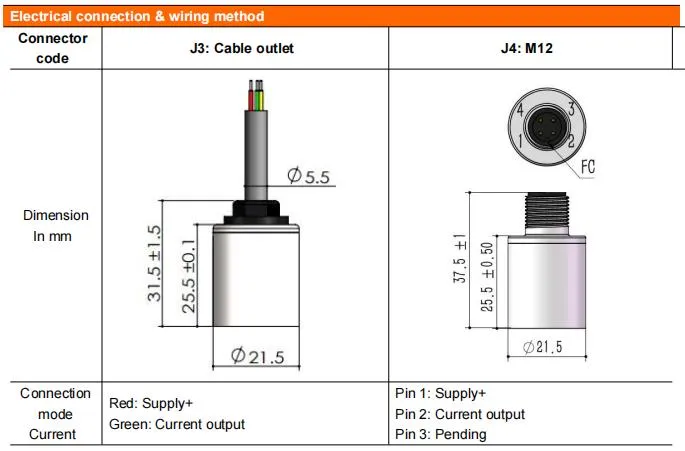

Refer to product model PCM390, pressure range 0~70kPa, pressure reference gauge pressure, output signal 4~20mA, pressure port G1/4, electrical connection cable outlet.
Ordering tips:
Ensure compatibility between measured media and contacting part of product when placing an order.
PCM390-70kGB1C3J3
Refer to product model PCM390, pressure range 0~70kPa, pressure reference gauge pressure, output signal 4~20mA, pressure port G1/4, electrical connection cable outlet.
Ordering tips:
Ensure compatibility between measured media and contacting part of product when placing an order.
Preview

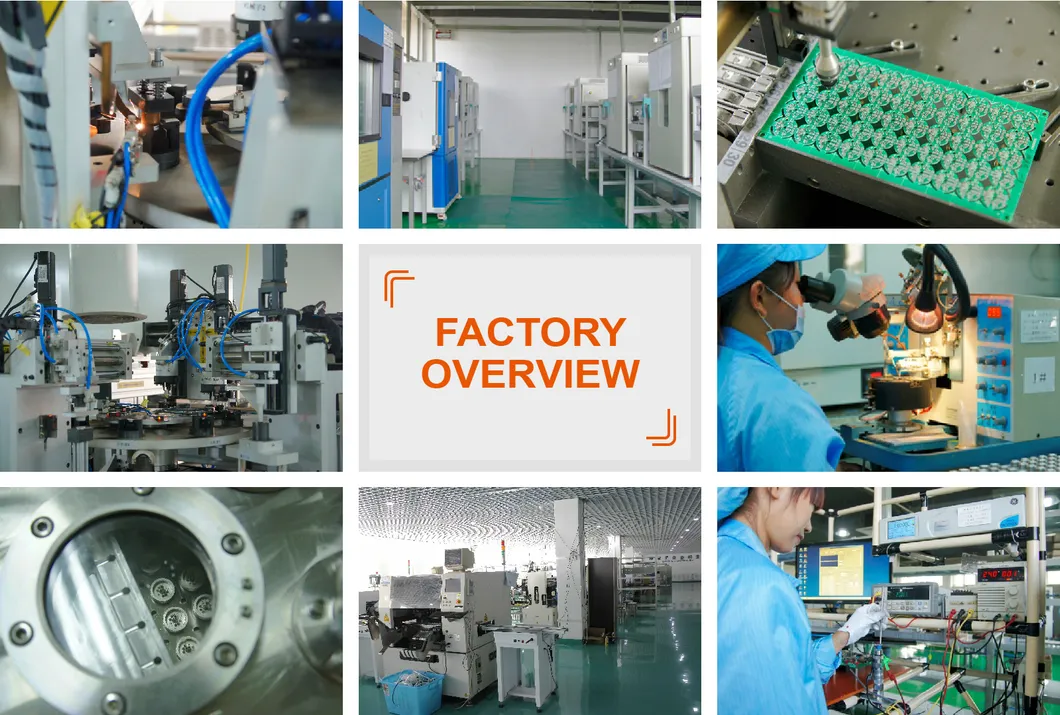

Company Profile
Preview
Preview
Preview
Certifications
Preview
Preview
FAQ:
Preview
Certifications
Name:SIL
Preview
Universal Pressure Transmitter for Booster Pumps and Air Compressors PCM390
$18 ~ $22.94
