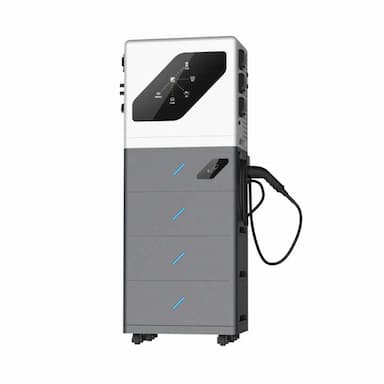

All-in-One 7kw Integrated Emergency Energy Storage System PV Storage EV Charging Power Floor-Mounted Charging Station

Preview

Basic Info.Product Description

Basic Info.

Place of Origin	Guangdong, China
Interface Standard	RS485/CAN/WiFi
Output Current	15A
Output Power	7kW
Input Voltage	150~ 500V
Purpose	for retrofit/upgrade
Condition	New
Model Number	ESSC-HY5-EV7-BAT5
Brand Name	TOPA/OEM
Product Name	Energy Storage System with EV Charger
Application	Back-up Power
Application1	Home Photovoltaic Solar Storage
Application2	Uninterruptible Power Supplies
Nominal Voltage(V)	220 / 230 / 240
Battery Capacity	5.12KWh*1
Protection	IP65 Protection
Inverter Voltage(W)	5000W
Max.PV Input (W)	7000W
Warranty	2 years
Selling Units:	Single item
Single package size:	XX cm
Single gross weight:	kg

Product Description

Key Features
1. Integrates photovoltaic inverter, energy storage, vehicle charging and power distribution.
2. Modular design, up to 6 battery modules can be connected in parallel.
3. Built-in DSP control, using SPWM modulation technology.
4. Easy to install and can be assembled independently within 20 minutes.
5. 24-hour real-time network monitoring.

Inverter
Max. Input Power
7000W
Nominal Grid Voltage
220V/230V/240V
Range of PV Input Voltage
150-500V
Nominal Grid Frequency
50/60Hz
Range of MPPT Operating Voltage
120-430V
Rated Power of Charging Grid
5000w
No. of MPPT
2
The Max. Apparent Power of Charging Gird
5500VA
Max. No. of Input String Per MPPT
1
Rated Power of Backup Power Supply
4500W
Max. Input Current Per MPPT
15/15A
UPS Function Entry Time
<10ms
Charging Pile
Battery
Rated Power
7000W
Cell
LiFePO4
Nominal Voltage
220V/230V/240V
Nominal Energy Per Battery Module
5.12kWh
Nominal Frequency
Nominal Grid Frequency
Expandable Number of Battery Module
6
Operation Method
Swiping card/APP/automaticlly start by insert the gun/set time reservation
Usable Battery Energy Range
5.12-30.75kWh
Output Charging Wire
AC output charging gun with a length wire of 5 meters
Battery Voltage Range
41.6-58.5V
Others
Protection Level
IP65
Communication Interface
RS485/CAN/WiFi
Cooling Method
Natural Cooling
Warranty
2 Years
Net Weight of Inverter
30kg
Inverter Size
645X557X370mm
Net Weight of Charging Pile
20kg
Charging Pile Size
650X270X370mm
Net Weight of Battery Module
55kg
Battery Module Size
585X270X370mm
Net Weight of Bottom Bracket
10kg（including casters）
Bottom Bracket Size
680X110X378mm

Considerate safe package for sea and air shipping

>>>>>>>>Contact us<<<<<<<<

Topa Technology Limited is a national high-tech enterprise specializing in R & D, production and sales of new energy lithium battery and system. Products are widely used in a variety of fields such as fire emergency light, electric tool, garden tool, vacuum cleaner, household appliances, low-speed vehicle, communication power supply, home energy storage, wind-solar-electricity grid and off-grid energy storage system, etc., Topa have obtained certificates such as U L, T U V, C B, C E, P S E, U N 38.3, M S D S, etc..
With the enterprise culture "customer and quality first, result-oriented", Topa has built strategic partnerships with well-known enterprises at home and abroad. Hope to gain more customer recognition through our unremitting efforts!

1. Is the battery used in the battery pack grade A?
Yes, we only use Grade A and Brand new cells inside.

2. Do you test and match the battery before installing the battery pack?
Yes, every cell will be tested capacity, IR, voltage to surely match
Voltage:The deviation less than 0.01V
Resistance:The deviation less than 0.1mΩ
Capacity: Tested and label the data on each cell

3. How do I store my batteries?
When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C～35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

4. What is the cycle life of the battery?
6000 cycle life @ 80% DOD

5. What's the warranty of your 48V/51.2V battery pack?
5 years warranty.

6. Do your batteries support series or parallel connection?
Our 48V battery packs support up to 16pcs in parallel, if you need series connection, please contact with our sales.
