1.5kw Isolated DCDC Converter Smart CAN Controlled 1500w Waterproof 96v 108v to 12v 110a DC/ DC Converter

Preview

Basic Info.Product Description

Basic Info.

Place of Origin	Hunan, China
Purpose	for replace/repair, for retrofit/upgrade
Condition	New
Model Number	96v 108v dcdc converters
Brand Name	Benbv
Application	Car ,Electric Vehicles,Truck,Bus,Cart
Warranty	1 Year
Input Volt range	73-137v
Output Voltage Current	12v/13.8v/14v 110A /140A
Can Communication Capable	With matching connectors
Output Over Volt Protection	protection threshold 16 ± 0.5V resume normal operation ≤ 14 ± 0.2V
Output Low Volt Protection	protection threshold 7 ± 1V, resume operation ≥ 9 ± 0.2V
Over Current Protection	Stop output when the output current exceeds the peak current
Over Temp Protection	Power reduction 100 ℃, protection shutdown at 110 ℃, self recovery
Short Circuit Protection	Yes ,Self Recovery
Packaging Details	Ready To Ship 1.5kw Isolated DCDC Converter Smart CAN Controlled 1500w Waterproof 72v to 12v 110a DC/ DC Converter IP67 Full Sealed CAN2.0 communication Capable Electric Vehicles Converters 1.5kw 1.8kw / High Efficiency Full sealed Input dc 55-97v to Output DC 12v 13.8v 14v 110A dc/dc converter/GB Car level Standard Power Converters 1800W 140A With Matching Connectors Charging Cable
Selling Units:	Single item
Single package size:	30X25X12 cm
Single gross weight:	5.000 kg

Product Description

Preview

Specification

This product is very popular and specialized in new energy automobile industry, please confirm the stock quantity with sales in advance before placing an order.

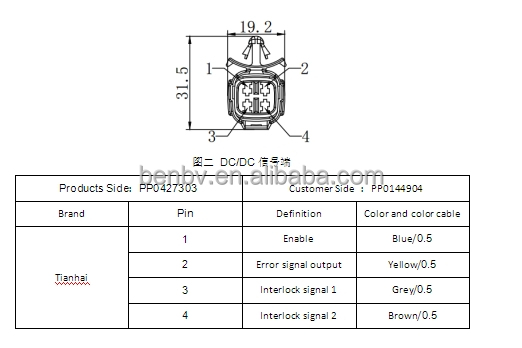

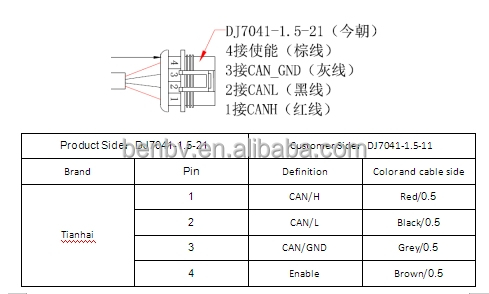

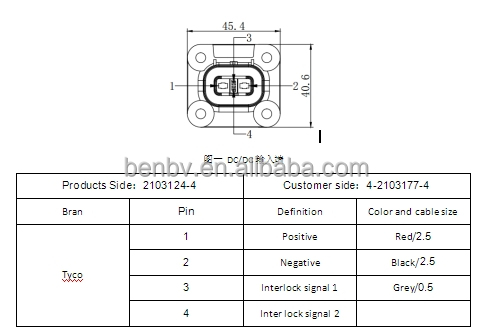

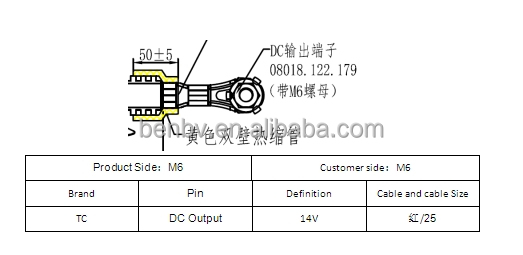

Schematic Diagram
