Product Description
Introduction:

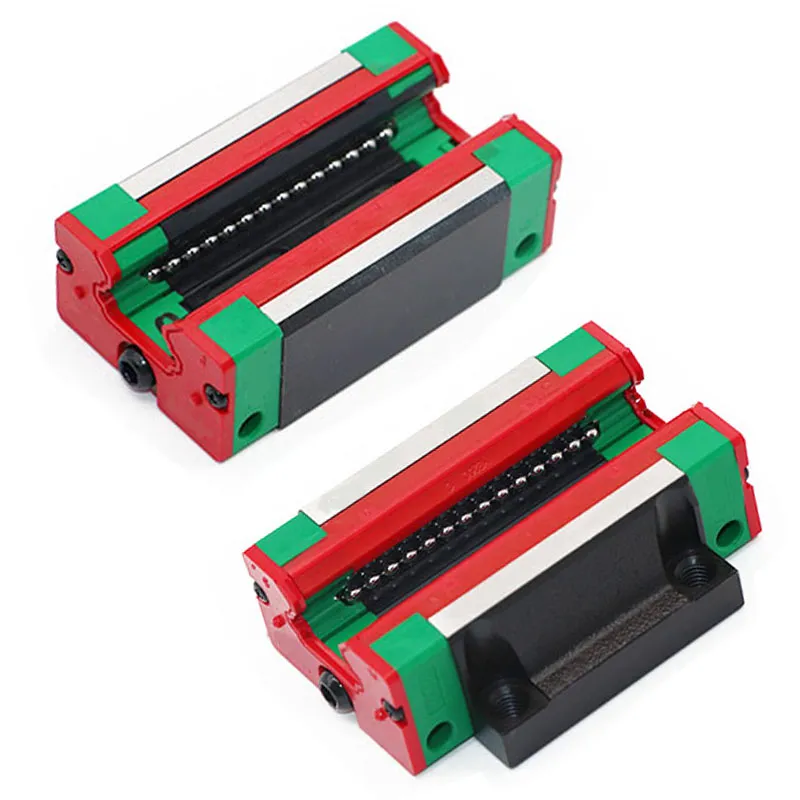

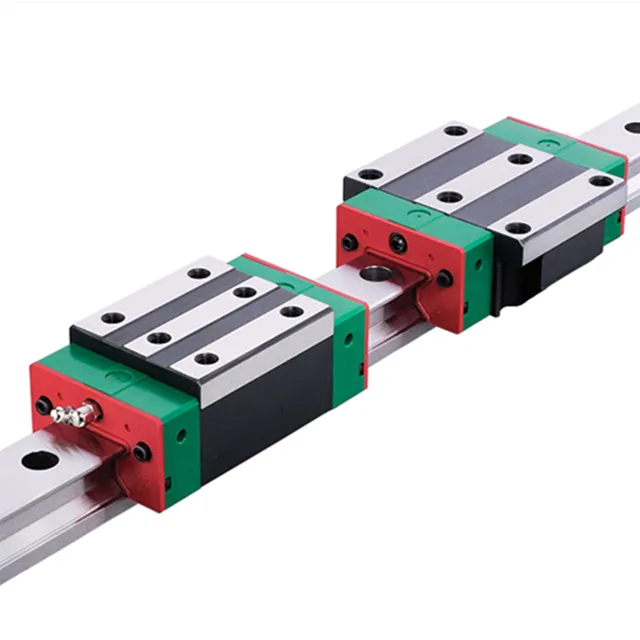

Linear guide is consisted of rail, block, rolling elements, retainer, recirculator, end seal etc. By using the rolling elements, such as balls or rollers between the rail and block, the linear guide can achieve high precision linear motion.Linear guide block is divied to flange type and square type without flange.or Seal type block, Standard type block, Double bearing type block, Short type block. Also,linear block is divided to high load capacity with standard block lenth and ultra high load capacity with longer block length.Catalogue of Linear Guideways:
1.HG SERIES IS A HIGH ASSEMBLED BALL LINEAR GUIDE RAIL;
2.EG SERIES IS A LOW ASSEMBLED BALL LINEAR GUIDE RAIL;
3.RG SERIES IS A LINEAR GUIDE WITH ROLLERS ROLLER TPYE BLOCK,WHICH CAN AFFORD HIGH LOAD;
4.MGN/MGW SERIES IS A SMALL/MINIATURE LINEAR GUIDE RAIL.Structure of Linear Guideways:
1.Rolling cycle system: slider, guide rail, end cover, steel ball, ball holder;
2.Lubrication system: oil nozzle and tubing joint;
3.Dust-proof system: oil scraper, negative dust seal dust-proof sheet, guide rail bolt cover, metal scrap
Advantages of Linear Guideways:
1.Easy to install ,direct locking with screw and worktable;
2.Design of the ball arrange to upgrade weight bearing capacity;
3.Long life with high speed,high accuracy and linear motion;
4.High speed, low noise;
5.High rigidity ,multiple precision
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Retail, Printing Shops, Construction works , Advertising Company, Others.Product Parameters
Regular specifications as follows table:

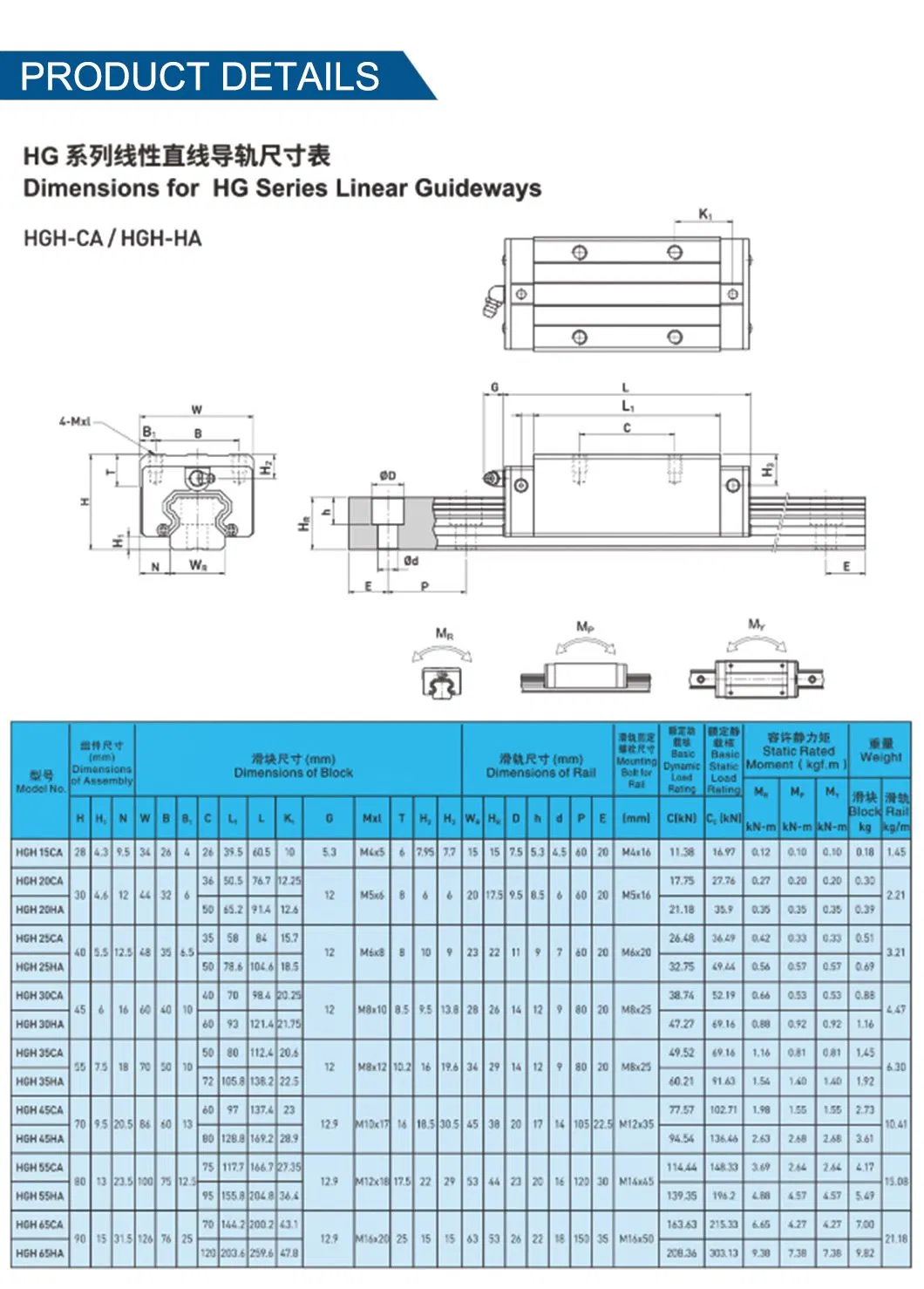

HGHCA/HA Series
HGLCA/HA Series

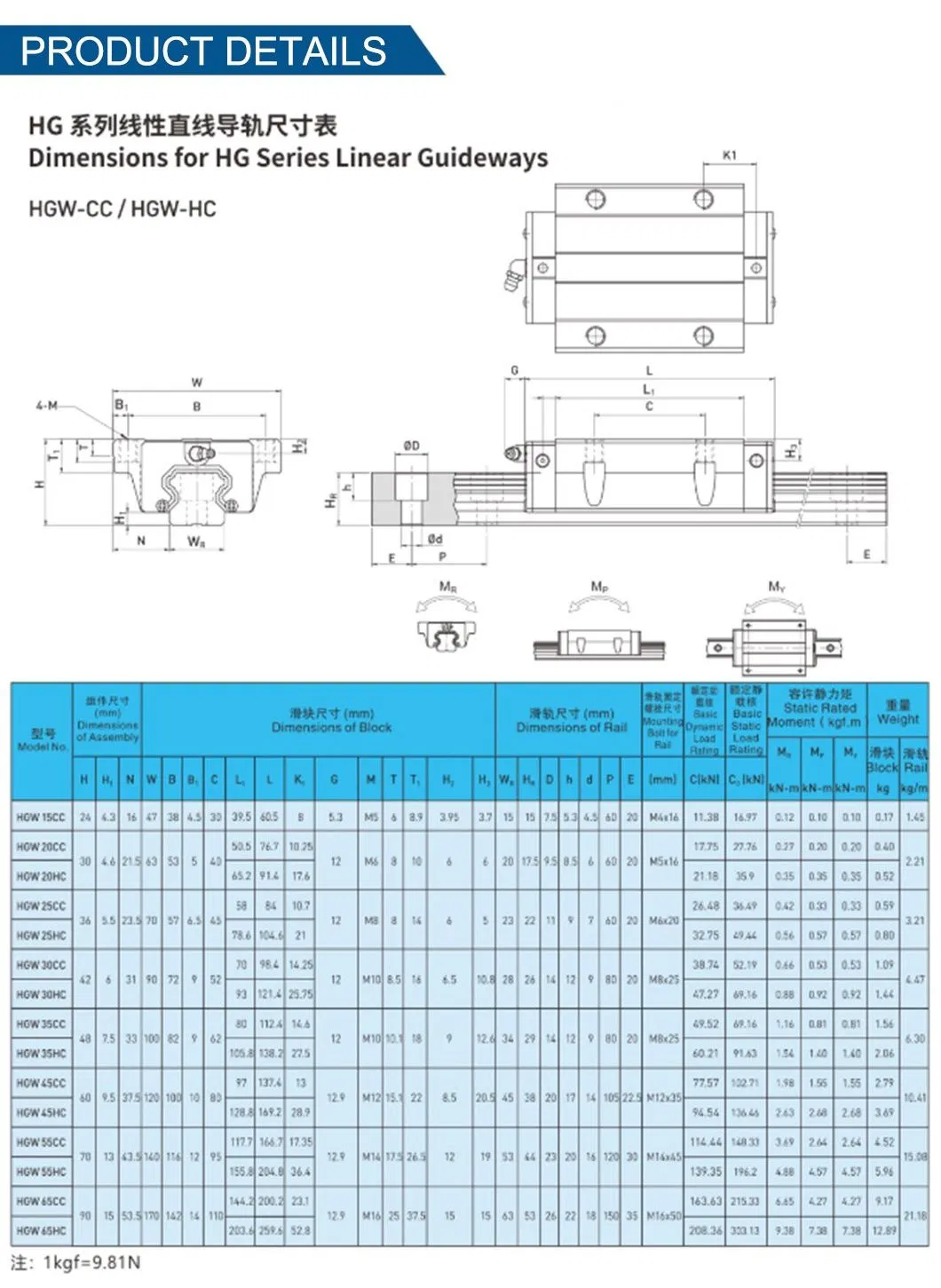

HGWCC/HC Series
HGH15CA/HGH15HA
HGL15CA/HGL15HA
HGW15CC/HGW15HC
HGH20CA/HGH20HA
HGL25CA/HGL25HA
HGW20CC/HGW20HC
HGH25CA/HGH25HA
HGL30CA/HGL30HA
HGW25CC/HGW25HC
HGH30CA/HGH30HA
HGL35CA/HGL35HA
HGW30CC/HGW30HC
HGH35CA/HGH35HA
HGL45CA/HGL45HA
HGW35CC/HGW35HC
HGH45CA/HGH45HA
HGL55CA/HGL55HA
HGW45CC/HGW45HC
HGH55CA/HGH55HA
HGW55CC/HGW55HC
HGH65CA/HGH65HA
HGW65CC/HGW65HC

Our Advantages

Q1: Are you a manufacturer?
Yes, we have been in manufacturing and providing excellent linear motion parts for customers more than 12 years.Q2: How long could you prepare samples?
Ans:Normally 1days if we have the sample onhand.lf customized one,about a week around.Q3: How about batch order production?
Ans: Normally 30days or so for one container.Q4: Do you inspect the finished products?
Ans:Yes, we will do inspection according to lSO standard and ruled by our QC staff.Q5: How do you ship the goods?
Ans: By sea, by air by truck or by courier (UPS/DHL/Fedex/TNT etc.)
Q6: What advantage do you have?
Ans:
1.We have professional engineers,customers can expect the best possible advice and support.2.Related responsible team to answer all your questions and follow-up process for you and do update in time.3.Strict and standard process control according to Quality Management System.4.Documents support on products, we have strong technical data sheet to support our products, which could make you easier to know our products.
