Features of H. B Series Gear Units/ Gear speed reducer/ Gear Motor/ Gearbox:
1. H. B series gear units adopt currency layout and may transform into special reducer according to customer's requirement.

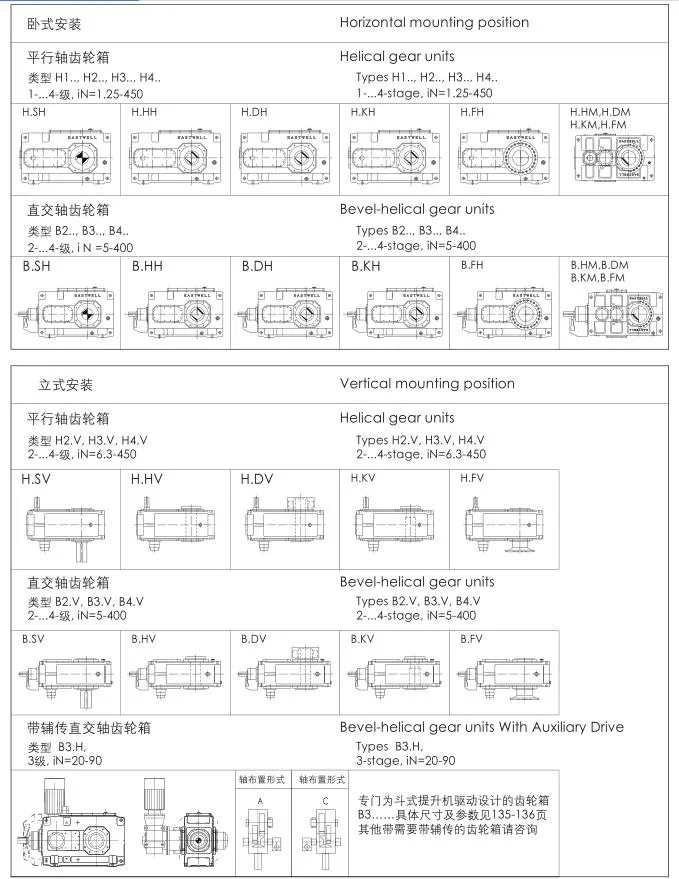

2. The housing of one size can realize parallel shaft, right-angle shaft modes and horizontal, vertical mounting modes. Variety of components is reducible; The number of reducer's mode is augmentable.
3. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficiently.

Characteristic advantage
1.It adopts new modular design and is convenient for mass production; combining the flexible installation site and varied output types, it can meet the demands of most applications and installation sites;
2.It adopts various cooling and lubricating modes to ensure reliable meet heat dissipation in different environments, additionally, varied sealing modes can also be applied.
Specification parameter
Installation:
horizontal and vertical
Drive Grade:
Single-stage, 2, 3 and 4-stage drives are available
Output Torque:
3~900kNm
Drive ratio:
1.25 ~450
Efficiency:
Single-stage 98%, 2-stage 96%, 3-stage 94%, 4-stage 92%
Industrial Application
Power Plant Equipment
Metallurgical Industry
Metal Forming Machinery
Petrochemical Industry
Mining Machine
Hoisting Machinery
Construction Industry
Environmental Protection Industry
Cable Industry
Food Machinery
Certificates

1. Q: Can you make as per custom drawing?
A: Yes, we offer customized service for customers.
2. Q: Are you a
factory or trading company?
A. We are manufacturer in Shanghai China.
3. Q: What's your MOQ?
A: One piece.
4. Q: What's your production time?
A: 7-15 working days after receiving payment.
5. Q: What's your payment terms?
A: T/T, 30% payment in advance, 70% balance payment should be paid before shipping.
6. Q: What's your package?
A: In wooden box packaging.
Company Information:
Shanghai EASTWELL Gear Reducer Co.,Ltd., former a joint venture invested by is a Shanghai EAST PUMP GROUP and Well Company of America.We are a large professional manufacturer &exporter of various
gear reducers and specialize in the gear reducers area in China for 20 years. EASTWELL has excellent R&D team,top-ranking production and test equipment.We have strong power in the developing and manufacturing the standard type as well as the customized type gear reducer for
customers.We make and supply 6 series of speed reducer as follows:EWK series helical-bevel gear reducers,EWR series helical gear reducers,EWF series helical gear reducers,EWS series helical-worm gear reducersHB series gearboxes,P series planetary gear reducers,etc.Our products have been exporting to many countries and regions, including but not limited Argentina , Brazil, Mexico, Columbia , Ecuador , USA, South Korea, Vietnam, Indonesia, Georgia, South Africa, China HK, China Taiwai, Welcome to send enquiry and visit us in Shanghai.
