HRC 3p+N 160A 400A 630A Fuse Holder

Preview

Basic Info.Product DescriptionCertifications

Basic Info.

Model NO.	TCF1710
Type	Panel Installed Fuse Holder
Shape	Square
Size of Fuse	Medium Fuse Holder
Form of Installation	Insurance Piece Holder
Environmental Protection	Environmental Protection Fuse Holder
Execution Standard	European Standard
Fusing Speed	F
Brand	Esnew
Standard	IEC60269
Fuse Base	Fiberglass Insulation Panel
Fuse Contact	Copper
Certificate	CE
Transport Package	1 PCS Per Box
Trademark	TELEHAN
Origin	China
HS Code	8536100000
Production Capacity	2000 PCS Per Month
Package Size	25.00cm * 20.00cm * 15.00cm
Package Gross Weight	1.500kg
Package Size	25.00cm * 20.00cm * 15.00cm
Package Gross Weight	1.500kg

Product Description

Preview

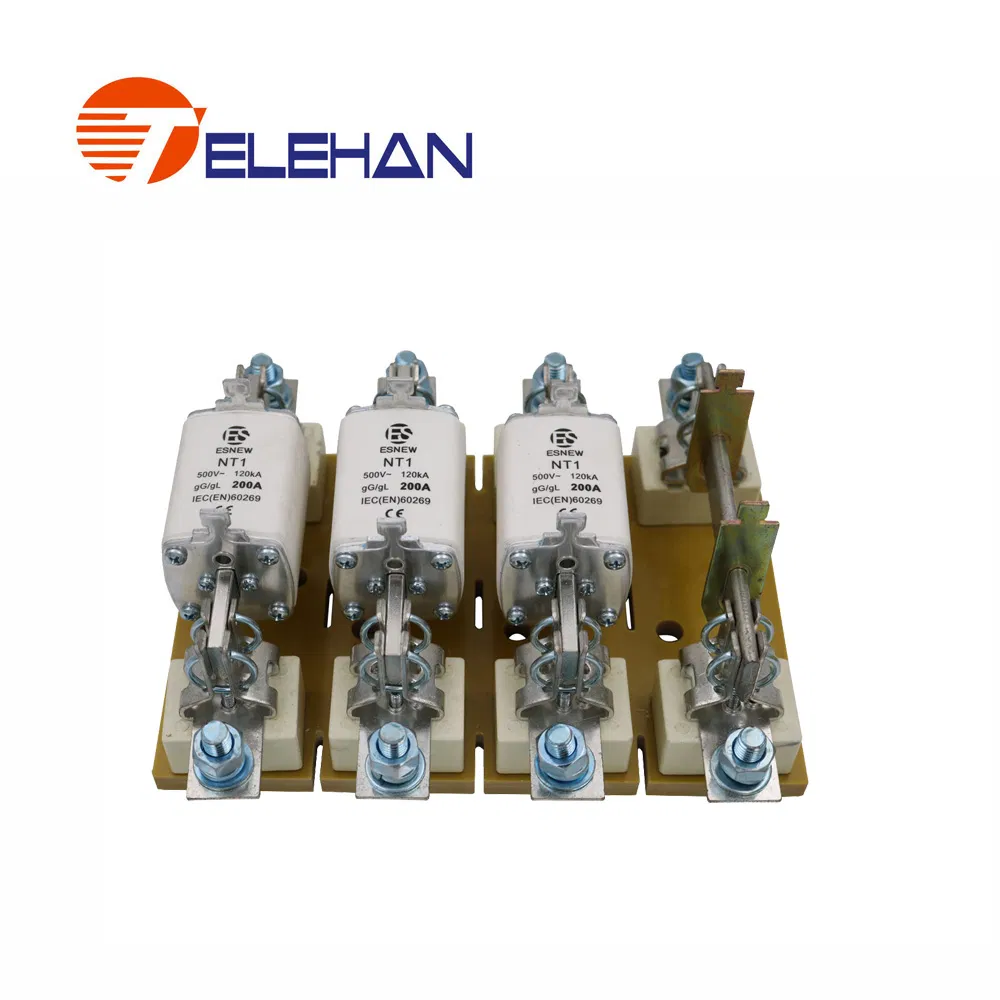

INSULATED FUSE -BASE(FUSE HOLDER)

Preview

The HRC fuse base is our newest design and mainly used the low voltage system below 690V for H.R.C fuse link in the system of 3 phase plus Neutral 690V below 50Hz according to IEC60269.
Parameters:
Nominal Voltage: 415V 3Ph+N
System Highest Voltage: 450V 3Ph+N
System Frequency: 50Hz
Method of Earthing: Solidly earthed neutral at substation
System fault level: 50KA
Service Condition:
Annual Average ambient temperature: 40ºC
Maximum Ambient temperature: 55ºC
Maximum Relative humidity: 90%
Operation Altitude: 1000m below from MSL
HRC Fuse Link:
Size 1:
80, 100, 125, 160, 200
Size 2: 125, 160, 200, 250, 315
Size 2: 315, 400, 500, 630

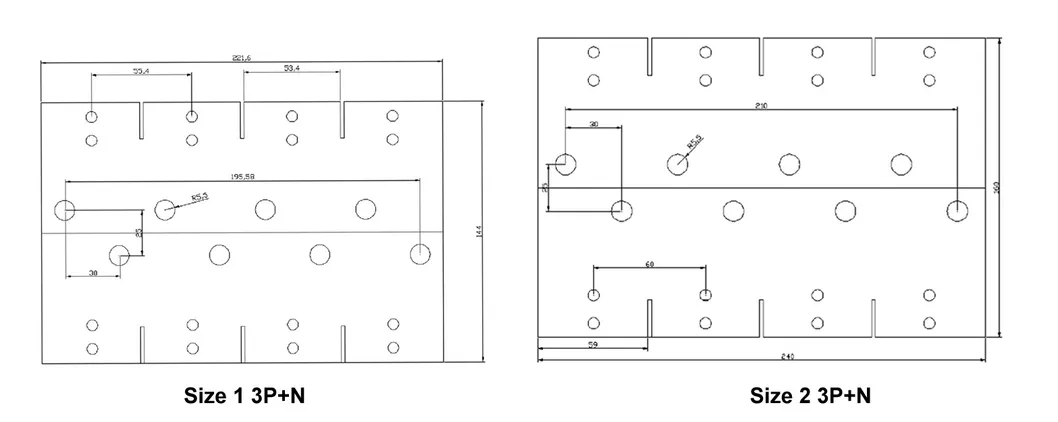

Drawing:

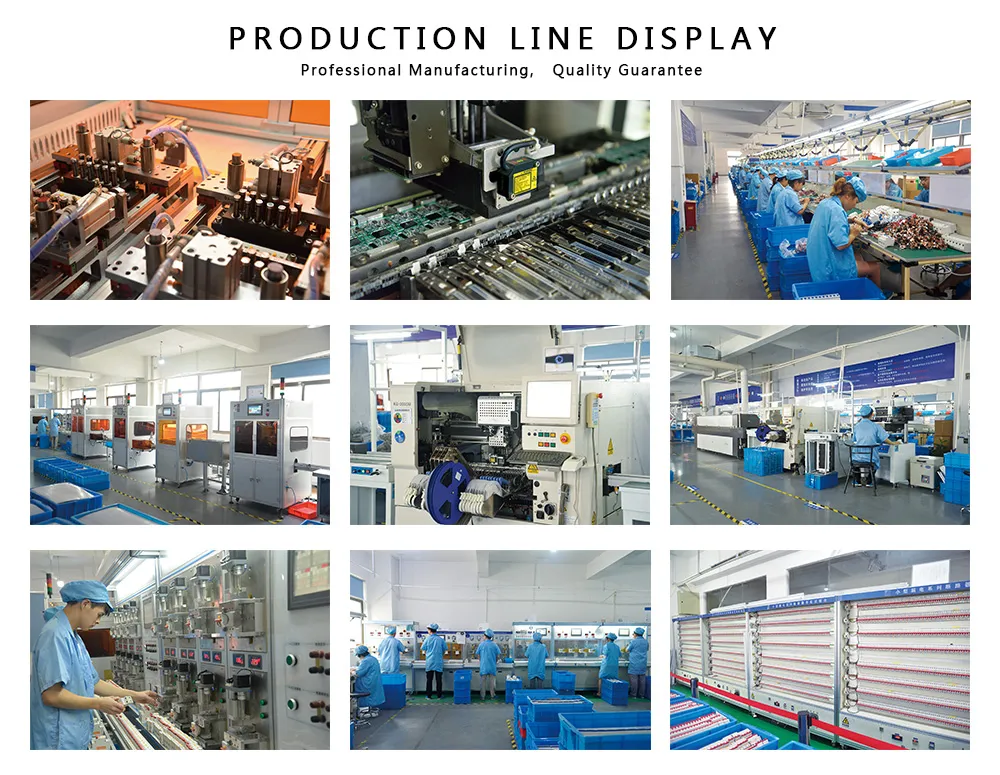

Produnction Line Display:
Shippment
and Payment:
Brand Strategy:
