EC11 Metal Shaft Incremental Rotary Encoder With Push Switch
Product Description

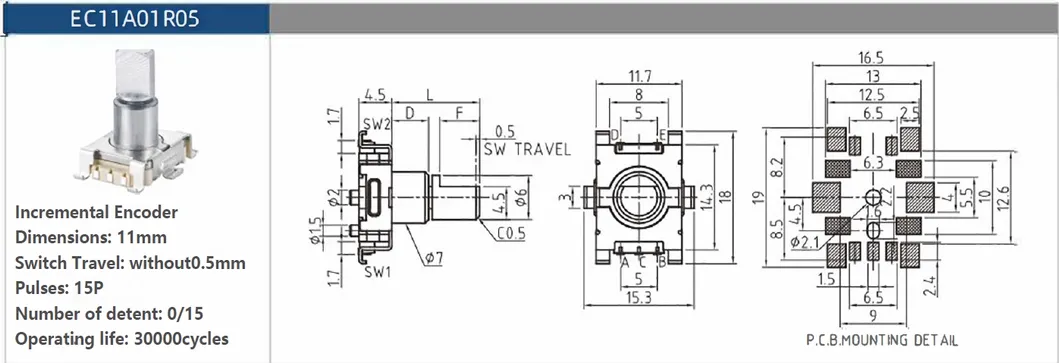

EC11 Product Specifications
EC11 ProducEC11 Product Specificationst Specifications
1.Electrical
Characteristics
Rated voltage:DC 5V
Resolution:15/20pulses/360°
Insulation
resistance: 100MΩ Min at DC 250V
Dielectric
strength:
1 minute at AC300V
Contact resistance:
1ΩMax
2.Mechanical Characteristics
Total ratational angle:
360°(Endless)
Detent torque: 2~15mN.m.(20~150gf.cm)
Operation
fore of switch:
500±200gf
Travel of switch:
0.5±0.3 mm
Shaft wobble:
0.7*L/30mm p-p Max(L: mounting height)
3.Endurance Characteristics
Rotational
life:
30,000 cycles
Push-life: 30,000 cycles
Operating temperature range
:-30ºC to+80ºC
Storage temperature range
: -40ºC to+85ºC

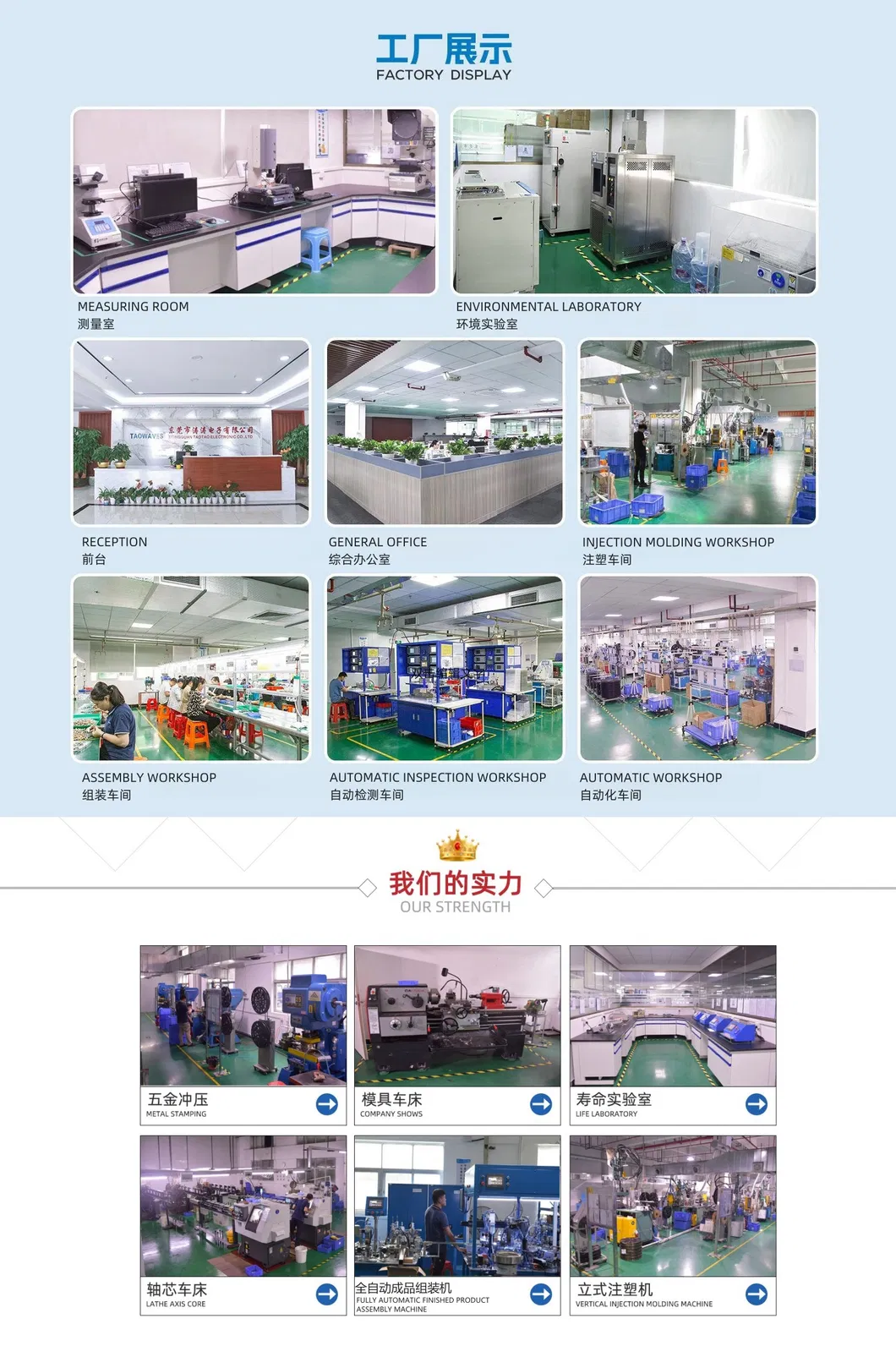

Our Factory

Application:

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
