We supply
42mm dia telescoping tubular linear actuator for skylight window opener
.we devoted ourselves
to kinds of linear actuators for many years,covering most of Europe
and the Americas
market.We are expecting become your long term partner in china.
Dear customer: Before placing order pls kindly tell us your detailed requirement such as
Load,
Stroke , Speed,Voltage
or where it'll be used,to be sure that the product will be workable for you.

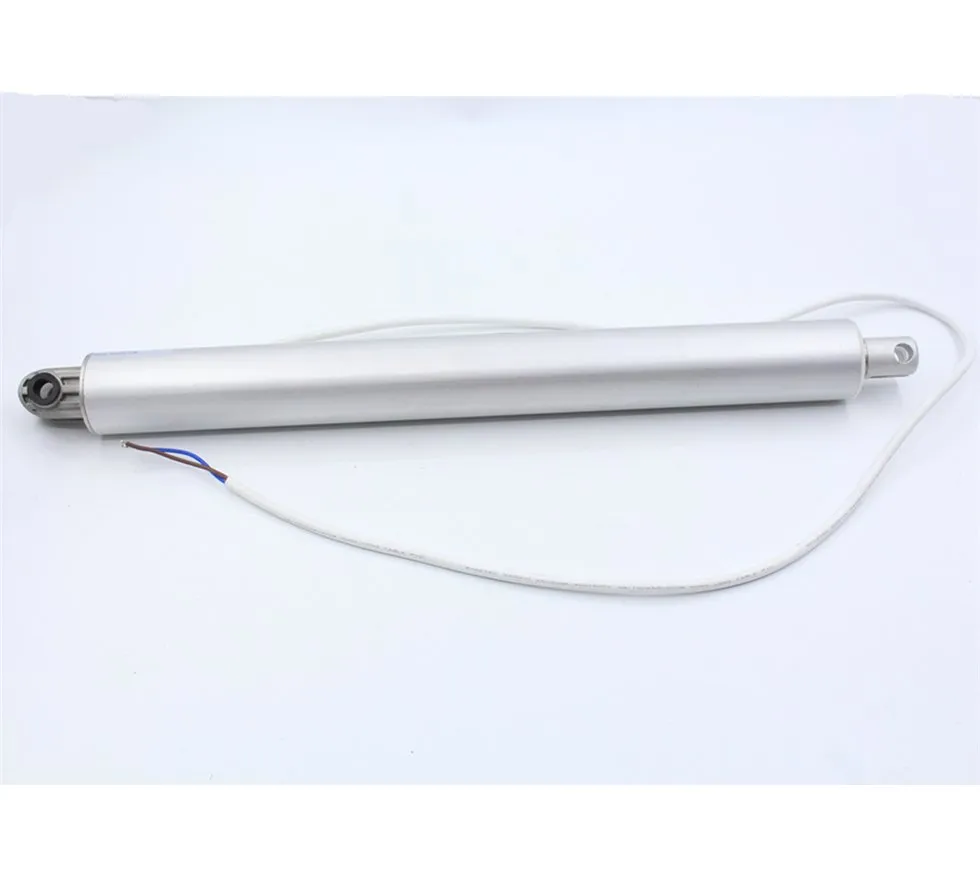

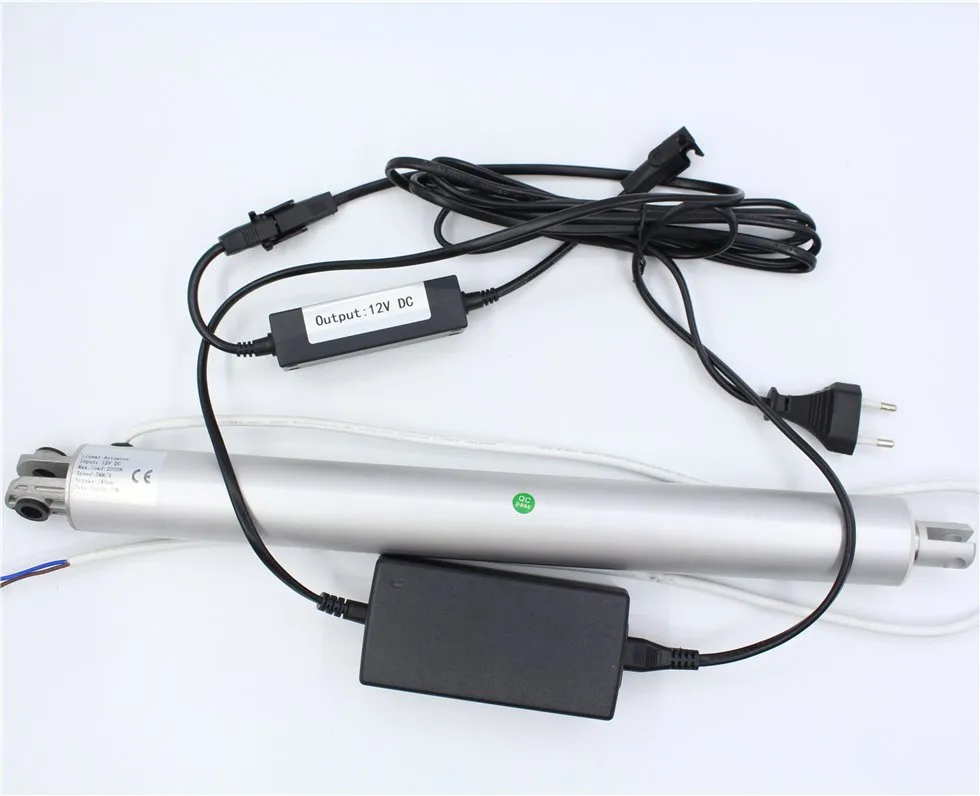

42mm dia telescoping tubular linear actuator for skylight window opener
Product Parameters
Drive voltage: 12VDC
24VDC
(it can be choosed)
Maximum load: 200KG/2000N
Ambient temperature :-20
to +45 degree
Low noise design, noise levels below 52 db
Built-in
integral limit switches(not adjustable after leaving factory, When completed stroke, linear actuator automatically stops!)
Protection degree: IP65
Min.install size:
stroke+265mm
Standard Stroke: 25/50/100/150/200/250/300mm,could produce as your requirement.Product Color: silver
Duty cycle:10%, work 2 minutes need to rest 18minutes.Speed: 8-15mm/s
Drawing(mm)
of 42mm dia telescoping tubular linear actuator for skylight window opener
Graph of Relation
for
linear actuator Mounting Brackets
could be matached

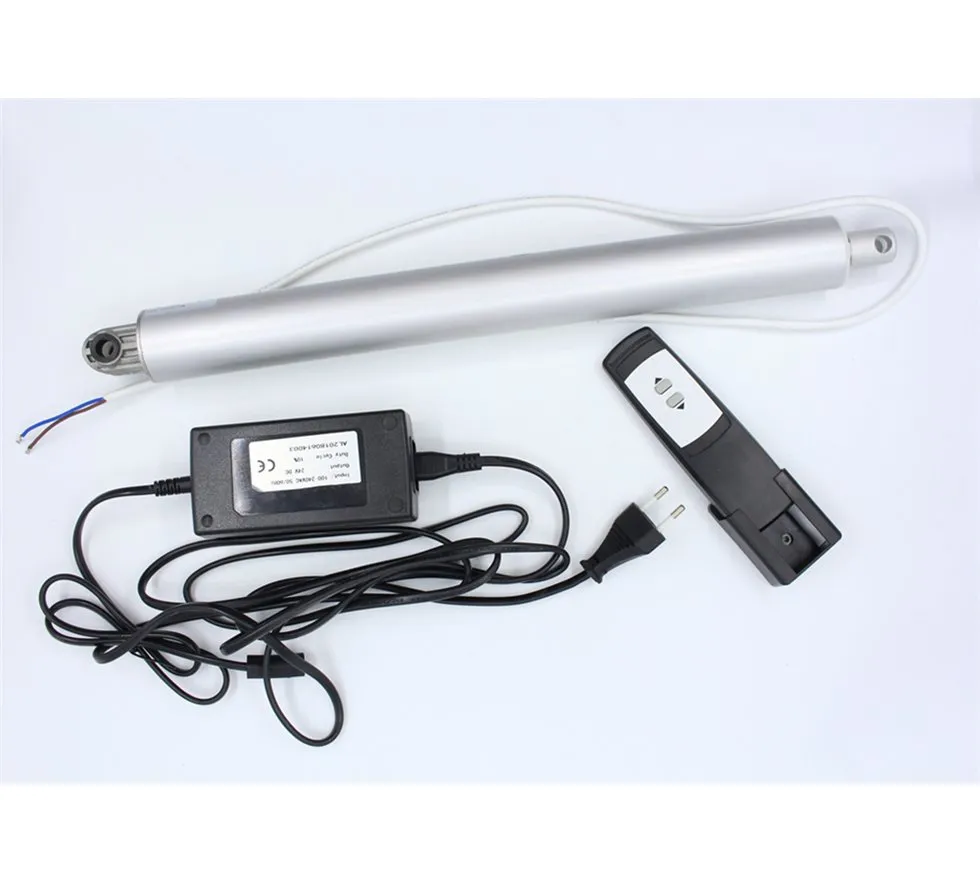

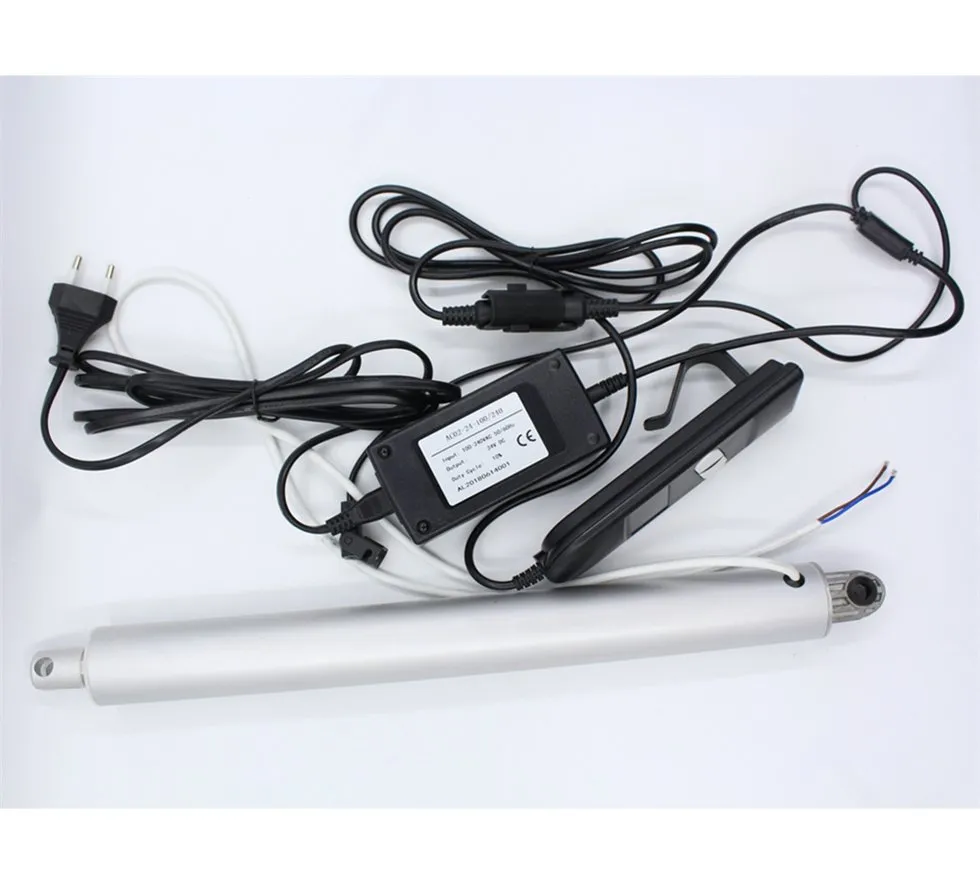

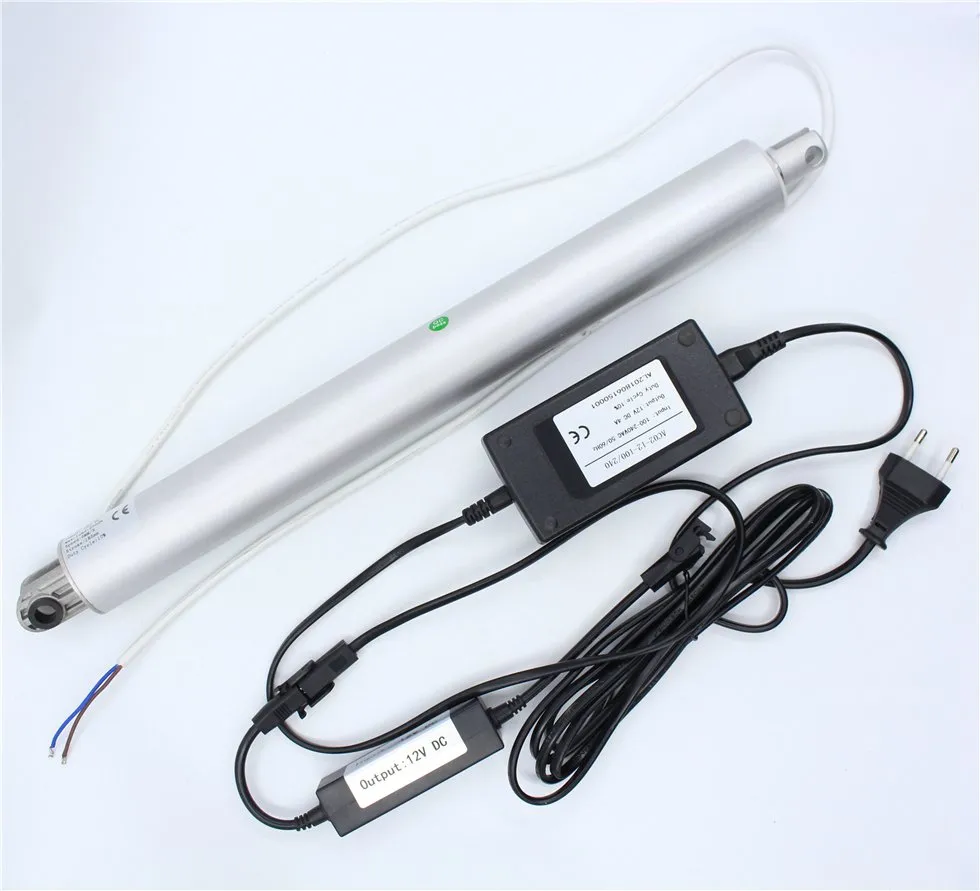

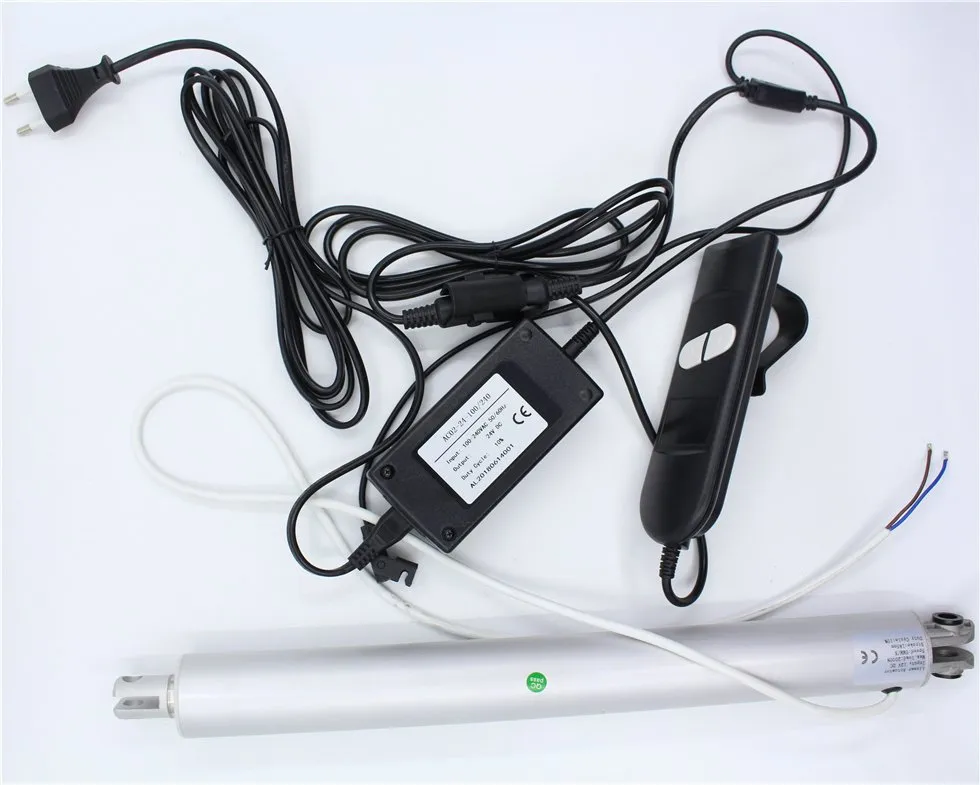

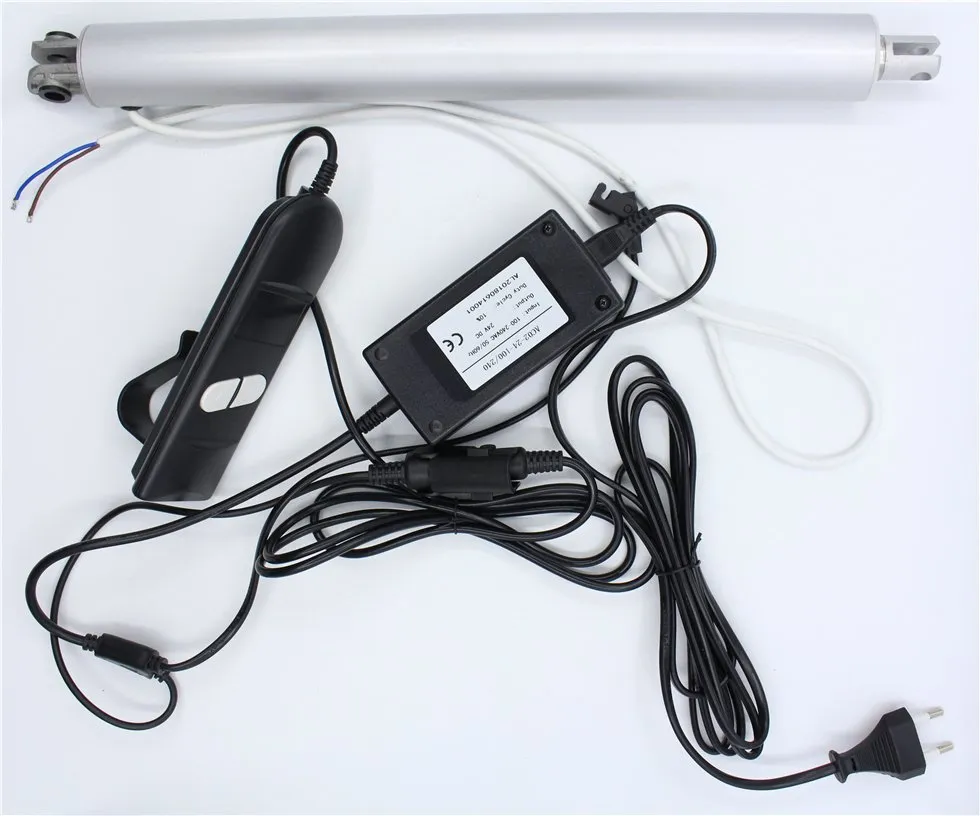

Also handset (both wireless and with wire type)and controller could be provided
together with linear actuators, if you need them pls freely contact us for details.

The linear actuators could be used for as below waysWINDOW OPENERELECTRIC FUNITUREELECTRIC DENTAL CHAIRELECTRIC TRACTION TABLEELECTRIC SOFAELECTRIC NURSING BEDMEDICAL BEDMASSAGE CHAIRELECTRIC SANITATION VEHICLESOLAR TRACKER MOUNTINGLCD TV BRACKETFITTING EQUIPMENTELECTRICALLY LEISURE SOFAELECTRIC ELEVATING STAGE
ELECTRIC OPERATING TABLE
