Mounting Brackets
发布时间:2024年6月6日 05:15
Author思考者
Image 0
Brand Name:KIPP Place of Origin:Germany Related Keywords:Mounting brackets

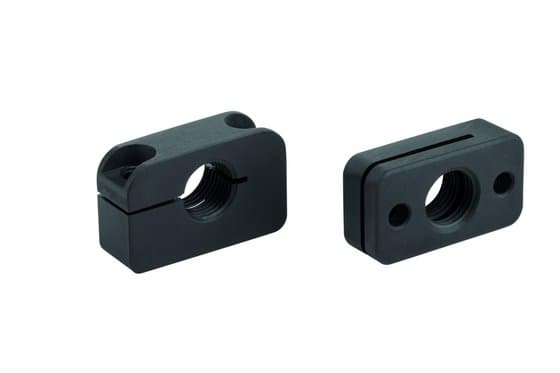

The mounting brackets from KIPP are a user-friendly assembly aid for many products, including indexing plungers, cam-action indexing plungers and spring plungers. The wide variety of different standard or fine threads guarantees that components can be suitably attached. What's more, the clamping slots fix the component in place when screwing it to the mounting bracket, which makes it easier to use. The mounting brackets can be combined with many KIPP operating parts. Lightweight aluminium and the compact design make assembly easier even where space is limited.

KIPP supplies the mounting brackets in two variations each: in Form A the fastening hole runs parallel to the thread whereas in Form B the hole runs perpendicular to the thread. The mounting bracket is attached to the corresponding boreholes with ISO 4762 socket head screws. All mounting brackets are matt black anodized (aluminium) or made of steel and are supplied ex works with standard or fine threads from M6 to M20 x 1.5.
Image 3
